Visualize Cortex REST API Usage with Streamlit + Superset MCP

Priya Joseph
fork repo

Overview

Duration: 2

This quickstart builds a standalone Streamlit app that visualizes SNOWFLAKE.ACCOUNT_USAGE.CORTEX_REST_API_USAGE_HISTORY and mirrors the same dashboard into Apache Superset through its MCP server. It is the Streamlit + Superset companion to Cortex REST API Usage Visualization (which uses a static Vega-Lite HTML page).

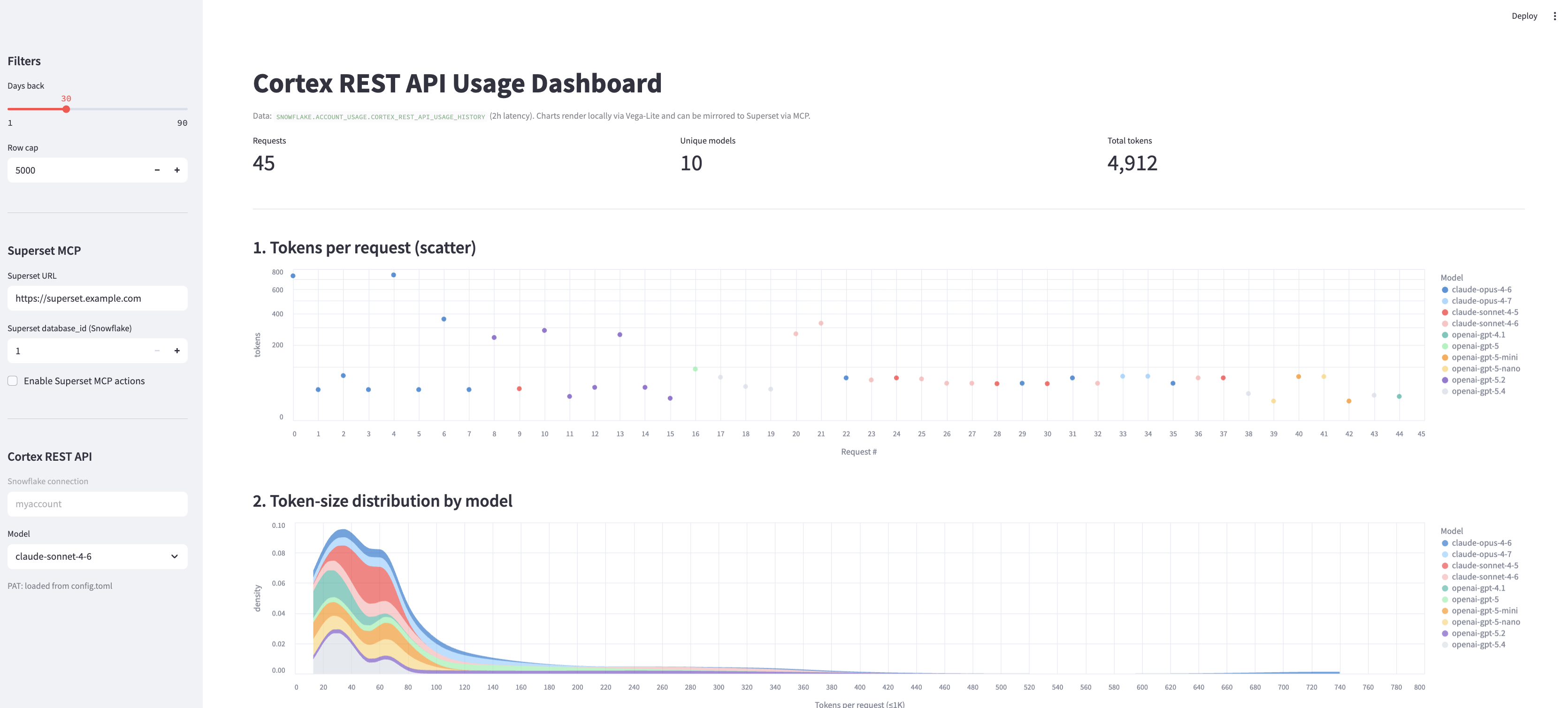

Cortex REST API Usage Dashboard — header, KPIs, and the first two charts

You get three things in one app:

  1. Local rendering — 5 interactive Vega-Lite charts drawn directly in Streamlit (scatter, density, circle plot, trellis dot plot, interactive multi-line).
  2. Superset mirror — superset_create_chart / superset_create_dashboard MCP payloads, ready for a Cortex Code session to execute.
  3. LLM-as-config-generator — a Cortex REST API call that translates a natural-language chart request into a Superset params JSON.

Prerequisites

  • A Snowflake account with access to SNOWFLAKE.ACCOUNT_USAGE (requires IMPORTED PRIVILEGES ON DATABASE SNOWFLAKE on the running role)
  • A warehouse (e.g., CORTEX_USAGE_WH — the default on the myaccount connection)
  • Active Cortex REST API usage in the account (rows in CORTEX_REST_API_USAGE_HISTORY)
  • An Apache Superset instance (self-hosted or Preset.io) — only needed for the Superset mirror step
  • A Superset MCP server reachable over HTTP (for example apache-superset-mcp or a Preset-managed endpoint)
  • Cortex Code CLI installed locally (for registering the Superset MCP server)

What You'll Learn

  • How to query CORTEX_REST_API_USAGE_HISTORY from Streamlit
  • How to render 5 Vega-Lite charts using st.vega_lite_chart — the Streamlit equivalent of the original HTML dashboard
  • How to structure superset_create_chart payloads that mirror each Vega-Lite chart
  • How to register a Superset MCP server with Cortex Code and call its tools
  • How to use Cortex REST API (claude-sonnet-4-6 or openai-gpt-5.x) to auto-generate Superset chart configs from a user prompt

What You'll Build

  • A single streamlit_app.py that runs in Streamlit in Snowflake (SiS) or locally
  • A reusable mapping from Vega-Lite chart types to Superset viz_type values
  • A prompt template that coerces an LLM into returning a valid Superset params JSON

Chart Mapping: Vega-Lite → Superset

Duration: 2

The original Vega-Lite dashboard has 5 charts. Each one maps cleanly to a Superset visualization type:

#Chart IntentVega-Lite markSuperset viz_typeKey Fields
1Tokens per requestcircle (scatter)scatterx=request_seq, y=tokens, color=model_name
2Token-size distributionarea (density)dist_barmetrics=[count], groupby=[model_name]
3Daily usage by modelcircle (sized)heatmapx=day, y=model_name, metric=SUM(tokens)
4Per-request tokens facetedcircle + row facetdot_plotx=tokens, facet=model_name, y=day
5Cumulative tokens over timeline + pointlinex=day, metric=CUMSUM(tokens), series=model

Set Up Your Snowflake Role

Duration: 1

The Streamlit app runs under the role that opens the Snowpark session. That role must be able to read SNOWFLAKE.ACCOUNT_USAGE.

-- Run as ACCOUNTADMIN (or a role with MANAGE GRANTS)
GRANT IMPORTED PRIVILEGES ON DATABASE SNOWFLAKE  TO ROLE CORTEX_USAGE_ROLE;
GRANT USAGE ON WAREHOUSE CORTEX_USAGE_WH TO ROLE CORTEX_USAGE_ROLE;

Verify the usage view is populated (note the 2-hour latency):

SELECT COUNT(*) AS rows_30d,
       MIN(start_time) AS first_seen,
       MAX(start_time) AS last_seen
FROM   SNOWFLAKE.ACCOUNT_USAGE.CORTEX_REST_API_USAGE_HISTORY
WHERE  start_time >= DATEADD(day, -30, CURRENT_TIMESTAMP());

Deploy the Streamlit App

Duration: 3

You have two equivalent deployment paths.

Option A — Streamlit in Snowflake (recommended)

  1. In Snowsight, open Projects → Streamlit → + Streamlit App.
  2. Pick a database/schema (e.g., CORTEX_DEMO.PUBLIC) and the CORTEX_USAGE_WH warehouse.
  3. Paste the contents of streamlit_app.py into the editor.
  4. Click Edit environment and paste environment.yml (streamlit, pandas, requests, altair, snowflake-snowpark-python).
  5. Click Run.

The get_active_session() branch picks up the SiS session automatically.

Option B — Local run

pip install streamlit snowflake-snowpark-python pandas requests altair tomli
export SNOWFLAKE_CONNECTION_NAME=myaccount        # name from ~/.snowflake/config.toml
export SNOWFLAKE_WAREHOUSE=CORTEX_USAGE_WH
streamlit run streamlit_app.py

The Session.builder.configs({"connection_name": ...}).create() branch handles local auth, and the app issues USE WAREHOUSE $SNOWFLAKE_WAREHOUSE on startup. The PAT for the Cortex REST API call is read automatically from ~/.snowflake/config.toml under [connections.<name>].password — no separate env var needed.

Understand the 5 Charts

Duration: 3

Each chart uses st.vega_lite_chart(df, spec) with a spec that mirrors the original HTML guide.

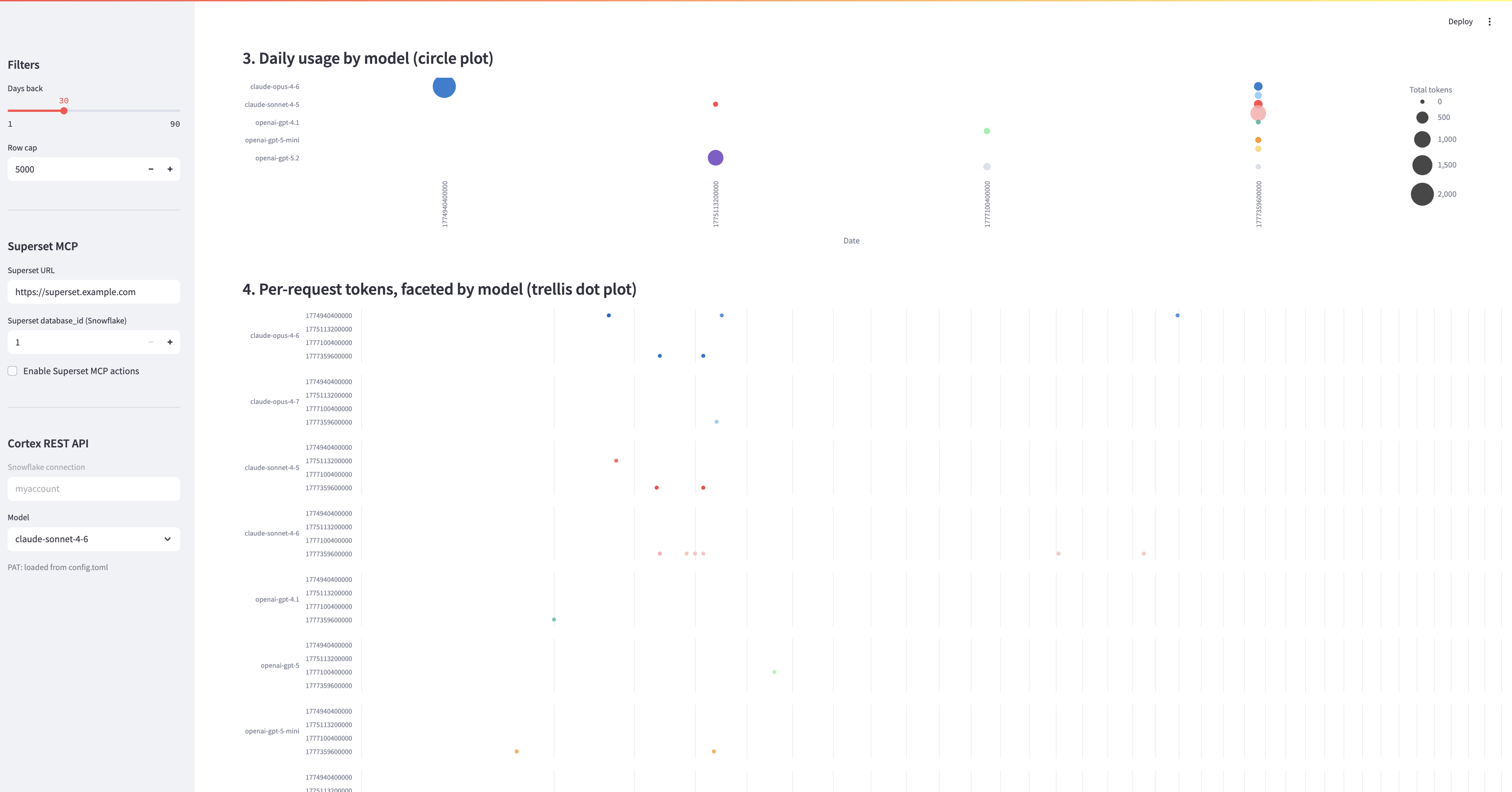

Charts 3 (circle plot — date × model, sized by SUM(tokens)) and 4 (trellis dot plot — one facet row per model)

1. Scatter — tokens per request

st.vega_lite_chart(scatter_df, {
  "mark": {"type": "circle", "opacity": 0.7, "size": 60},
  "encoding": {
    "x": {"field": "request_seq", "type": "quantitative"},
    "y": {"field": "tokens", "type": "quantitative", "scale": {"type": "sqrt"}},
    "color": {"field": "model_name", "type": "nominal"}
  }
})

2. Stacked density — token sizes by model

Uses Vega's built-in density transform. Cap at tokens <= 1000 so a few large outliers do not flatten the curve.

3. Circle plot — date × model, sized by SUM(tokens)

Pre-aggregate in pandas (groupby(["day","model_name"])) so the encoding stays simple.

4. Trellis dot plot — one facet row per model

Uses encoding.row to stack per-model panels.

5. Interactive multi-line — cumulative tokens

Compute cumsum per model in pandas, then let Vega render with point: true for hover.

Register the Superset MCP Server

Duration: 2

Register your Superset MCP endpoint with Cortex Code so a CLI session (or another MCP client) can call its tools:

cortex mcp add superset https://superset.example.com/api/v1/mcp --transport http
cortex mcp list

In the Cortex Code session, ask it to enumerate the tools the Superset MCP server exposes. Typical names include superset_list_databases, superset_create_dataset, superset_create_chart, superset_create_dashboard, superset_add_chart_to_dashboard, and superset_get_dashboard_embed_token — exact names depend on your MCP implementation.

Inside Superset, connect the Snowflake account once (SQLAlchemy URI, using a dedicated service role with IMPORTED PRIVILEGES ON DATABASE SNOWFLAKE). Note the resulting database_id — the Streamlit app exposes a sidebar field for it.

Mirror the Dashboard to Superset via MCP

Duration: 3

The Streamlit app prints the 5 chart payloads in expanders under "Mirror to Superset via MCP". A Cortex Code session can iterate over them:

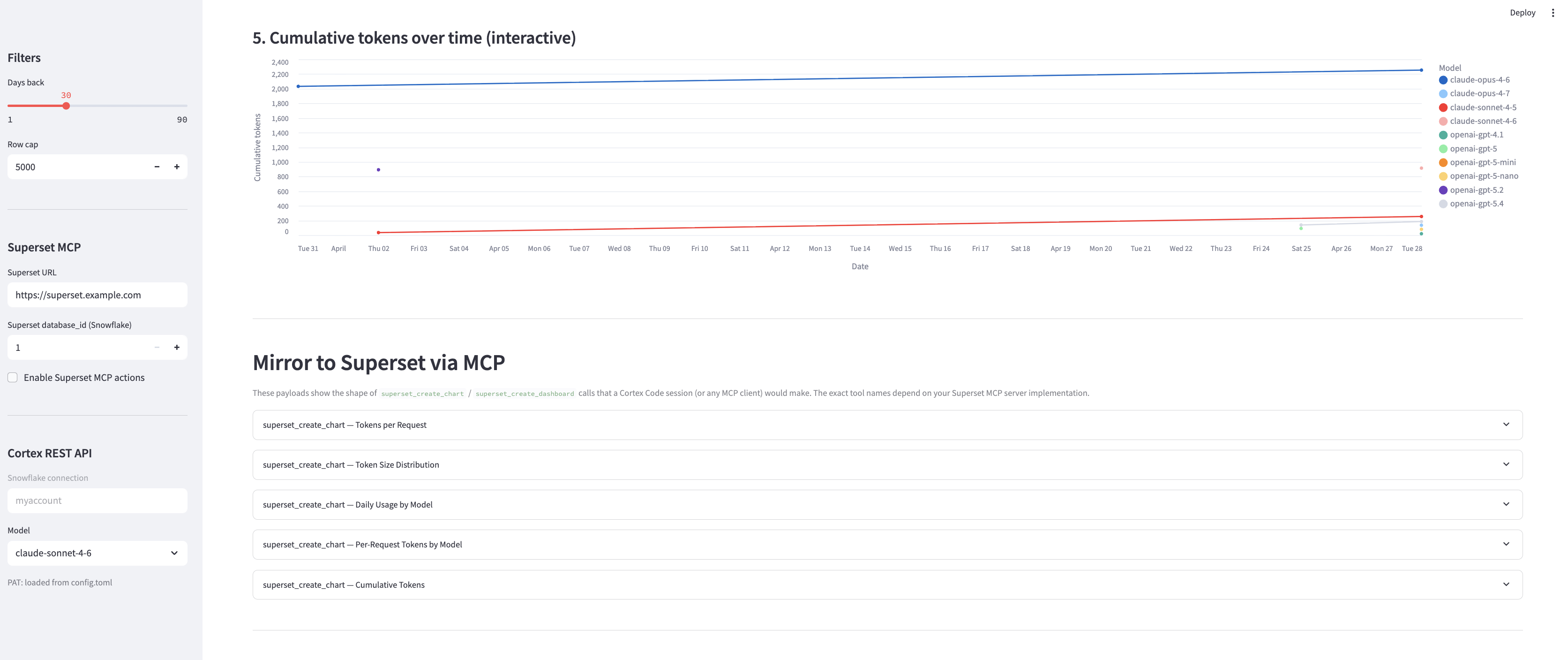

Chart 5 (cumulative tokens) and the "Mirror to Superset via MCP" expanders for each chart
# Pseudocode — real calls go through MCP tool invocations
dataset_id = superset_create_dataset({
  "database_id": SUPERSET_DB_ID,
  "schema": "ACCOUNT_USAGE",
  "table_name": "CORTEX_REST_API_USAGE_HISTORY",
  "sql": """
    SELECT DATE_TRUNC('day', start_time)::DATE AS day,
           model_name, user_id, tokens, request_id
    FROM SNOWFLAKE.ACCOUNT_USAGE.CORTEX_REST_API_USAGE_HISTORY
    WHERE start_time >= DATEADD(day, -30, CURRENT_TIMESTAMP())
  """,
})["id"]

chart_ids = []
for payload in chart_payloads:
    chart_ids.append(superset_create_chart({
        "datasource_id": dataset_id,
        "slice_name":    payload["slice_name"],
        "viz_type":      payload["viz_type"],
        "params":        payload["params"],
    })["id"])

dashboard_id = superset_create_dashboard({"dashboard_title": "Cortex REST API Usage"})["id"]
for cid in chart_ids:
    superset_add_chart_to_dashboard({"dashboard_id": dashboard_id, "chart_id": cid})

embed = superset_get_dashboard_embed_token({"dashboard_id": dashboard_id})

The resulting dashboard lives in Superset and can be embedded anywhere via embed.token + the Superset Embedded SDK.

Cortex REST API → Superset Chart Config

Duration: 2

The "LLM-generate a Superset chart config" section of the app calls Cortex REST API's OpenAI-compatible endpoint. The app uses your named connection (default: myaccount) from ~/.snowflake/config.toml to resolve the account host automatically — users only see the connection name in the UI, never a raw host.

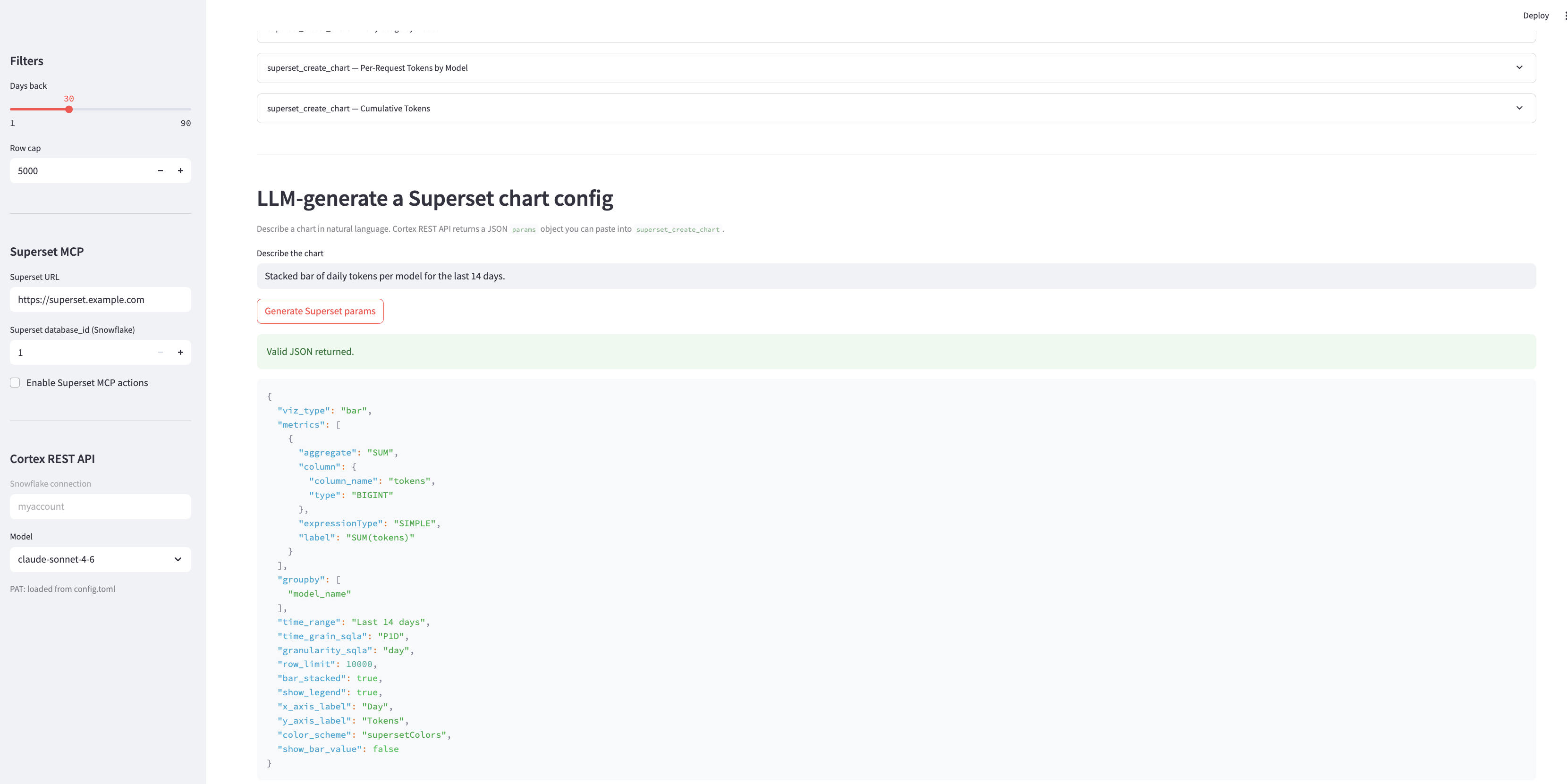

LLM-generate a Superset chart config — Cortex REST API returns a stacked-bar params JSON for "Stacked bar of daily tokens per model for the last 14 days"
POST https://<account>.snowflakecomputing.com/api/v2/cortex/v1/chat/completions

System prompt (verbatim from the app):

You are a Superset chart generator. Return ONLY a JSON object suitable for
superset_create_chart's `params` field (no commentary, no code fences).
Dataset columns: day (date), model_name (string), tokens (number),
user_id (string), request_id (string).
Required keys: viz_type, metrics, groupby, time_range.

Sample user prompt: "Stacked bar of daily tokens per model for the last 14 days."

The app validates the response with json.loads and displays the parsed result. Paste that JSON into the params field of a superset_create_chart MCP call to materialize it.

Authentication

PAT-based REST calls need two auth headers, not one. A bearer token alone returns HTTP 401:

headers = {
    "Authorization": f"Bearer {PAT}",
    "X-Snowflake-Authorization-Token-Type": "PROGRAMMATIC_ACCESS_TOKEN",  # required
    "Content-Type": "application/json",
    "Accept": "application/json",  # required — otherwise 400 "Unsupported Accept header"
}

Also note that max_tokens is deprecated on this endpoint — use max_completion_tokens instead.

The app reads the PAT directly from ~/.snowflake/config.toml under [connections.<SNOWFLAKE_CONNECTION_NAME>].password — no SNOWFLAKE_PAT env var required for local runs. In SiS, this block is skipped and session auth is handled by Snowpark; swap in a Snowflake Secret or the Snowpark _rest token pattern if you need to call the REST API from inside SiS.

Embed the Dashboard

Duration: 1

Once the Superset dashboard exists, embed it in whichever surface your users live in:

SurfaceEmbed pattern
Snowflake IntelligenceMarkdown link [Open dashboard](https://superset.example.com/...)
SlackUnfurled permalink, or rendered PNG via Superset's /api/v1/chart/<id>/screenshot
Custom web appSuperset Embedded SDK + embed.token from superset_get_dashboard_embed_token
SiS companion (this app)st.components.v1.iframe(embed_url) in a second tab

Superset vs Vega-Lite — When to Use Which

Duration: 1

DimensionVega-Lite HTML guideThis Streamlit + Superset guide
InfrastructureNone (static HTML)Superset instance + MCP server
Governance / RLSNoneSuperset row-level security
Persisted dashboardsNoYes, shareable and scheduled
InteractivityVega interactions onlyFull Superset explore + filters
Auto-generated chartsJSON specparams object via Cortex REST API
Time to first chartSecondsMinutes (one-time Superset wiring)

Pick Vega-Lite HTML for one-off visualizations embedded in docs or SiS. Pick Superset for shared, governed dashboards with RLS and scheduled delivery.

Conclusion And Resources

Duration: 1

You built a standalone Streamlit app that:

  • Reads SNOWFLAKE.ACCOUNT_USAGE.CORTEX_REST_API_USAGE_HISTORY
  • Renders 5 interactive Vega-Lite charts locally — parity with the original HTML quickstart
  • Produces ready-to-execute superset_create_chart payloads for an MCP client
  • Uses Cortex REST API to translate natural-language chart requests into Superset params JSON

What You Learned

  • How to structure a SiS-compatible Streamlit app with a Snowpark session fallback for local runs
  • The 1:1 mapping from Vega-Lite mark / encoding to Superset viz_type / params
  • How to register a Superset MCP server with Cortex Code and call its tools
  • How to coerce an LLM into emitting Superset-valid JSON via a strict system prompt
