Overview

What You Will Build

What You Will Learn

Prerequisites

AWS: Create S3 Bucket and IAM Role

Create S3 Bucket

aside positive IMPORTANT: Choose a region that matches your Snowflake account region to minimize latency and avoid cross-region data transfer costs.

Create IAM Policy

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:GetObjectVersion",
        "s3:DeleteObject",
        "s3:DeleteObjectVersion"
      ],
      "Resource": "arn:aws:s3:::<YOUR-BUCKET>/*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "s3:ListBucket",
        "s3:GetBucketLocation"
      ],
      "Resource": "arn:aws:s3:::<YOUR-BUCKET>"
    }
  ]
}

Create IAM Role

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::123456789012:root"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

aside negative CRITICAL: After creating the role, go to the role's settings and set Maximum session duration to 12 hours. The storage integration will NOT work with the default 1-hour session.

Snowflake: Create Postgres Instance and Network Access

Create the Postgres Instance

CREATE POSTGRES INSTANCE retail_txns
  COMPUTE_FAMILY = 'STANDARD_M'
  STORAGE_SIZE_GB = 50
  AUTHENTICATION_AUTHORITY = POSTGRES
  COMMENT = 'Retail simulation with pg_lake Iceberg integration';

aside positive This will create two users: snowflake_admin and application with auto-generated passwords. Copy the passwords immediately — they are only shown once.

Check Instance Status

-- Get the connection host
SHOW POSTGRES INSTANCES;

-- Wait until state = READY (may take 5-10 minutes)
DESCRIBE POSTGRES INSTANCE retail_txns;

Configure Network Access

CREATE DATABASE IF NOT EXISTS RETAIL_ANALYTICS;
CREATE SCHEMA IF NOT EXISTS RETAIL_ANALYTICS.NETWORK;

CREATE OR REPLACE NETWORK RULE RETAIL_ANALYTICS.NETWORK.PG_RETAIL_INGRESS
  TYPE = IPV4
  VALUE_LIST = ('0.0.0.0/0')
  MODE = POSTGRES_INGRESS;

CREATE OR REPLACE NETWORK POLICY PG_RETAIL_ALLOW_ALL
  ALLOWED_NETWORK_RULE_LIST = ('RETAIL_ANALYTICS.NETWORK.PG_RETAIL_INGRESS')
  COMMENT = 'Allow connections to retail_txns Postgres instance';

ALTER POSTGRES INSTANCE retail_txns
  SET NETWORK_POLICY = 'PG_RETAIL_ALLOW_ALL';

aside negative The 0.0.0.0/0 rule allows connections from any IP. For production, restrict this to your specific IP address (e.g., '203.0.113.5/32').

psql "host=<YOUR-HOST> port=5432 dbname=postgres user=snowflake_admin sslmode=require"

Snowflake: Create Storage Integration

Create the Storage Integration

CREATE STORAGE INTEGRATION pg_lake_s3_integration
  TYPE = POSTGRES_EXTERNAL_STORAGE
  STORAGE_PROVIDER = 'S3'
  ENABLED = TRUE
  STORAGE_AWS_ROLE_ARN = '<YOUR-IAM-ROLE-ARN>'
  STORAGE_ALLOWED_LOCATIONS = ('s3://<YOUR-BUCKET>/');

Get Snowflake IAM Details

DESCRIBE STORAGE INTEGRATION pg_lake_s3_integration;

Update AWS IAM Trust Policy

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "<STORAGE_AWS_IAM_USER_ARN from DESCRIBE output>"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "sts:ExternalId": "<STORAGE_AWS_EXTERNAL_ID from DESCRIBE output>"
        }
      }
    }
  ]
}

Attach to Postgres Instance

ALTER POSTGRES INSTANCE retail_txns
  SET STORAGE_INTEGRATION = pg_lake_s3_integration;

Postgres: Enable pg_lake and Create Tables

psql "host=<YOUR-HOST> port=5432 dbname=postgres user=snowflake_admin sslmode=require"

Enable pg_lake Extension

CREATE EXTENSION IF NOT EXISTS pg_lake CASCADE;

-- Set the default Iceberg storage location
ALTER DATABASE postgres
  SET pg_lake_iceberg.default_location_prefix = 's3://<YOUR-BUCKET>/';

-- Apply to current session
SET pg_lake_iceberg.default_location_prefix TO 's3://<YOUR-BUCKET>/';

-- Verify
SHOW pg_lake_iceberg.default_location_prefix;

Create OLTP Tables (Heap Tables)

CREATE TABLE IF NOT EXISTS stores (
    store_id    SERIAL PRIMARY KEY,
    store_name  TEXT NOT NULL,
    city        TEXT NOT NULL,
    state       TEXT NOT NULL,
    opened_at   TIMESTAMP DEFAULT now()
);

CREATE TABLE IF NOT EXISTS products (
    product_id    SERIAL PRIMARY KEY,
    product_name  TEXT NOT NULL,
    category      TEXT NOT NULL,
    unit_price    NUMERIC(10,2) NOT NULL,
    created_at    TIMESTAMP DEFAULT now()
);

CREATE TABLE IF NOT EXISTS customers (
    customer_id   SERIAL PRIMARY KEY,
    first_name    TEXT NOT NULL,
    last_name     TEXT NOT NULL,
    email         TEXT UNIQUE NOT NULL,
    loyalty_tier  TEXT DEFAULT 'BRONZE',
    created_at    TIMESTAMP DEFAULT now()
);

CREATE TABLE IF NOT EXISTS transactions (
    txn_id         SERIAL PRIMARY KEY,
    store_id       INT NOT NULL REFERENCES stores(store_id),
    customer_id    INT REFERENCES customers(customer_id),
    txn_timestamp  TIMESTAMP NOT NULL DEFAULT now(),
    total_amount   NUMERIC(12,2) NOT NULL DEFAULT 0,
    payment_method TEXT NOT NULL DEFAULT 'CARD',
    synced_at      TIMESTAMP
);

CREATE TABLE IF NOT EXISTS transaction_items (
    item_id       SERIAL PRIMARY KEY,
    txn_id        INT NOT NULL REFERENCES transactions(txn_id),
    product_id    INT NOT NULL REFERENCES products(product_id),
    quantity      INT NOT NULL DEFAULT 1,
    unit_price    NUMERIC(10,2) NOT NULL,
    line_total    NUMERIC(12,2) NOT NULL,
    synced_at     TIMESTAMP
);

-- Indexes for efficient sync (only scan unsynced rows)
CREATE INDEX IF NOT EXISTS idx_txn_synced
  ON transactions(synced_at) WHERE synced_at IS NULL;
CREATE INDEX IF NOT EXISTS idx_items_synced
  ON transaction_items(synced_at) WHERE synced_at IS NULL;

Seed Reference Data

INSERT INTO stores (store_name, city, state) VALUES
    ('Downtown Flagship', 'Seattle', 'WA'),
    ('Mall of Pacific', 'San Francisco', 'CA'),
    ('Eastside Express', 'Bellevue', 'WA'),
    ('Harbor Point', 'Portland', 'OR'),
    ('Valley Center', 'San Jose', 'CA');

INSERT INTO products (product_name, category, unit_price) VALUES
    ('Organic Coffee Beans 1lb',   'Grocery',       14.99),
    ('Wireless Earbuds Pro',       'Electronics',   79.99),
    ('Cotton T-Shirt',             'Apparel',       24.99),
    ('Stainless Water Bottle',     'Home',          19.99),
    ('Running Shoes',              'Footwear',      129.99),
    ('Yoga Mat Premium',           'Fitness',       39.99),
    ('LED Desk Lamp',              'Electronics',   44.99),
    ('Organic Protein Bar 12pk',   'Grocery',       29.99),
    ('Backpack 30L',               'Accessories',   59.99),
    ('Sunscreen SPF50',            'Personal Care', 12.99),
    ('Bluetooth Speaker',          'Electronics',   49.99),
    ('Trail Mix 2lb',              'Grocery',        9.99),
    ('Insulated Lunch Bag',        'Home',          22.99),
    ('Fitness Tracker Band',       'Electronics',   89.99),
    ('Bamboo Cutting Board',       'Home',          17.99);

INSERT INTO customers (first_name, last_name, email, loyalty_tier) VALUES
    ('Alice',   'Chen',     '[email protected]',    'GOLD'),
    ('Bob',     'Martinez', '[email protected]',  'SILVER'),
    ('Carol',   'Johnson',  '[email protected]',       'BRONZE'),
    ('David',   'Kim',      '[email protected]',     'GOLD'),
    ('Eve',     'Patel',    '[email protected]',     'PLATINUM'),
    ('Frank',   'Lopez',    '[email protected]',   'BRONZE'),
    ('Grace',   'Wu',       '[email protected]',      'SILVER'),
    ('Hank',    'Brown',    '[email protected]',    'BRONZE'),
    ('Iris',    'Davis',    '[email protected]',    'GOLD'),
    ('Jack',    'Wilson',   '[email protected]',   'SILVER');

Create Iceberg Tables

CREATE TABLE iceberg_transactions (
    txn_id         INT,
    store_id       INT,
    customer_id    INT,
    txn_timestamp  TIMESTAMP,
    total_amount   NUMERIC(12,2),
    payment_method TEXT,
    synced_at      TIMESTAMP
) USING iceberg;

CREATE TABLE iceberg_transaction_items (
    item_id      INT,
    txn_id       INT,
    product_id   INT,
    quantity     INT,
    unit_price   NUMERIC(10,2),
    line_total   NUMERIC(12,2),
    synced_at    TIMESTAMP
) USING iceberg;

CREATE TABLE iceberg_stores (
    store_id    INT,
    store_name  TEXT,
    city        TEXT,
    state       TEXT,
    opened_at   TIMESTAMP
) USING iceberg;

CREATE TABLE iceberg_products (
    product_id    INT,
    product_name  TEXT,
    category      TEXT,
    unit_price    NUMERIC(10,2),
    created_at    TIMESTAMP
) USING iceberg;

CREATE TABLE iceberg_customers (
    customer_id   INT,
    first_name    TEXT,
    last_name     TEXT,
    email         TEXT,
    loyalty_tier  TEXT,
    created_at    TIMESTAMP
) USING iceberg;

Seed Dimension Data into Iceberg

INSERT INTO iceberg_stores    SELECT * FROM stores;
INSERT INTO iceberg_products  SELECT * FROM products;
INSERT INTO iceberg_customers SELECT * FROM customers;

Set Up Incremental Sync with pg_cron

CREATE EXTENSION IF NOT EXISTS pg_cron;

-- Sync transaction headers every minute
SELECT cron.schedule(
    'sync_txn_headers',
    '* * * * *',
    'WITH synced AS (
        INSERT INTO iceberg_transactions
        SELECT txn_id, store_id, customer_id, txn_timestamp,
               total_amount, payment_method, now()
        FROM transactions WHERE synced_at IS NULL
        RETURNING txn_id
    ) UPDATE transactions SET synced_at = now()
      WHERE txn_id IN (SELECT txn_id FROM synced)'
);

-- Sync transaction line items every minute
SELECT cron.schedule(
    'sync_txn_items',
    '* * * * *',
    'WITH synced AS (
        INSERT INTO iceberg_transaction_items
        SELECT item_id, txn_id, product_id, quantity,
               unit_price, line_total, now()
        FROM transaction_items WHERE synced_at IS NULL
        RETURNING item_id
    ) UPDATE transaction_items SET synced_at = now()
      WHERE item_id IN (SELECT item_id FROM synced)'
);

Get Iceberg Metadata Locations

SELECT table_name, metadata_location FROM iceberg_tables;

aside positive The metadata_location values look like: s3://<YOUR-BUCKET>/frompg/tables/postgres/public/iceberg_transactions/<OID>/metadata/00000-xxxx.metadata.json. You will use the path after the bucket prefix when creating Snowflake Iceberg tables.

Snowflake: Create External Volume and Iceberg Tables

Create External Volume

CREATE OR REPLACE EXTERNAL VOLUME retail_lake_volume
  STORAGE_LOCATIONS = (
    (
      NAME                 = 'retail-s3'
      STORAGE_PROVIDER     = 'S3'
      STORAGE_BASE_URL     = 's3://<YOUR-BUCKET>/'
      STORAGE_AWS_ROLE_ARN = '<YOUR-IAM-ROLE-ARN>'
    )
  );

DESCRIBE EXTERNAL VOLUME retail_lake_volume;

aside positive Record the STORAGE_AWS_IAM_USER_ARN and STORAGE_AWS_EXTERNAL_ID from this output. You will need them (along with the values from the storage integration) for the IAM trust policy update in the next step.

Create Catalog Integration

CREATE OR REPLACE CATALOG INTEGRATION pg_lake_catalog
  CATALOG_SOURCE = OBJECT_STORE
  TABLE_FORMAT = ICEBERG
  ENABLED = TRUE;

Create Database and Schema

CREATE DATABASE IF NOT EXISTS RETAIL_ANALYTICS;
CREATE SCHEMA IF NOT EXISTS RETAIL_ANALYTICS.LAKEHOUSE;
USE SCHEMA RETAIL_ANALYTICS.LAKEHOUSE;

Create Iceberg Tables

-- Transactions fact table
CREATE OR REPLACE ICEBERG TABLE iceberg_transactions
  EXTERNAL_VOLUME = 'retail_lake_volume'
  CATALOG = 'pg_lake_catalog'
  METADATA_FILE_PATH = 'frompg/tables/postgres/public/iceberg_transactions/<OID>/metadata/<METADATA-FILE>.metadata.json';

-- Transaction line items
CREATE OR REPLACE ICEBERG TABLE iceberg_transaction_items
  EXTERNAL_VOLUME = 'retail_lake_volume'
  CATALOG = 'pg_lake_catalog'
  METADATA_FILE_PATH = 'frompg/tables/postgres/public/iceberg_transaction_items/<OID>/metadata/<METADATA-FILE>.metadata.json';

-- Dimension: Stores
CREATE OR REPLACE ICEBERG TABLE iceberg_stores
  EXTERNAL_VOLUME = 'retail_lake_volume'
  CATALOG = 'pg_lake_catalog'
  METADATA_FILE_PATH = 'frompg/tables/postgres/public/iceberg_stores/<OID>/metadata/<METADATA-FILE>.metadata.json';

-- Dimension: Products
CREATE OR REPLACE ICEBERG TABLE iceberg_products
  EXTERNAL_VOLUME = 'retail_lake_volume'
  CATALOG = 'pg_lake_catalog'
  METADATA_FILE_PATH = 'frompg/tables/postgres/public/iceberg_products/<OID>/metadata/<METADATA-FILE>.metadata.json';

-- Dimension: Customers
CREATE OR REPLACE ICEBERG TABLE iceberg_customers
  EXTERNAL_VOLUME = 'retail_lake_volume'
  CATALOG = 'pg_lake_catalog'
  METADATA_FILE_PATH = 'frompg/tables/postgres/public/iceberg_customers/<OID>/metadata/<METADATA-FILE>.metadata.json';

Verify

SELECT 'transactions' AS table_name, COUNT(*) AS row_count FROM iceberg_transactions
UNION ALL
SELECT 'items',        COUNT(*) FROM iceberg_transaction_items
UNION ALL
SELECT 'stores',       COUNT(*) FROM iceberg_stores
UNION ALL
SELECT 'products',     COUNT(*) FROM iceberg_products
UNION ALL
SELECT 'customers',    COUNT(*) FROM iceberg_customers;

AWS: Update IAM Trust Policy for All Principals

-- Run these in Snowflake and record the output
DESCRIBE STORAGE INTEGRATION pg_lake_s3_integration;
DESCRIBE EXTERNAL VOLUME retail_lake_volume;

aside positive You will also need the values from the stage storage integration created in the next step. You can update the trust policy once more after that step, or add all three principals now if you create the stage integration first.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": [
          "<STORAGE_AWS_IAM_USER_ARN from pg_lake_s3_integration>",
          "<STORAGE_AWS_IAM_USER_ARN from retail_lake_volume>",
          "<STORAGE_AWS_IAM_USER_ARN from iceberg_stage_s3_integration>"
        ]
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "sts:ExternalId": [
            "<STORAGE_AWS_EXTERNAL_ID from pg_lake_s3_integration>",
            "<STORAGE_AWS_EXTERNAL_ID from retail_lake_volume>",
            "<STORAGE_AWS_EXTERNAL_ID from iceberg_stage_s3_integration>"
          ]
        }
      }
    }
  ]
}

Snowflake: Set Up Auto-Refresh

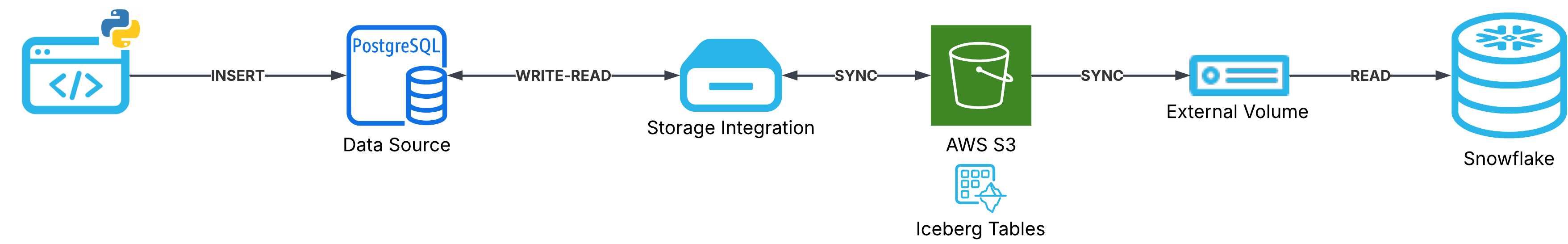

Architecture

Directory Stage --> Stream --> Root Task (refresh stage) --> Child Task (refresh Iceberg table)

Create Stage Storage Integration

CREATE OR REPLACE STORAGE INTEGRATION iceberg_stage_s3_integration
  TYPE = EXTERNAL_STAGE
  STORAGE_PROVIDER = 'S3'
  ENABLED = TRUE
  STORAGE_AWS_ROLE_ARN = '<YOUR-IAM-ROLE-ARN>'
  STORAGE_ALLOWED_LOCATIONS = ('s3://<YOUR-BUCKET>/frompg/tables/');

-- Get IAM details (add to trust policy from previous step)
DESCRIBE STORAGE INTEGRATION iceberg_stage_s3_integration;

aside negative After running the DESCRIBE above, go back to AWS and add the third principal to your IAM trust policy if you haven't already.

Create Directory Stages

USE SCHEMA RETAIL_ANALYTICS.LAKEHOUSE;

CREATE OR REPLACE STAGE stg_meta_transactions
  URL = 's3://<YOUR-BUCKET>/frompg/tables/postgres/public/iceberg_transactions/<OID>/metadata/'
  STORAGE_INTEGRATION = iceberg_stage_s3_integration
  DIRECTORY = (ENABLE = TRUE);

CREATE OR REPLACE STAGE stg_meta_transaction_items
  URL = 's3://<YOUR-BUCKET>/frompg/tables/postgres/public/iceberg_transaction_items/<OID>/metadata/'
  STORAGE_INTEGRATION = iceberg_stage_s3_integration
  DIRECTORY = (ENABLE = TRUE);

CREATE OR REPLACE STAGE stg_meta_stores
  URL = 's3://<YOUR-BUCKET>/frompg/tables/postgres/public/iceberg_stores/<OID>/metadata/'
  STORAGE_INTEGRATION = iceberg_stage_s3_integration
  DIRECTORY = (ENABLE = TRUE);

CREATE OR REPLACE STAGE stg_meta_products
  URL = 's3://<YOUR-BUCKET>/frompg/tables/postgres/public/iceberg_products/<OID>/metadata/'
  STORAGE_INTEGRATION = iceberg_stage_s3_integration
  DIRECTORY = (ENABLE = TRUE);

CREATE OR REPLACE STAGE stg_meta_customers
  URL = 's3://<YOUR-BUCKET>/frompg/tables/postgres/public/iceberg_customers/<OID>/metadata/'
  STORAGE_INTEGRATION = iceberg_stage_s3_integration
  DIRECTORY = (ENABLE = TRUE);

Create Streams

CREATE OR REPLACE STREAM stream_meta_transactions ON STAGE stg_meta_transactions;
CREATE OR REPLACE STREAM stream_meta_transaction_items ON STAGE stg_meta_transaction_items;
CREATE OR REPLACE STREAM stream_meta_stores ON STAGE stg_meta_stores;
CREATE OR REPLACE STREAM stream_meta_products ON STAGE stg_meta_products;
CREATE OR REPLACE STREAM stream_meta_customers ON STAGE stg_meta_customers;

Create Stored Procedures

CREATE OR REPLACE PROCEDURE sp_refresh_iceberg_transactions()
RETURNS VARCHAR
LANGUAGE SQL
AS
$$
DECLARE
  latest_path VARCHAR;
BEGIN
  SELECT RELATIVE_PATH INTO :latest_path
  FROM DIRECTORY(@stg_meta_transactions)
  WHERE RELATIVE_PATH LIKE '%.metadata.json'
  ORDER BY LAST_MODIFIED DESC
  LIMIT 1;

  EXECUTE IMMEDIATE
    'ALTER ICEBERG TABLE iceberg_transactions REFRESH '''
    || 'frompg/tables/postgres/public/iceberg_transactions/<OID>/metadata/'
    || latest_path || '''';
  RETURN latest_path;
END;
$$;

CREATE OR REPLACE PROCEDURE sp_refresh_iceberg_transaction_items()
RETURNS VARCHAR
LANGUAGE SQL
AS
$$
DECLARE
  latest_path VARCHAR;
BEGIN
  SELECT RELATIVE_PATH INTO :latest_path
  FROM DIRECTORY(@stg_meta_transaction_items)
  WHERE RELATIVE_PATH LIKE '%.metadata.json'
  ORDER BY LAST_MODIFIED DESC
  LIMIT 1;

  EXECUTE IMMEDIATE
    'ALTER ICEBERG TABLE iceberg_transaction_items REFRESH '''
    || 'frompg/tables/postgres/public/iceberg_transaction_items/<OID>/metadata/'
    || latest_path || '''';
  RETURN latest_path;
END;
$$;

CREATE OR REPLACE PROCEDURE sp_refresh_iceberg_stores()
RETURNS VARCHAR
LANGUAGE SQL
AS
$$
DECLARE
  latest_path VARCHAR;
BEGIN
  SELECT RELATIVE_PATH INTO :latest_path
  FROM DIRECTORY(@stg_meta_stores)
  WHERE RELATIVE_PATH LIKE '%.metadata.json'
  ORDER BY LAST_MODIFIED DESC
  LIMIT 1;

  EXECUTE IMMEDIATE
    'ALTER ICEBERG TABLE iceberg_stores REFRESH '''
    || 'frompg/tables/postgres/public/iceberg_stores/<OID>/metadata/'
    || latest_path || '''';
  RETURN latest_path;
END;
$$;

CREATE OR REPLACE PROCEDURE sp_refresh_iceberg_products()
RETURNS VARCHAR
LANGUAGE SQL
AS
$$
DECLARE
  latest_path VARCHAR;
BEGIN
  SELECT RELATIVE_PATH INTO :latest_path
  FROM DIRECTORY(@stg_meta_products)
  WHERE RELATIVE_PATH LIKE '%.metadata.json'
  ORDER BY LAST_MODIFIED DESC
  LIMIT 1;

  EXECUTE IMMEDIATE
    'ALTER ICEBERG TABLE iceberg_products REFRESH '''
    || 'frompg/tables/postgres/public/iceberg_products/<OID>/metadata/'
    || latest_path || '''';
  RETURN latest_path;
END;
$$;

CREATE OR REPLACE PROCEDURE sp_refresh_iceberg_customers()
RETURNS VARCHAR
LANGUAGE SQL
AS
$$
DECLARE
  latest_path VARCHAR;
BEGIN
  SELECT RELATIVE_PATH INTO :latest_path
  FROM DIRECTORY(@stg_meta_customers)
  WHERE RELATIVE_PATH LIKE '%.metadata.json'
  ORDER BY LAST_MODIFIED DESC
  LIMIT 1;

  EXECUTE IMMEDIATE
    'ALTER ICEBERG TABLE iceberg_customers REFRESH '''
    || 'frompg/tables/postgres/public/iceberg_customers/<OID>/metadata/'
    || latest_path || '''';
  RETURN latest_path;
END;
$$;

Create Tasks

-- Root tasks: refresh directory stages every 2 minutes
CREATE OR REPLACE TASK task_refresh_stage_transactions
  WAREHOUSE = COMPUTE_WH
  SCHEDULE  = '2 MINUTES'
AS
  ALTER STAGE stg_meta_transactions REFRESH;

CREATE OR REPLACE TASK task_refresh_stage_transaction_items
  WAREHOUSE = COMPUTE_WH
  SCHEDULE  = '2 MINUTES'
AS
  ALTER STAGE stg_meta_transaction_items REFRESH;

CREATE OR REPLACE TASK task_refresh_stage_stores
  WAREHOUSE = COMPUTE_WH
  SCHEDULE  = '2 MINUTES'
AS
  ALTER STAGE stg_meta_stores REFRESH;

CREATE OR REPLACE TASK task_refresh_stage_products
  WAREHOUSE = COMPUTE_WH
  SCHEDULE  = '2 MINUTES'
AS
  ALTER STAGE stg_meta_products REFRESH;

CREATE OR REPLACE TASK task_refresh_stage_customers
  WAREHOUSE = COMPUTE_WH
  SCHEDULE  = '2 MINUTES'
AS
  ALTER STAGE stg_meta_customers REFRESH;

-- Child tasks: refresh Iceberg tables when stream has new data
CREATE OR REPLACE TASK task_refresh_iceberg_transactions
  WAREHOUSE = COMPUTE_WH
  AFTER task_refresh_stage_transactions
  WHEN SYSTEM$STREAM_HAS_DATA('stream_meta_transactions')
AS
  CALL sp_refresh_iceberg_transactions();

CREATE OR REPLACE TASK task_refresh_iceberg_transaction_items
  WAREHOUSE = COMPUTE_WH
  AFTER task_refresh_stage_transaction_items
  WHEN SYSTEM$STREAM_HAS_DATA('stream_meta_transaction_items')
AS
  CALL sp_refresh_iceberg_transaction_items();

CREATE OR REPLACE TASK task_refresh_iceberg_stores
  WAREHOUSE = COMPUTE_WH
  AFTER task_refresh_stage_stores
  WHEN SYSTEM$STREAM_HAS_DATA('stream_meta_stores')
AS
  CALL sp_refresh_iceberg_stores();

CREATE OR REPLACE TASK task_refresh_iceberg_products
  WAREHOUSE = COMPUTE_WH
  AFTER task_refresh_stage_products
  WHEN SYSTEM$STREAM_HAS_DATA('stream_meta_products')
AS
  CALL sp_refresh_iceberg_products();

CREATE OR REPLACE TASK task_refresh_iceberg_customers
  WAREHOUSE = COMPUTE_WH
  AFTER task_refresh_stage_customers
  WHEN SYSTEM$STREAM_HAS_DATA('stream_meta_customers')
AS
  CALL sp_refresh_iceberg_customers();

Resume Tasks

-- Resume child tasks
ALTER TASK task_refresh_iceberg_transactions RESUME;
ALTER TASK task_refresh_iceberg_transaction_items RESUME;
ALTER TASK task_refresh_iceberg_stores RESUME;
ALTER TASK task_refresh_iceberg_products RESUME;
ALTER TASK task_refresh_iceberg_customers RESUME;

-- Resume root tasks
ALTER TASK task_refresh_stage_transactions RESUME;
ALTER TASK task_refresh_stage_transaction_items RESUME;
ALTER TASK task_refresh_stage_stores RESUME;
ALTER TASK task_refresh_stage_products RESUME;
ALTER TASK task_refresh_stage_customers RESUME;

Simulate Transactions and Verify

Install Dependencies

pip install psycopg2-binary

Run the Transaction Simulator

"""
simulate_transactions.py - Retail transaction simulator
Generates random transactions into Postgres heap tables.
pg_lake + pg_cron handles the sync to Iceberg on S3 automatically.
"""

import argparse
import random
import time
import sys
from datetime import datetime

import psycopg2
from psycopg2.extras import execute_values

PAYMENT_METHODS = ["CARD", "CASH", "DIGITAL_WALLET", "GIFT_CARD"]
ITEMS_PER_TXN_RANGE = (1, 5)


def get_reference_data(conn):
    """Load store, product, and customer IDs from the database."""
    with conn.cursor() as cur:
        cur.execute("SELECT store_id FROM stores")
        store_ids = [r[0] for r in cur.fetchall()]
        cur.execute("SELECT product_id, unit_price FROM products")
        products = [(r[0], float(r[1])) for r in cur.fetchall()]
        cur.execute("SELECT customer_id FROM customers")
        customer_ids = [r[0] for r in cur.fetchall()]
    return store_ids, products, customer_ids


def generate_transaction(store_ids, products, customer_ids):
    """Generate a single random retail transaction with line items."""
    store_id = random.choice(store_ids)
    customer_id = random.choice(customer_ids) if random.random() < 0.9 else None
    payment = random.choice(PAYMENT_METHODS)
    num_items = random.randint(*ITEMS_PER_TXN_RANGE)
    items = []
    total = 0.0
    selected_products = random.sample(products, min(num_items, len(products)))
    for product_id, unit_price in selected_products:
        qty = random.randint(1, 3)
        line_total = round(unit_price * qty, 2)
        total += line_total
        items.append((product_id, qty, unit_price, line_total))
    return store_id, customer_id, round(total, 2), payment, items


def insert_batch(conn, batch):
    """Insert a batch of transactions and their line items."""
    with conn.cursor() as cur:
        txn_rows = [
            (sid, cid, total, pay)
            for sid, cid, total, pay, _items in batch
        ]
        result = execute_values(
            cur,
            "INSERT INTO transactions (store_id, customer_id, total_amount, payment_method) VALUES %s RETURNING txn_id",
            txn_rows, fetch=True,
        )
        txn_ids = [r[0] for r in result]
        all_items = []
        for txn_id, (_s, _c, _t, _p, items) in zip(txn_ids, batch):
            for pid, qty, up, lt in items:
                all_items.append((txn_id, pid, qty, up, lt))
        if all_items:
            execute_values(
                cur,
                "INSERT INTO transaction_items (txn_id, product_id, quantity, unit_price, line_total) VALUES %s",
                all_items,
            )
    conn.commit()


def trigger_sync(conn):
    """Manually trigger the Iceberg sync."""
    with conn.cursor() as cur:
        cur.execute(
            "WITH synced AS ("
            "INSERT INTO iceberg_transactions "
            "SELECT txn_id, store_id, customer_id, txn_timestamp, "
            "total_amount, payment_method, now() "
            "FROM transactions WHERE synced_at IS NULL "
            "RETURNING txn_id) "
            "UPDATE transactions SET synced_at = now() "
            "WHERE txn_id IN (SELECT txn_id FROM synced)"
        )
        cur.execute(
            "WITH synced AS ("
            "INSERT INTO iceberg_transaction_items "
            "SELECT item_id, txn_id, product_id, quantity, "
            "unit_price, line_total, now() "
            "FROM transaction_items WHERE synced_at IS NULL "
            "RETURNING item_id) "
            "UPDATE transaction_items SET synced_at = now() "
            "WHERE item_id IN (SELECT item_id FROM synced)"
        )
    conn.commit()


def main():
    parser = argparse.ArgumentParser(description="Retail transaction simulator")
    parser.add_argument("--host", required=True, help="Postgres host")
    parser.add_argument("--port", type=int, default=5432)
    parser.add_argument("--dbname", default="postgres")
    parser.add_argument("--user", default="snowflake_admin")
    parser.add_argument("--password", required=True, help="Postgres password")
    parser.add_argument("--transactions", type=int, default=5000)
    parser.add_argument("--batch-size", type=int, default=500)
    parser.add_argument("--sync-every", type=int, default=500)
    args = parser.parse_args()

    conn = psycopg2.connect(
        host=args.host, port=args.port, dbname=args.dbname,
        user=args.user, password=args.password, sslmode="require",
    )
    conn.autocommit = False

    print(f"Connected to {args.host}:{args.port}/{args.dbname}")
    store_ids, products, customer_ids = get_reference_data(conn)
    print(f"Loaded: {len(store_ids)} stores, {len(products)} products, {len(customer_ids)} customers")

    total_generated = 0
    start_time = time.time()
    print(f"\nGenerating {args.transactions} transactions (batch size: {args.batch_size})...\n")

    while total_generated < args.transactions:
        batch_count = min(args.batch_size, args.transactions - total_generated)
        batch = [generate_transaction(store_ids, products, customer_ids) for _ in range(batch_count)]
        insert_batch(conn, batch)
        total_generated += batch_count
        elapsed = time.time() - start_time
        tps = total_generated / elapsed if elapsed > 0 else 0
        print(f"  [{datetime.now().strftime('%H:%M:%S')}] {total_generated}/{args.transactions} ({tps:.0f} txn/sec)")

        if args.sync_every > 0 and total_generated % args.sync_every == 0:
            print(f"  >> Triggering Iceberg sync at {total_generated} transactions...")
            sync_start = time.time()
            trigger_sync(conn)
            print(f"  >> Sync completed in {time.time() - sync_start:.2f}s")

    print("\nTriggering final Iceberg sync...")
    trigger_sync(conn)

    elapsed = time.time() - start_time
    print(f"\nDone! {total_generated} transactions in {elapsed:.1f}s ({total_generated / elapsed:.0f} txn/sec)")
    conn.close()


if __name__ == "__main__":
    main()

python simulate_transactions.py \
    --host <YOUR-HOST> \
    --password <YOUR-PASSWORD> \
    --transactions 5000 \
    --batch-size 500 \
    --sync-every 500

Verify on Postgres Side

-- Heap vs Iceberg row counts
SELECT 'heap_transactions' AS source, COUNT(*) AS rows FROM transactions
UNION ALL
SELECT 'iceberg_transactions', COUNT(*) FROM iceberg_transactions;

-- Check for unsynced rows (should be 0 after final sync)
SELECT COUNT(*) AS unsynced FROM transactions WHERE synced_at IS NULL;

-- Revenue sanity check (should match between heap and Iceberg)
SELECT 'heap' AS source, SUM(total_amount) AS total_revenue FROM transactions
UNION ALL
SELECT 'iceberg', SUM(total_amount) FROM iceberg_transactions;

Verify on Snowflake Side

-- Manual refresh (run these first, then the stage refresh procedures)
ALTER STAGE stg_meta_transactions REFRESH;
ALTER STAGE stg_meta_transaction_items REFRESH;
CALL sp_refresh_iceberg_transactions();
CALL sp_refresh_iceberg_transaction_items();

-- Row counts
USE SCHEMA RETAIL_ANALYTICS.LAKEHOUSE;

SELECT 'transactions' AS table_name, COUNT(*) AS row_count FROM iceberg_transactions
UNION ALL
SELECT 'items',        COUNT(*) FROM iceberg_transaction_items
UNION ALL
SELECT 'stores',       COUNT(*) FROM iceberg_stores
UNION ALL
SELECT 'products',     COUNT(*) FROM iceberg_products
UNION ALL
SELECT 'customers',    COUNT(*) FROM iceberg_customers;

-- Revenue by store (proves joins work across Iceberg tables)
SELECT
    s.store_name,
    s.city,
    COUNT(DISTINCT t.txn_id) AS total_transactions,
    SUM(t.total_amount)      AS total_revenue
FROM iceberg_transactions t
JOIN iceberg_stores s ON t.store_id = s.store_id
GROUP BY s.store_name, s.city
ORDER BY total_revenue DESC;

-- Top products by revenue
SELECT
    p.product_name,
    p.category,
    SUM(i.quantity)   AS units_sold,
    SUM(i.line_total) AS revenue
FROM iceberg_transaction_items i
JOIN iceberg_products p ON i.product_id = p.product_id
GROUP BY p.product_name, p.category
ORDER BY revenue DESC
LIMIT 10;

-- Confirm no COPY INTO was used (should return 0 rows)
SELECT *
FROM TABLE(INFORMATION_SCHEMA.COPY_HISTORY(
    TABLE_NAME => 'ICEBERG_TRANSACTIONS',
    START_TIME => DATEADD(hours, -24, CURRENT_TIMESTAMP())
));

Conclusion And Resources

What You Learned

Cleanup

-- Suspend tasks
ALTER TASK task_refresh_stage_transactions SUSPEND;
ALTER TASK task_refresh_stage_transaction_items SUSPEND;
ALTER TASK task_refresh_stage_stores SUSPEND;
ALTER TASK task_refresh_stage_products SUSPEND;
ALTER TASK task_refresh_stage_customers SUSPEND;

-- Suspend or drop the Postgres instance
ALTER POSTGRES INSTANCE retail_txns SUSPEND;
-- DROP POSTGRES INSTANCE retail_txns;

Related Resources
