Overview

Prerequisites

Architecture

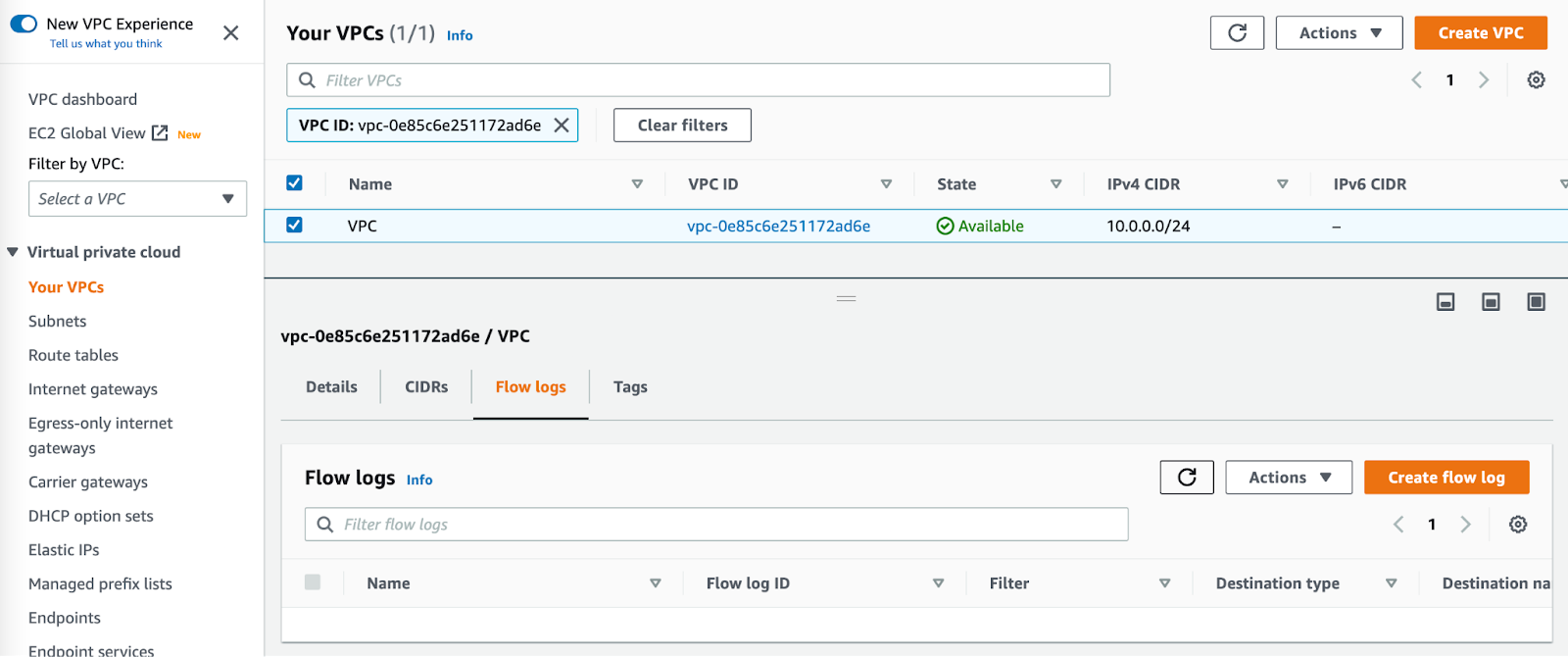

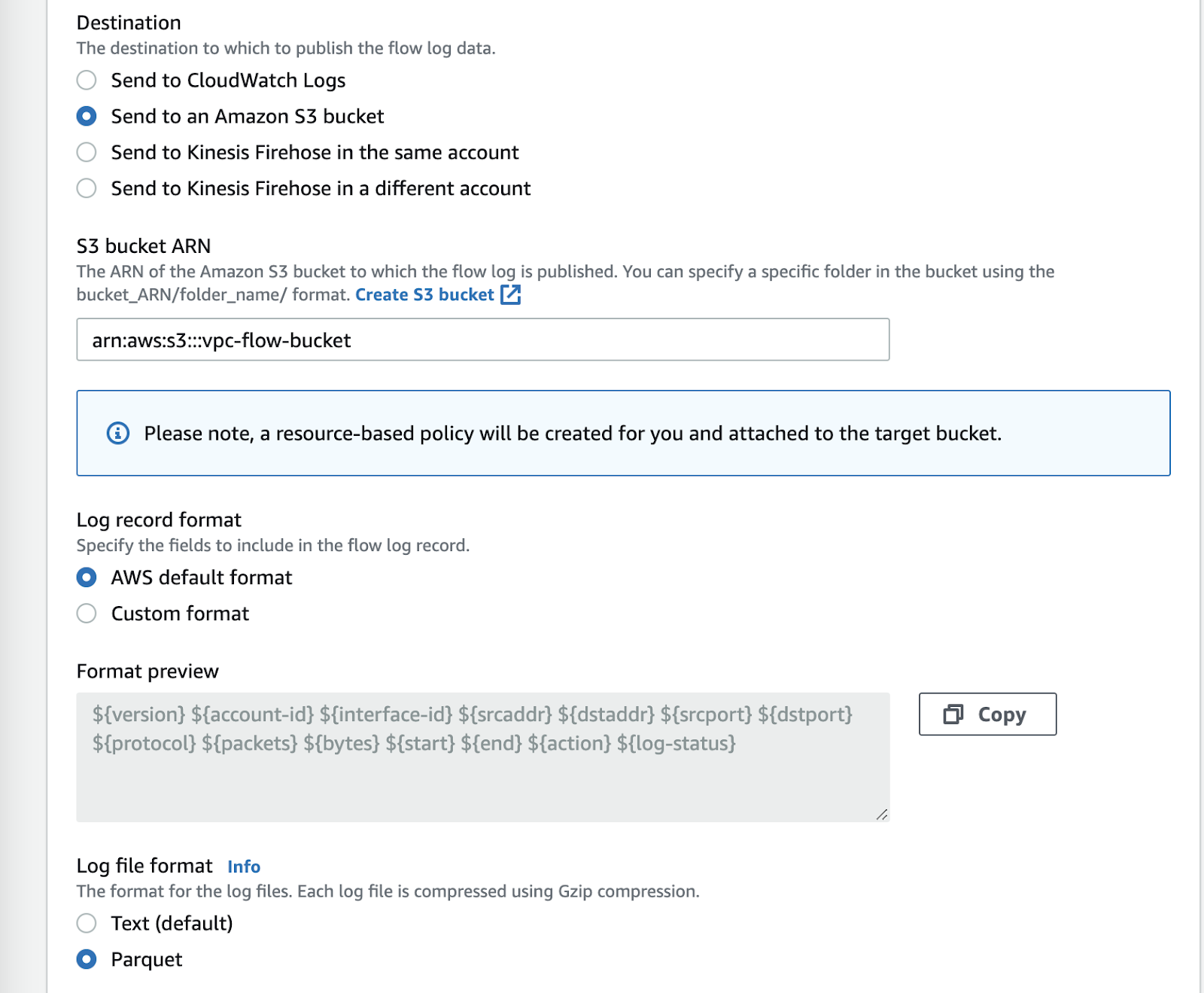

Enable VPC Flow Logs and Push to S3

Create a storage integration in Snowflake

create STORAGE INTEGRATION s3_int_vpc_flow
  TYPE = EXTERNAL_STAGE
  STORAGE_PROVIDER = S3
  ENABLED = TRUE
  STORAGE_AWS_ROLE_ARN = 'arn:aws:iam::<AWS_ACCOUNT_NUMBER>:role/<RoleName>'
  STORAGE_ALLOWED_LOCATIONS = ('s3://<BUCKET_NAME>/<PREFIX>/');

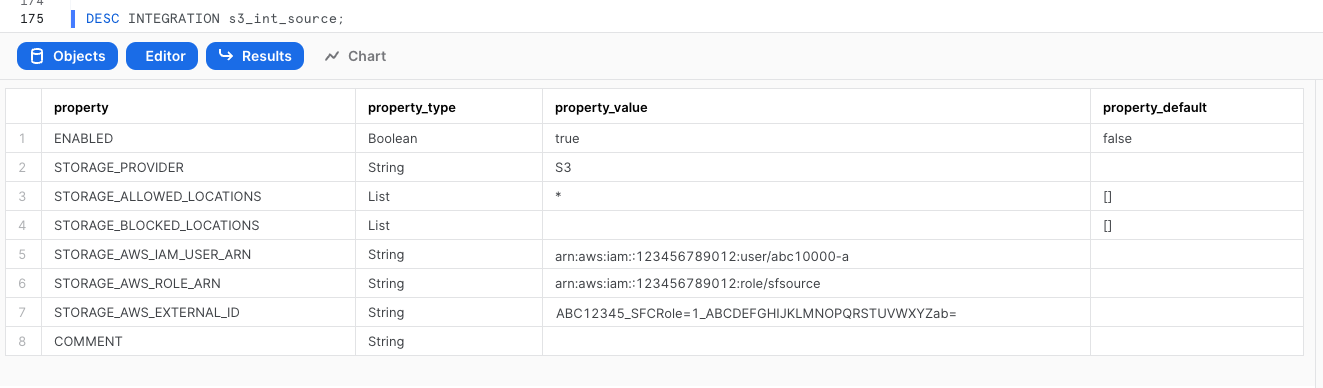

DESC INTEGRATION s3_int_vpc_flow;

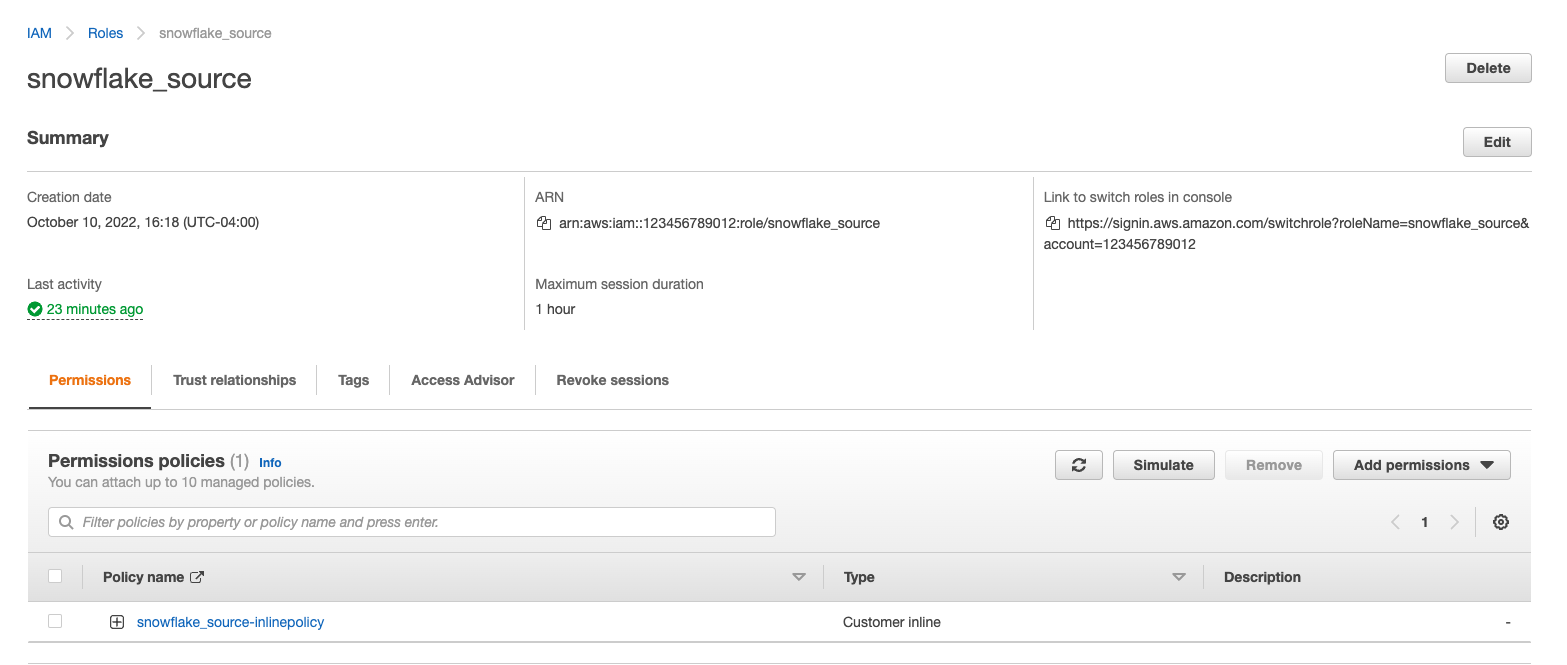

Create role and policy in AWS

export BUCKET_NAME='<BUCKET_NAME>'
export PREFIX='<PREFIX>' # no leading or trailing slashes
export ROLE_NAME='<ROLE_NAME>'
export STORAGE_AWS_IAM_USER_ARN='<STORAGE_AWS_IAM_USER_ARN>'
export STORAGE_AWS_EXTERNAL_ID='<STORAGE_AWS_EXTERNAL_ID>'

aws iam create-role
    --role-name "${ROLE_NAME}"
    --assume-role-policy-document
'{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "",
            "Effect": "Allow",
            "Principal": {
                "AWS": "'${STORAGE_AWS_IAM_USER_ARN}'"
            },
            "Action": "sts:AssumeRole",
            "Condition": {
                "StringEquals": {
                    "sts:ExternalId": "'${STORAGE_AWS_EXTERNAL_ID}'"
                }
            }
        }
    ]
}'

aws iam put-role-policy
    --role-name "${ROLE_NAME}"
    --policy-name "${ROLE_NAME}-inlinepolicy"
    --policy-document
'{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
              "s3:PutObject",
              "s3:GetObject",
              "s3:GetObjectVersion",
              "s3:DeleteObject",
              "s3:DeleteObjectVersion"
            ],
            "Resource": "arn:aws:s3:::'${BUCKET_NAME}'/'${PREFIX}'/*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:GetBucketLocation"
            ],
            "Resource": "arn:aws:s3:::'${BUCKET_NAME}'",
            "Condition": {
                "StringLike": {
                    "s3:prefix": [
                        "'${PREFIX}'/*"
                    ]
                }
            }
        }
    ]
}'

Prepare Snowflake to receive data

create warehouse security_quickstart with
  WAREHOUSE_SIZE = MEDIUM
  AUTO_SUSPEND = 300;

create stage vpc_flow_stage
  url = 's3://<BUCKET_NAME>/<PREFIX>/'
  storage_integration = s3_int_vpc_flow
;

list @vpc_flow_stage;

create table public.vpc_flow(
  record VARIANT
);

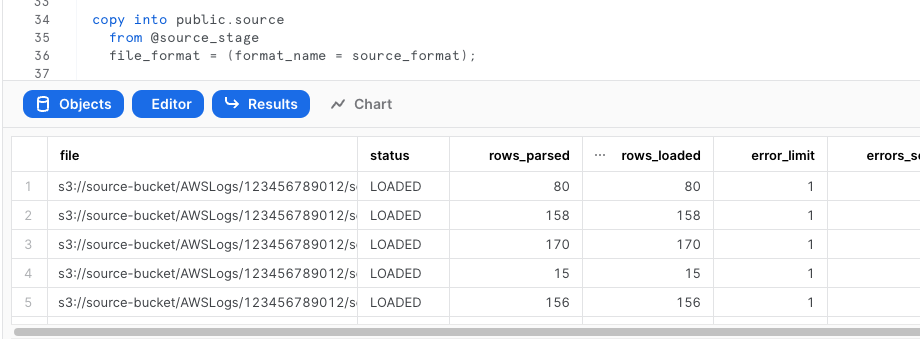

copy into public.vpc_flow
  from @vpc_flow_stage
  file_format = (type = parquet);

select * from public.vpc_flow limit 10;

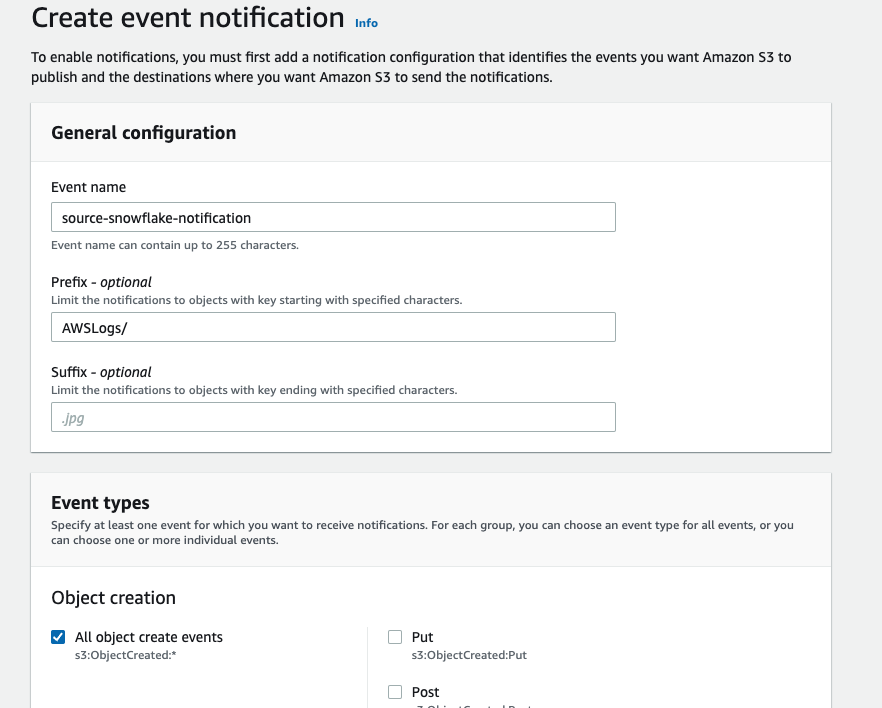

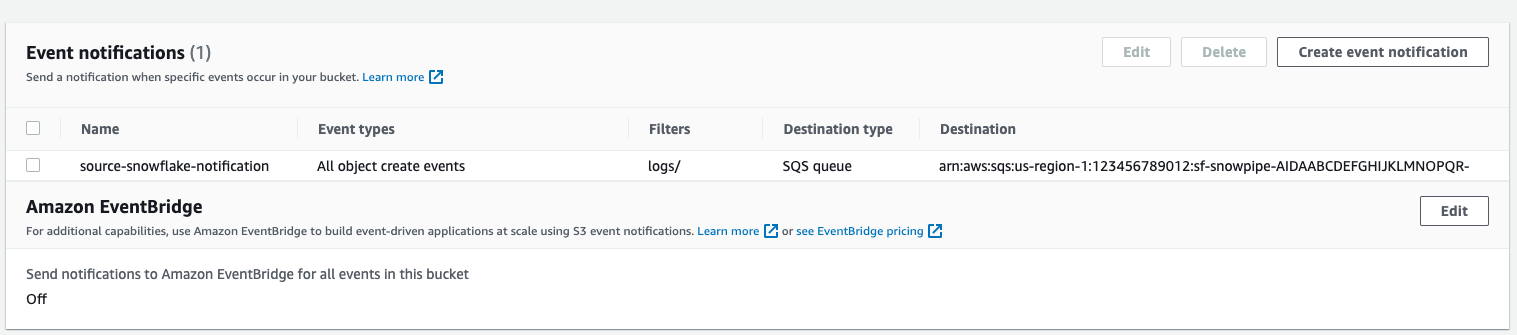

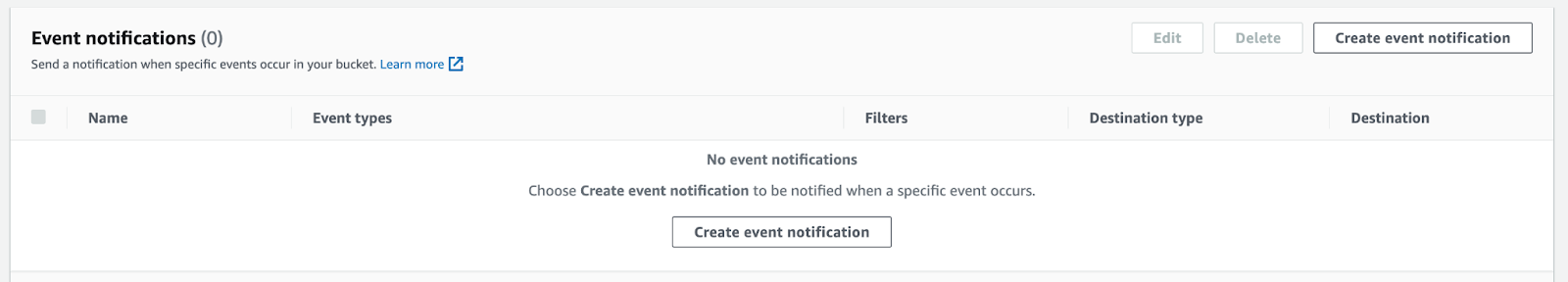

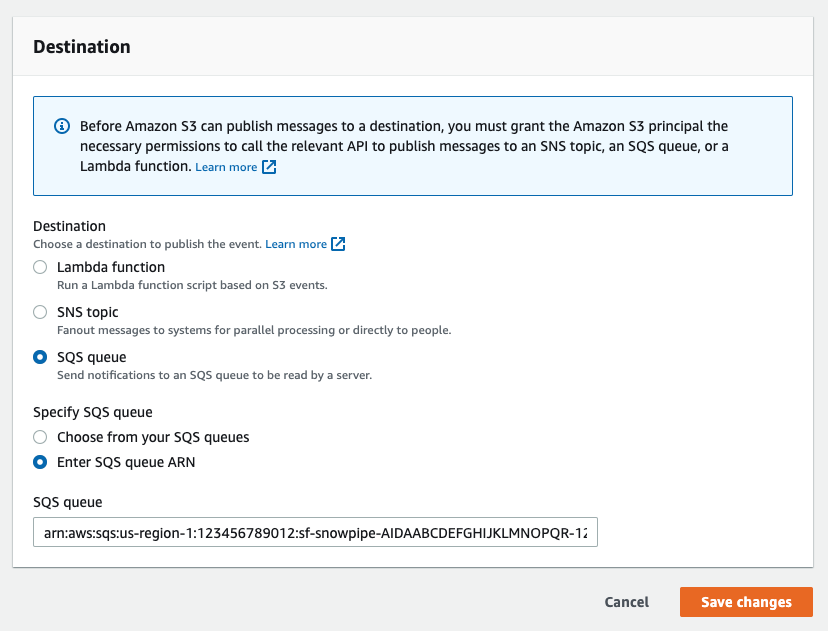

Setup Snowpipe for continuous loading

create pipe public.vpc_flow_pipe auto_ingest=true as
  copy into public.vpc_flow
  from @public.vpc_flow_stage
  file_format = (type = parquet)
;

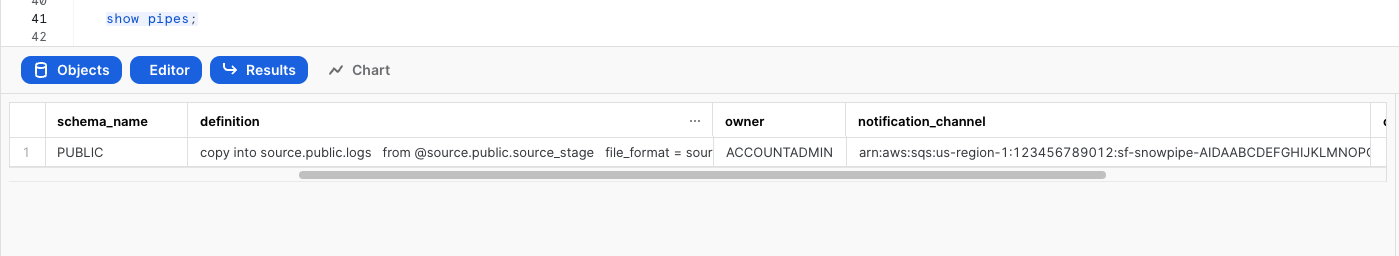

show pipes;

alter pipe vpc_flow_pipe refresh;
select * from public.vpc_flow;

select *
  from table(snowflake.information_schema.pipe_usage_history(
    date_range_start=>dateadd('day',-14,current_date()),
    date_range_end=>current_date(),
    pipe_name=>'public.vpc_flow_pipe));

Create a view to better query data

create view vpc_flow_view as
select
    record:account_id::varchar(16) as account_id,
    record:action::varchar(16) as action,
    record:bytes::integer as bytes,
    record:dstaddr::varchar(128) as dstaddr,
    record:dstport::integer as dstport,
    record:end::TIMESTAMP as "END",
    record:interface_id::varchar(32) as interface_id,
    record:log_status::varchar(8) as log_status,
    record:packets::integer as packets,
    record:protocol::integer as protocol,
    record:srcaddr::varchar(128) as srcaddr,
    record:srcport::integer as srcport,
    record:start::TIMESTAMP as "START",
    record:version::varchar(8) as version
from public.vpc_flow;

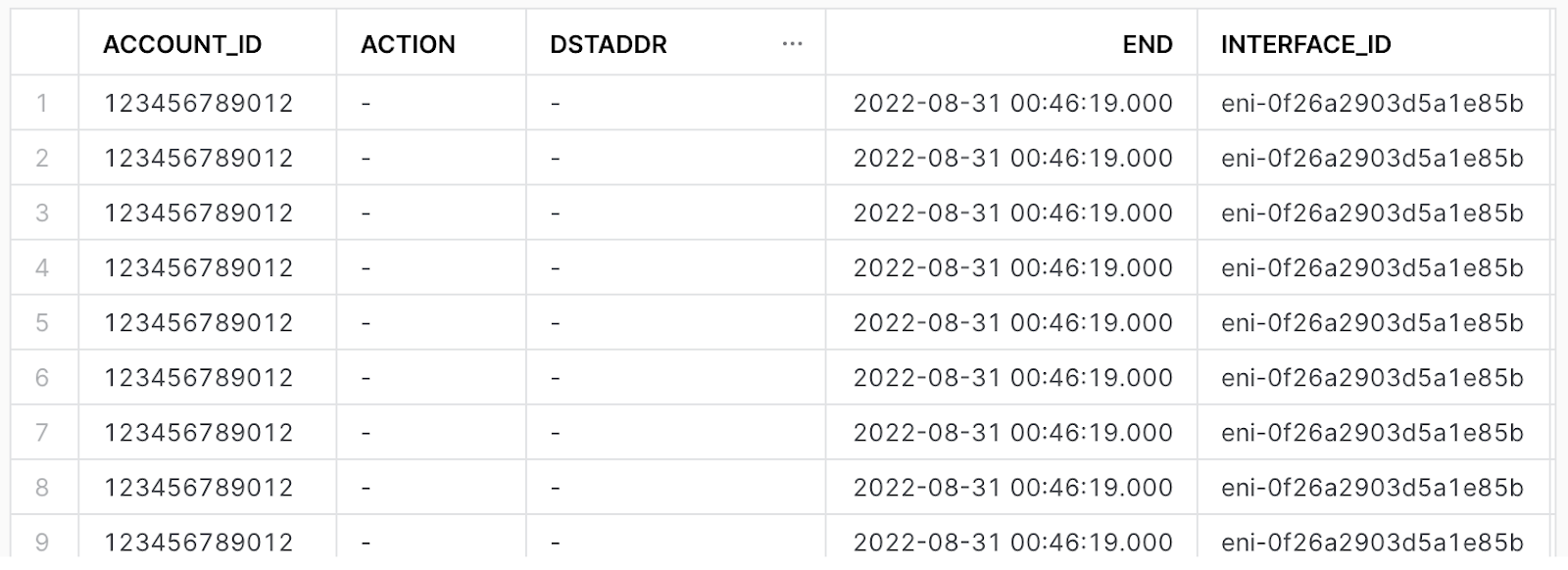

select * from vpc_flow_view limit 10;

Query the data

CREATE OR REPLACE FUNCTION ipv4_is_internal(ip varchar)
  RETURNS Boolean
  AS
  $$
    (parse_ip(ip,'INET'):ipv4 between (167772160) AND (184549375)) OR
    (parse_ip(ip,'INET'):ipv4 between (2886729728) AND (2887778303))OR
    (parse_ip(ip,'INET'):ipv4 between (3232235520) AND (3232301055))
  $$
  ;

-- Administrative traffic from public internet in past 30 days

(select distinct srcaddr as internal_addr,dstaddr as external_addr, srcport as port from vpc_flow_view where "START" > dateadd(day, -30, current_date()) and action = 'ACCEPT' and srcport in (22,3389) and ipv4_is_internal(internal_addr))
union all
(select distinct dstaddr as internal_addr,srcaddr as external_addr, dstport as port from vpc_flow_view where "START" > dateadd(day, -30, current_date()) and action = 'ACCEPT' and dstport in (22,3389) and ipv4_is_internal(internal_addr));


-- Biggest talkers by destination in past 30 days
select dstaddr,sum(bytes) as total_bytes from vpc_flow_view where "START" > dateadd(day, -30, current_date()) and action = 'ACCEPT' group by dstaddr order by total_bytes desc limit 10;

-- Biggest talkers by source in past 30 days
select srcaddr,sum(bytes) as total_bytes from vpc_flow_view where "START" > dateadd(day, -30, current_date()) and action = 'ACCEPT' group by srcaddr order by total_bytes desc limit 10;

-- Biggest talkers by ENI in past 30 days
select interface_id,sum(bytes) as total_bytes from vpc_flow_view where "START" > dateadd(day, -30, current_date()) and action = 'ACCEPT' group by interface_id order by total_bytes desc limit 10;

Conclusion & next steps

Additional References
