Overview

Caveat: This DCDF Data Architecture quickstart and template scripts are for illustrative purposes only. These scripts can be run in any Snowflake account in order to reinforce the concepts and patterns presented in DCDF Webinar Episode 2. They can be customized for your own business use cases.

Prerequisites

What You Will Learn

What You Will Need

What You Will Build

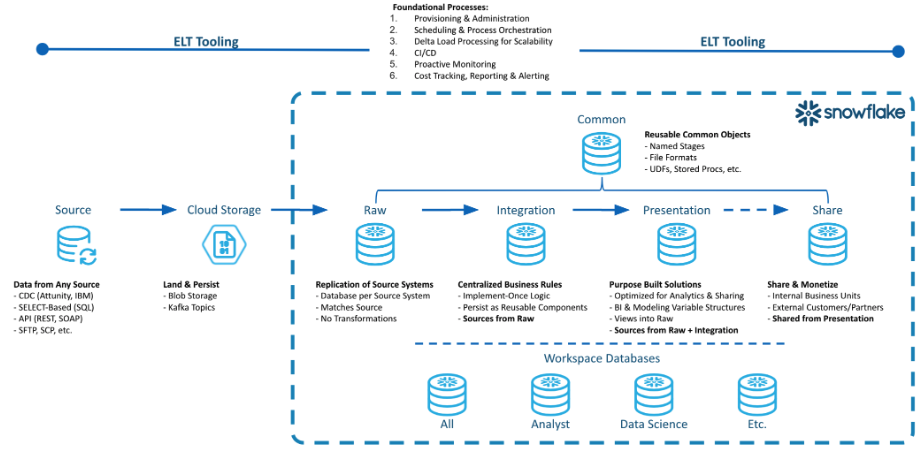

DCDF Data Architecture

Raw Layer

Integration Layer

Presentation Layer

Note Business rules should not be implemented within the Presentation Layer. Using permanent tables for incrementally updated tables is recommended.

Common Database

Workspace Databases

Incremental Processing Concepts

"The best way to process big data, is to turn it into small data"

Three steps for Incremental Processing

Step 1 - Define Logical Partitions

In this quickstart order date will be used as the logical partition. The order date will define how to identify new or changed data.

Step 2 - Identify Impacted Partitions

Step 3 - Incrementally Process those Partitions

Define Logical Partitions

Identify Impacted Partitions

Incrementally Process those Partitions

Lab Overview

Included in the code repository are additional table scripts that can be used to build out a dimensional model using these same concepts.

Lab Structure

Lab summary

DCDF Data Architecture Layers

Quickstart Setup

Clone Repository for Quickstart

NOTE: This sample code contains additional tables that we will not go through as part of the quickstart. They are just a continuation of the patterns we will be discussing to build out a purpose built dimensional model sample.

Sample Code Information

Snowflake Setup

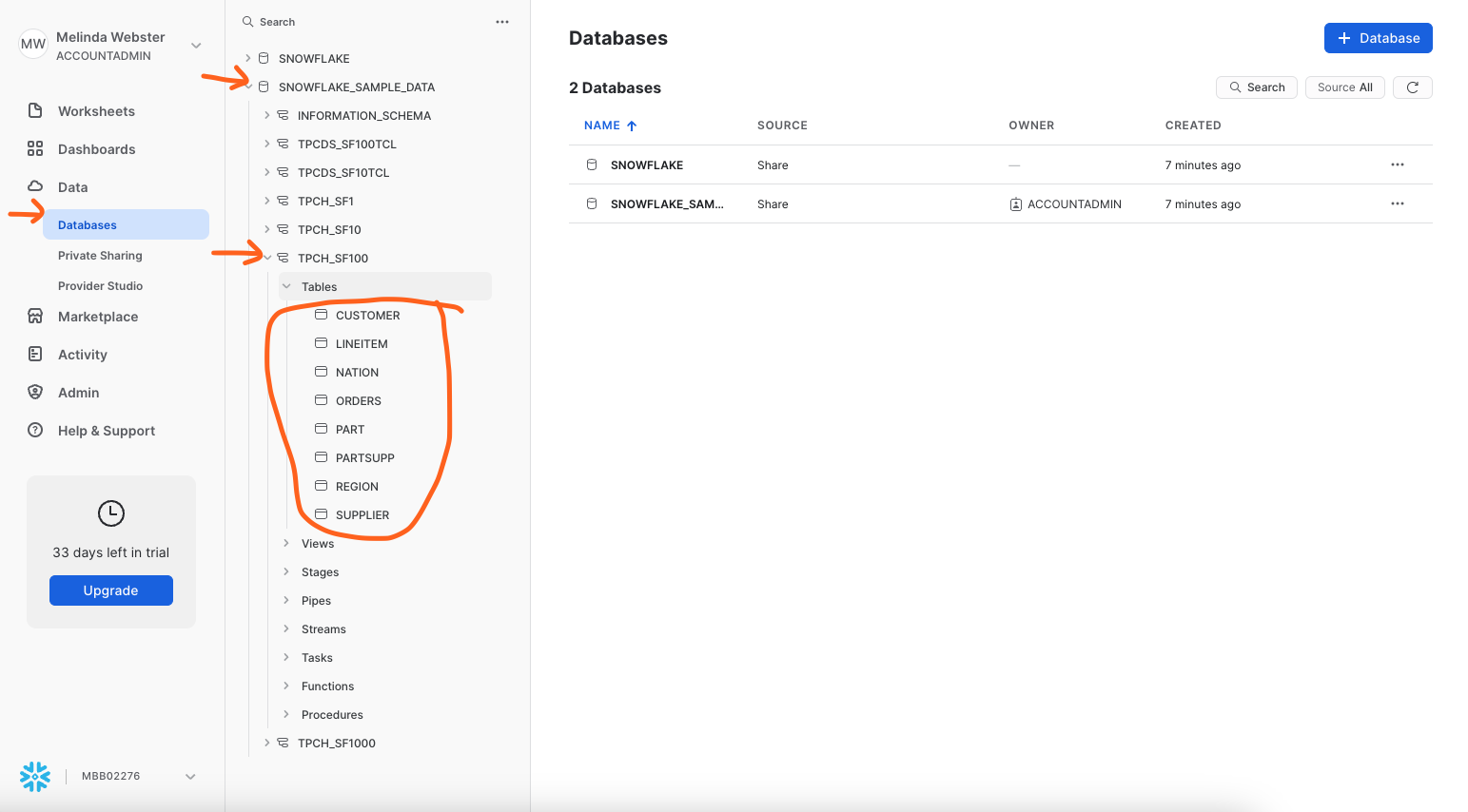

Sample Data Set

Creating Example Databases, Schemas, Tables and Warehouse

snowsql -a <account_name> -u <username> -r sysadmin -D l_env=dev -f ddl_orch.sql -o output_file=ddl_orch.out

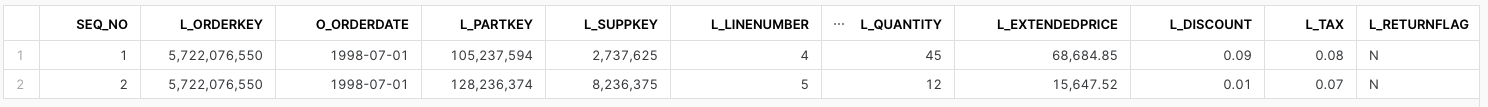

Example Line Items

-- Sample Order
select
              row_number() over(order by uniform( 1, 60, random() ) ) as seq_no
             ,l.l_orderkey
             ,o.o_orderdate
             ,l.l_partkey
             ,l.l_suppkey
             ,l.l_linenumber
             ,l.l_quantity
             ,l.l_extendedprice
             ,l.l_discount
             ,l.l_tax
             ,l.l_returnflag
             ,l.l_linestatus
             ,l.l_shipdate
             ,l.l_commitdate
             ,l.l_receiptdate
             ,l.l_shipinstruct
             ,l.l_shipmode
             ,l.l_comment
        from
            snowflake_sample_data.tpch_sf1000.orders o
            join snowflake_sample_data.tpch_sf1000.lineitem l
              on l.l_orderkey = o.o_orderkey
        where
                o.o_orderdate >= to_date('7/1/1998','mm/dd/yyyy')
            and o.o_orderdate  < to_date('7/2/1998','mm/dd/yyyy')
            and l_orderkey = 5722076550
            and l_partkey in ( 105237594, 128236374);

Data Acquistion

Step 1 - Explain code snippets

LINE_ITEM_ACQ.SQL

use database DEV_WEBINAR_ORDERS_RL_DB;
use schema   TPCH;

-- Set variables for this sample data for the time frame to acquire
set l_start_dt = dateadd( day, -16, to_date( '1998-07-02', 'yyyy-mm-dd' ) );
set l_end_dt   = dateadd( day,   1, to_date( '1998-07-02', 'yyyy-mm-dd' ) );

-- run this 2 or 3 times to produce overlapping files with new and modified records.
copy into
    @~/line_item
from
(
    with l_line_item as
    (
        select
              row_number() over(order by uniform( 1, 60, random() ) ) as seq_no
             ,l.l_orderkey
             ,o.o_orderdate
             ,l.l_partkey
             ,l.l_suppkey
             ,l.l_linenumber
             ,l.l_quantity
             ,l.l_extendedprice
             ,l.l_discount
             ,l.l_tax
             ,l.l_returnflag
             ,l.l_linestatus
             ,l.l_shipdate
             ,l.l_commitdate
             ,l.l_receiptdate
             ,l.l_shipinstruct
             ,l.l_shipmode
             ,l.l_comment
        from
            snowflake_sample_data.tpch_sf1000.orders o
            join sample_data.tpch_sf1000.lineitem l
              on l.l_orderkey = o.o_orderkey
        where
                o.o_orderdate >= $l_start_dt
            and o.o_orderdate  < $l_end_dt
    )
    select
         l.l_orderkey
        ,l.o_orderdate
        ,l.l_partkey
        ,l.l_suppkey
        ,l.l_linenumber
        ,l.l_quantity
        ,l.l_extendedprice
        ,l.l_discount
        ,l.l_tax
        ,l.l_returnflag
        -- simulate modified data by randomly changing the status
        ,case uniform( 1, 100, random() )
            when  1 then 'A'
            when  5 then 'B'
            when 20 then 'C'
            when 30 then 'D'
            when 40 then 'E'
            else l.l_linestatus
         end                            as l_linestatus
        ,l.l_shipdate
        ,l.l_commitdate
        ,l.l_receiptdate
        ,l.l_shipinstruct
        ,l.l_shipmode
        ,l.l_comment
        ,current_timestamp()            as last_modified_dt -- generating a last modified timestamp as part of data acquisition.
    from
        l_line_item l
    order by
        l.l_orderkey
)
file_format      = ( type=csv field_optionally_enclosed_by = '"' )
overwrite        = false
single           = false
include_query_id = true
max_file_size    = 16000000
;

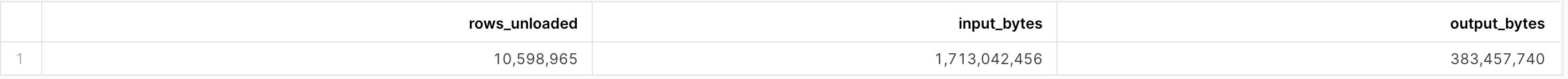

Step 2 - Execute the code and Verify results

LINE_ITEM_ACQ.SQL

use database DEV_WEBINAR_ORDERS_RL_DB;
use schema   TPCH;
use warehouse dev_webinar_wh;

-- Set variables for this sample data for the time frame to acquire
set l_start_dt = dateadd( day, -16, to_date( '1998-07-02', 'yyyy-mm-dd' ) );
set l_end_dt   = dateadd( day,   1, to_date( '1998-07-02', 'yyyy-mm-dd' ) );

select $l_start_dt, $l_end_dt;

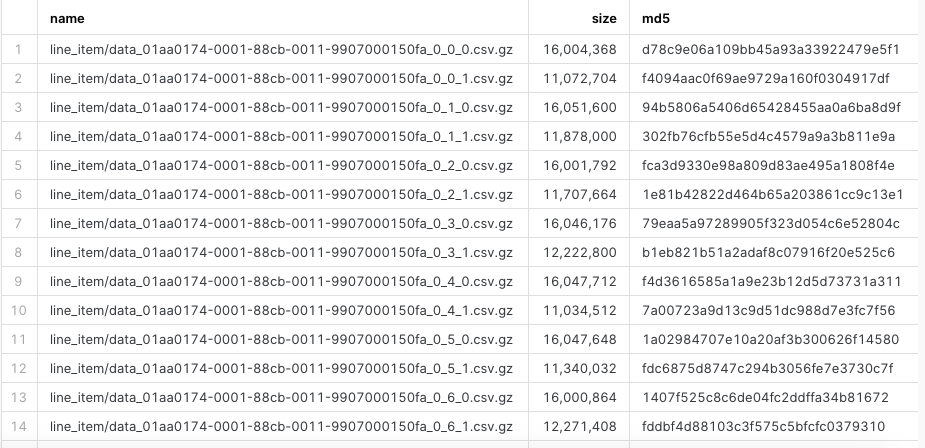

list @~/line_item;

PART_ACQ.SQL

use database DEV_WEBINAR_ORDERS_RL_DB;
use schema   TPCH;
use warehouse dev_webinar_wh;

ORDERS_ACQ.SQL

use database DEV_WEBINAR_ORDERS_RL_DB;
use schema   TPCH;
use warehouse dev_webinar_wh;

PARTSUPP_ACQ.SQL

use database DEV_WEBINAR_ORDERS_RL_DB;
use schema   TPCH;
use warehouse dev_webinar_wh;

Raw Layer

Staging the data

This diagram illustrates the first steps of loading the new data files into the raw layer tables.

• Incremental Processing Step 1 is to define the logical partitions. In the line item data we have identified the orderdate as the logical partition.
• New data files from the Online Orders data source are placed into cloud storage.
• A Truncate/Reload pattern is used here to load the LINE_ITEM_STG table.
• First we truncate the prior data, and then load the new data into the LINE_ITEM_STG table.

Step 1 - Explain code snippets

LINE_ITEM_STG_LD.SQL

truncate table line_item_stg;

-- perform bulk load
copy into
    line_item_stg
from
    (
    select
         s.$1                                            -- l_orderkey
        ,s.$2                                            -- o_orderdate
        ,s.$3                                            -- l_partkey
        ,s.$4                                            -- l_suppkey
        ,s.$5                                            -- l_linenumber
        ,s.$6                                            -- l_quantity
        ,s.$7                                            -- l_extendedprice
        ,s.$8                                            -- l_discount
        ,s.$9                                            -- l_tax
        ,s.$10                                           -- l_returnflag
        ,s.$11                                           -- l_linestatus
        ,s.$12                                           -- l_shipdate
        ,s.$13                                           -- l_commitdate
        ,s.$14                                           -- l_receiptdate
        ,s.$15                                           -- l_shipinstruct
        ,s.$16                                           -- l_shipmode
        ,s.$17                                           -- l_comment
        ,s.$18                                           -- last_modified_dt
        ,metadata$filename                               -- dw_file_name
        ,metadata$file_row_number                        -- dw_file_row_no
        ,current_timestamp()                             -- dw_load_ts
    from
        @~ s
    )
purge         = true
pattern       = '.*line_item/data.*\.csv\.gz'
file_format   = ( type=csv field_optionally_enclosed_by = '"' )
on_error      = skip_file
--validation_mode = return_all_errors
;

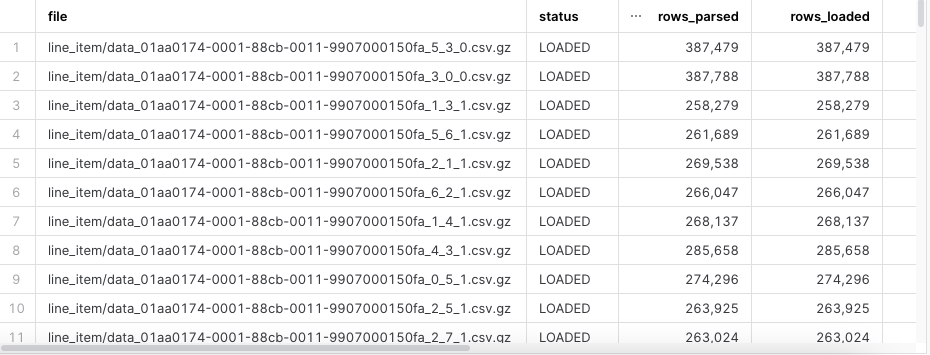

Step 2 - Execute code and Verify Results

LINE_ITEM_STG_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

truncate table line_item_stg;

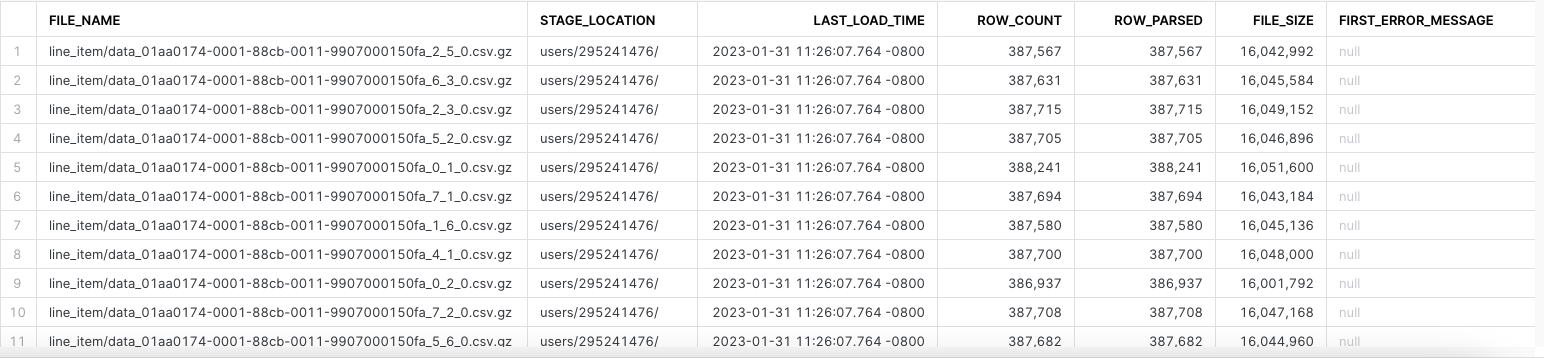

select
    *
from
    table(information_schema.copy_history(table_name=>'LINE_ITEM_STG', start_time=> dateadd(hours, -1, current_timestamp())))
where
    status = 'Loaded'
order by
    last_load_time desc
;

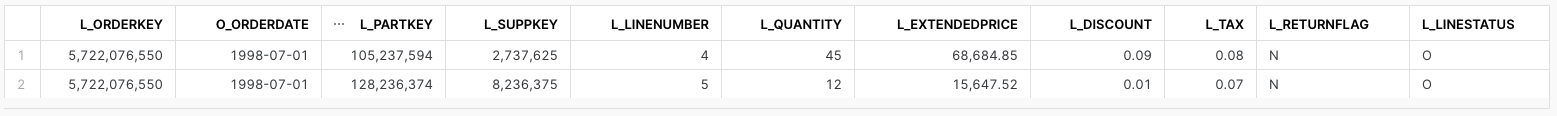

select *
from dev_webinar_orders_rl_db.tpch.line_item_stg
where l_orderkey = 5722076550
and l_partkey in ( 105237594, 128236374); -- 2 lines

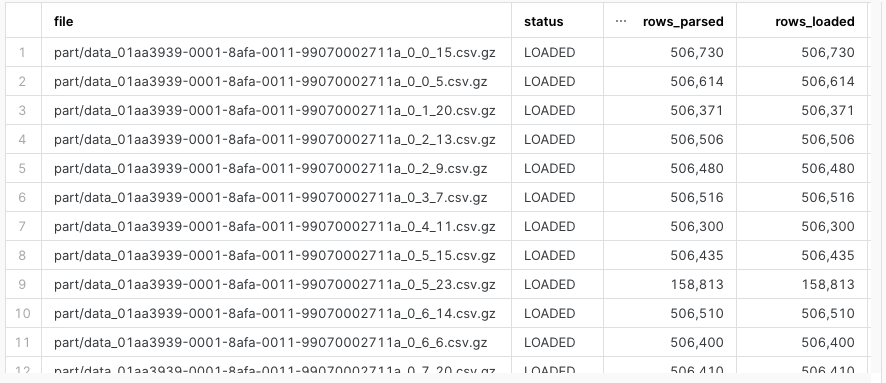

PART_STG_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

truncate table part_stg;

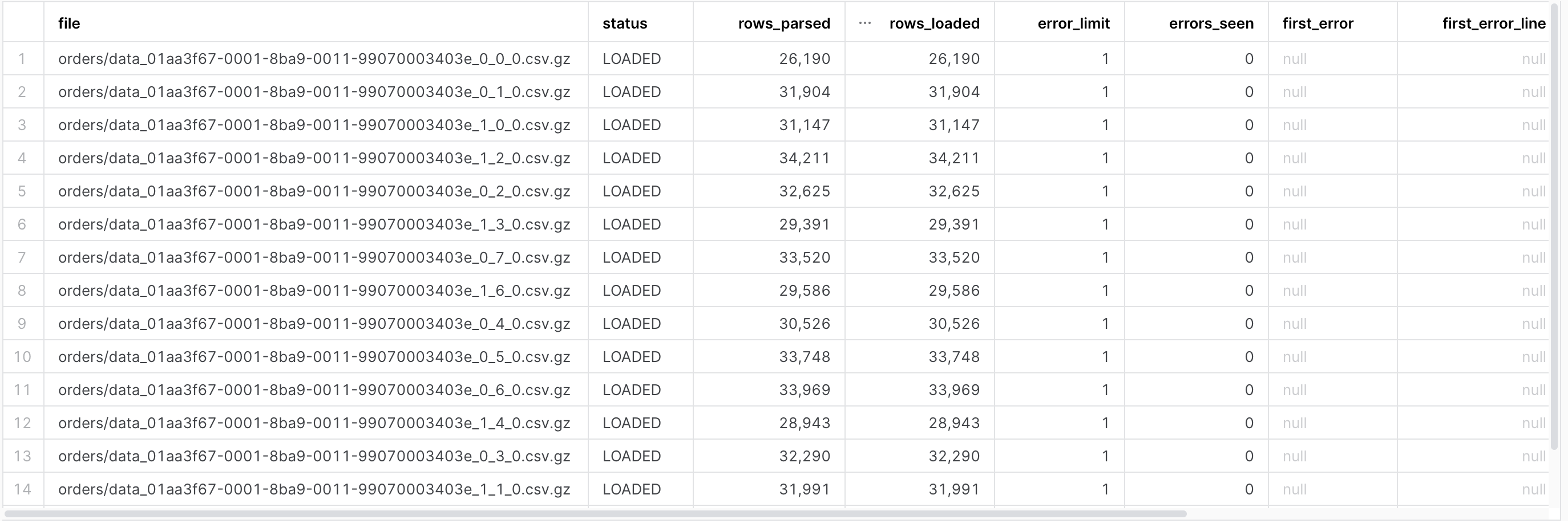

ORDERS_STG_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

truncate table orders_stg;

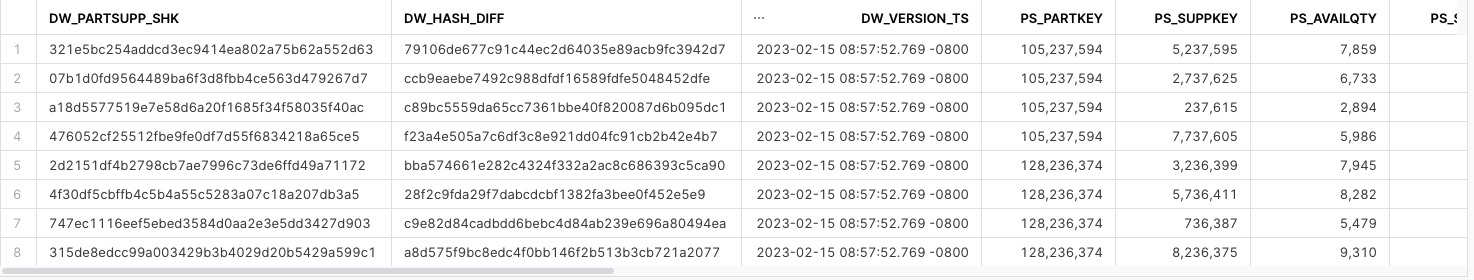

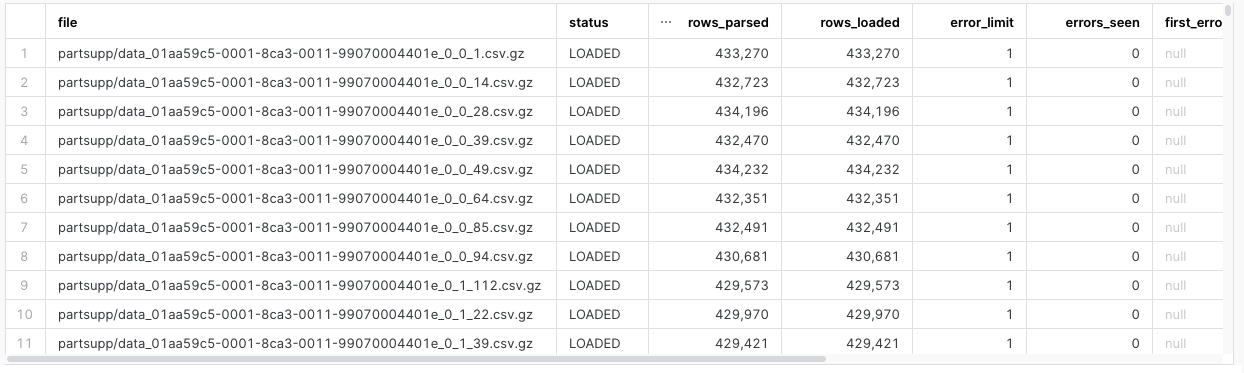

PARTSUPP_STG_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

truncate table partsupp_stg;

Identify Impacted Partitions

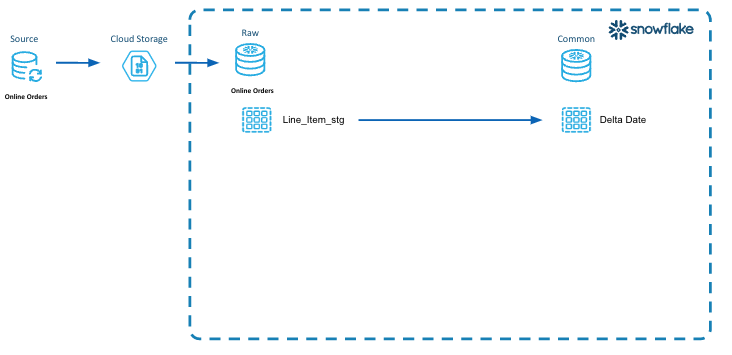

In this diagram illustrates the concept of identifying the impacted partitions, persisting them to be utilized in all the layers of the data architecture to incrementally process the data.

• Incremental Processing Step 2 is to identify the impacted partitions.
• In this diagram, we select all the distinct orderdates from the LINE_ITEM_STG table that are impacted by the new data that was loaded.
• Then we persist those dates into a table called "dw_delta_date" so that we can utilize those impacted partitions to do our incremental processing at each layer (Raw, Integration and Presentation).

Step 1 - Explain code snippets

DW_DELTA_DATE_LD.SQL

insert overwrite into dw_delta_date
with l_delta_date as
(
    select distinct
        o_orderdate as event_dt
    from
        dev_webinar_orders_rl_db.tpch.line_item_stg
)
select
     event_dt
    ,current_timestamp()            as dw_load_ts
from
    l_delta_date
order by
    1
;

DW_DELTA_DATE_RANGE_F.SQL (Additional Information)

use schema   &{l_common_schema};;

create or replace function dw_delta_date_range_f
(
    p_period_type_cd   varchar
)
returns table( start_dt timestamp_ltz, end_dt timestamp_ltz )
as
$$
    select
         start_dt
        ,end_dt
    from
        (
        select
             case lower( p_period_type_cd )
                 when 'all'     then current_date()
                 when 'day'     then date_trunc( day, event_dt )
                 when 'week'    then date_trunc( week, event_dt )
                 when 'month'   then date_trunc( month, event_dt )
                 when 'quarter' then date_trunc( quarter, event_dt )
                 when 'year'    then date_trunc( year, event_dt )
                 else current_date()
             end                as partition_dt
            ,min( event_dt ) as start_dt
            ,dateadd( day, 1, max( event_dt ) ) as end_dt  -- To provide end date
        from
            dw_delta_date
        group by
            1
        )
    order by
        1
$$
;

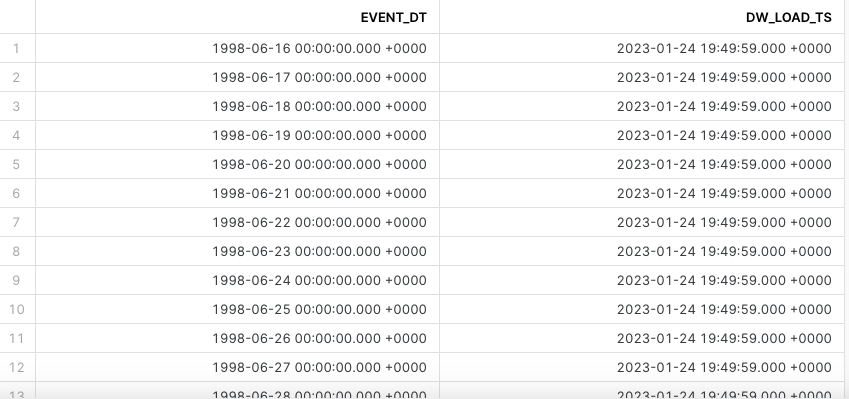

Step 2 - Execute code and Verify Results

DW_DELTA_DATE_LD.SQL

use database dev_webinar_common_db;
use schema util;
use warehouse dev_webinar_wh;

select *
from dev_webinar_common_db.util.dw_delta_date
order by event_dt;

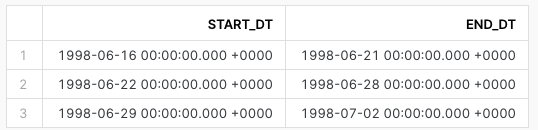

DW_DELTA_DATE_RANGE_F.SQL (Query the table function)

select start_dt, end_dt
FROM table(dev_webinar_common_db.util.dw_delta_date_range_f('week'))
order by 1;

Incrementally Process

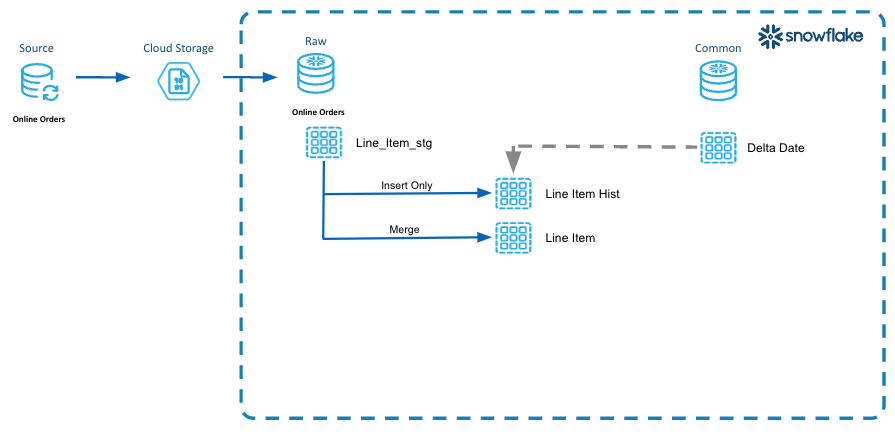

In this diagram we are illustrating the concept of "looping" through the impacted partitions and processing only that data impacted into the persistent tables in the raw layer.

• Incremental Processing Step 3 is to utilize the impacted partitions to process the data through each of the layers.
• Here we are using the order dates stored in the DW_DELTA_DATE table to identify the dates that need to be processed into the LINE_ITEM_HIST and LINE_ITEM tables.
• In the LINE_ITEM_HIST table we are capturing the life cycle of the rows as they change. This is for audit purposes or tracking.
• In the LINE_ITEM table, we are peristing the current state of that line_item row.

Step 1 - Explain code snippets

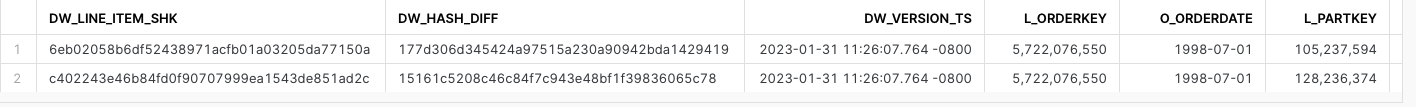

LINE_ITEM_HIST_LD.SQL

execute immediate $$

declare
  l_start_dt date;
  l_end_dt   date;

declare
  ...
  c1 cursor for select start_dt, end_dt FROM table(dev_webinar_common_db.util.dw_delta_date_range_f('week')) order by 1;

begin
  --
  -- Loop through the dates to incrementally process based on the logical partition definition.
  -- In this example, the logical partitions are by week.
  --
  for record in c1 do
    l_start_dt := record.start_dt;
    l_end_dt   := record.end_dt;
    ...
  end for;

end;

insert into line_item_hist
with l_stg as
    (
        --
        -- Driving CTE to identify all records in the logical partition to be processed.
        select
            -- generate hash key and hash diff to streamline processing
             sha1_binary( concat( s.l_orderkey, '|', s.l_linenumber ) )  as dw_line_item_shk
            --
            -- note that last_modified_dt is not included in the hash diff since it only represents recency of the record versus an
            -- actual meaningful change in the data
            ,sha1_binary( concat( s.l_orderkey
                                         ,'|', coalesce( to_char( s.o_orderdate, 'yyyymmdd' ), '~' )
                                         ,'|', s.l_linenumber
                                         ,'|', coalesce( to_char( s.l_partkey ), '~' )
                                         ,'|', coalesce( to_char( s.l_suppkey ), '~' )
                                         ,'|', coalesce( to_char( s.l_quantity ), '~' )
                                         ,'|', coalesce( to_char( s.l_extendedprice ), '~' )
                                         ,'|', coalesce( to_char( s.l_discount ), '~' )
                                         ,'|', coalesce( to_char( s.l_tax ), '~' )
                                         ,'|', coalesce( to_char( s.l_returnflag ), '~' )
                                         ,'|', coalesce( to_char( s.l_linestatus ), '~' )
                                         ,'|', coalesce( to_char( s.l_shipdate, 'yyyymmdd' ), '~' )
                                         ,'|', coalesce( to_char( s.l_commitdate, 'yyyymmdd' ), '~' )
                                         ,'|', coalesce( to_char( s.l_receiptdate, 'yyyymmdd' ), '~' )
                                         ,'|', coalesce( s.l_shipinstruct, '~' )
                                         ,'|', coalesce( s.l_shipmode, '~' )
                                         ,'|', coalesce( s.l_comment, '~' )
                                )

                        )               as dw_hash_diff
            ,s.*
        from
            line_item_stg s

insert into line_item_hist
with l_stg as
    (
        --
        -- Driving CTE to identify all records in the logical partition to be processed.
        select
            ...
        from
            line_item_stg s
        where
                s.o_orderdate >= :l_start_dt
            and s.o_orderdate  < :l_end_dt
    )

,l_deduped as
    (
        --
        -- Dedupe the records from the staging table.
        -- This assumes that there may be late arriving or duplicate data that were loaded
        -- Need to identify the most recent record and use that to update the Current state table.
        -- as there is no reason to process each individual change in the record, the last one would have the most recent updates
        select
            *
        from
            l_stg
        qualify
            row_number() over( partition by dw_hash_diff order by last_modified_dt desc, dw_file_row_no )  = 1
    )

    select
        ...
    from
        l_deduped s
    where
        s.dw_hash_diff not in
        (
            -- Select only the rows in that logical partition from the final table.
            select dw_hash_diff from line_item_hist
            where
                    o_orderdate >= :l_start_dt
                and o_orderdate  < :l_end_dt
        )

    order by
        o_orderdate  -- physically sort rows by a logical partitioning date
    ;

LINE_ITEM_LD.SQL

execute immediate $$

declare
  l_start_dt date;
  l_end_dt   date;
  -- Grab the dates for the logical partitions to process
  c1 cursor for select start_dt, end_dt FROM table(dev_webinar_common_db.util.dw_delta_date_range_f('week')) order by 1;

begin

  --
  -- Loop through the dates to incrementally process based on the logical partition definition.
  -- In this example, the logical partitions are by week.
  --
  for record in c1 do
    l_start_dt := record.start_dt;
    l_end_dt   := record.end_dt;
    ...

       with l_stg as
        (
            --
            -- Driving CTE to identify all records in the logical partition to be processed
            --
            select
                -- generate hash key and hash diff to streamline processing
                 sha1_binary( concat( s.l_orderkey, '|', s.l_linenumber ) )  as dw_line_item_shk
                --
                -- note that last_modified_dt is not included in the hash diff since it only represents recency of the record versus an
                -- actual meaningful change in the data
                --
                ,sha1_binary( concat( s.l_orderkey
                                     ,'|', coalesce( to_char( s.o_orderdate, 'yyyymmdd' ), '~' )
                                     ,'|', s.l_linenumber
                                     ,'|', coalesce( to_char( s.l_partkey ), '~' )
                                     ,'|', coalesce( to_char( s.l_suppkey ), '~' )
                                     ,'|', coalesce( to_char( s.l_quantity ), '~' )
                                     ,'|', coalesce( to_char( s.l_extendedprice ), '~' )
                                     ,'|', coalesce( to_char( s.l_discount ), '~' )
                                     ,'|', coalesce( to_char( s.l_tax ), '~' )
                                     ,'|', coalesce( to_char( s.l_returnflag ), '~' )
                                     ,'|', coalesce( to_char( s.l_linestatus ), '~' )
                                     ,'|', coalesce( to_char( s.l_shipdate, 'yyyymmdd' ), '~' )
                                     ,'|', coalesce( to_char( s.l_commitdate, 'yyyymmdd' ), '~' )
                                     ,'|', coalesce( to_char( s.l_receiptdate, 'yyyymmdd' ), '~' )
                                     ,'|', coalesce( s.l_shipinstruct, '~' )
                                     ,'|', coalesce( s.l_shipmode, '~' )
                                     ,'|', coalesce( s.l_comment, '~' )
                                    )

                            )               as dw_hash_diff
                ,s.*
            from
                line_item_stg s
            where
                    s.o_orderdate >= :l_start_dt
                and s.o_orderdate  < :l_end_dt
        )

,l_deduped as
    (
        --
        -- Dedupe the records from the staging table.
        -- This assumes that there may be late arriving or duplicate data that were loaded
        -- Need to identify the most recent record and use that to update the Current state table.
        -- as there is no reason to process each individual change in the record, the last one would have the most recent updates
        select
            *
        from
            l_stg
        qualify
            row_number() over( partition by dw_hash_diff order by last_modified_dt desc, dw_file_row_no )  = 1
    )

,l_tgt as
        (
            --
            -- Select the records in the logical partition from the current table.
            -- Its own CTE, for partition pruning efficiencies
            select *
            from line_item
            where
                    o_orderdate >= :l_start_dt
                and o_orderdate  < :l_end_dt
        )

-- Merge Pattern
    --
    merge into line_item tgt using
    (
      ...
        select
             current_timestamp()        as dw_version_ts
            ,s.*
        from
            l_deduped s
            left join l_tgt t on
                t.dw_line_item_shk = s.dw_line_item_shk
        where
            -- source row does not exist in target table
            t.dw_line_item_shk is null
            -- or source row is more recent and differs from target table
            or (
                    t.last_modified_dt  < s.last_modified_dt
                and t.dw_hash_diff     != s.dw_hash_diff
               )
        order by
            s.o_orderdate  -- physically sort rows by logical partitioning date
    ) src

-- Merge Pattern
    --
    merge into line_item tgt using
    (
      ...
    on
    (
            tgt.dw_line_item_shk = src.dw_line_item_shk
        and tgt.o_orderdate     >= :l_start_dt
        and tgt.o_orderdate      < :l_end_dt
    )

Step 2 - Execute code and Verify Results

LINE_ITEM_HIST_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

If you are using the Snowflake Extension for VS Code to run the scripts, the SHA1_BINARY fields will not be displayed properly. To confirm that the SHA1_BINARY was created properly, run the following query in Snowflake.

select *
from dev_webinar_orders_rl_db.tpch.line_item_hist
where l_orderkey = 5722076550
and l_partkey in ( 105237594, 128236374)
order by 1;

LINE_ITEM_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

select *
from dev_webinar_orders_rl_db.tpch.line_item
where l_orderkey = 5722076550
and l_partkey in ( 105237594, 128236374)
order by 1;

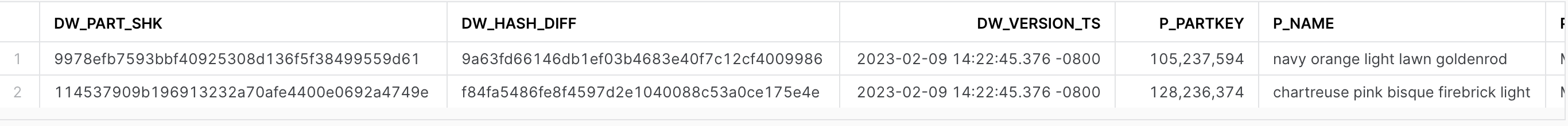

PART_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

select *
from dev_webinar_orders_rl_db.tpch.part
where p_partkey in ( 105237594, 128236374);

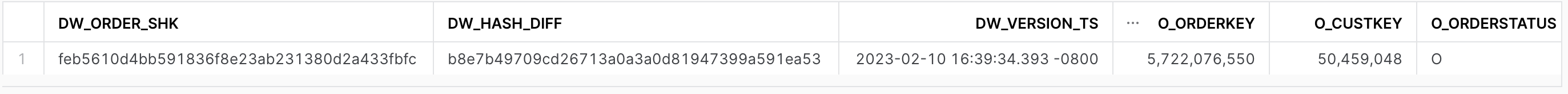

ORDER_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

select *
from dev_webinar_orders_rl_db.tpch.orders
where o_orderkey = 5722076550;

PARTSUPP_LD.SQL

use role     sysadmin;
use database dev_webinar_orders_rl_db;
use schema   tpch;
use warehouse dev_webinar_wh;

select *
from dev_webinar_orders_rl_db.tpch.partsupp
where ps_partkey in ( 105237594, 128236374);

Integration Layer

This diagram illustrates the steps for incremental processing units of work in the integration layer of the DCDF data architecture.

• A unit of work has been identified where the line item margin needs to be derived/calculated for each line item.
• This is an isolated unit of work with business rules that should be incrementally processed each time new or changed line items are processed.
• Extensible, ease of maintenance for that unit of work. As rules change to derive the margin, then they can be added/changed here in one place.
• The impacted logical partitions have been identified and will be incrementally processed.

Step 1 - Explain code snippets

LINE_ITEM_MARGIN_LD.SQL

execute immediate $$

declare
  l_start_dt date;
  l_end_dt   date;
  -- Grab the dates for the logical partitions to process
  c1 cursor for select start_dt, end_dt FROM table(dev_webinar_common_db.util.dw_delta_date_range_f('week')) order by 1;

begin

  --
  -- Loop through the dates to incrementally process based on the logical partition definition.
  -- In this example, the logical partitions are by week.
  --
  for record in c1 do
    l_start_dt := record.start_dt;
    l_end_dt   := record.end_dt;

merge into line_item_margin t using
    (
        with l_src as
        (
            --
            -- Driving CTE to identify all the records in the logical partition to be process
            --
            select
                 s.dw_line_item_shk
                ,s.o_orderdate
                ,s.l_extendedprice - (s.l_quantity * p.ps_supplycost ) as margin_amt
                ,s.last_modified_dt
            from
                dev_webinar_orders_rl_db.tpch.line_item s
                join dev_webinar_orders_rl_db.tpch.partsupp p
                  on ( p.ps_partkey = s.l_partkey
                       and p.ps_suppkey = s.l_suppkey )
            where
                    s.o_orderdate >= :l_start_dt
                and s.o_orderdate  < :l_end_dt
        )
        ,l_tgt as
        (
            --
            -- Select the records in the logical partition from the current table.
            -- Its own CTE, for partition pruning efficiencies
            select *
            from line_item_margin
            where
                    o_orderdate >= :l_start_dt
                and o_orderdate  < :l_end_dt
        )
        select
             current_timestamp()        as dw_update_ts
            ,s.*
        from
            l_src s
            left join l_tgt t on
                t.dw_line_item_shk = s.dw_line_item_shk
        where
            -- source row does not exist in target table
            t.dw_line_item_shk is null
            -- or source row is more recent and differs from target table
            or (
                    t.last_modified_dt  < s.last_modified_dt
                and t.margin_amt       != s.margin_amt
               )
        order by
            s.o_orderdate
    ) s
    on
    (
        t.dw_line_item_shk = s.dw_line_item_shk
        and t.o_orderdate >= :l_start_dt
        and t.o_orderdate  < :l_end_dt
    )

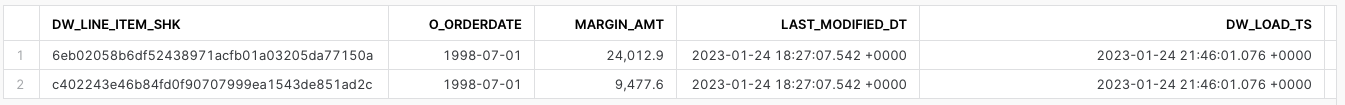

Step 2 - Execute code and Verify Results

LINE_ITEM_MARGIN_LD.SQL

use role     sysadmin;
use database dev_webinar_il_db;
use schema   main;
use warehouse dev_webinar_wh;

-- Integration
select m.*
from dev_webinar_il_db.main.line_item_margin m
    join dev_webinar_orders_rl_db.tpch.line_item l
where l.l_orderkey = 5722076550
and l.l_partkey in ( 105237594, 128236374)
and m.dw_line_item_shk = l.dw_line_item_shk;

Presentation Layer

In this diagram illustrates the steps for incremental processing for the Presentation layer of the DCDF data architecture.

• Order_line_fact is a purpose built solution for consumption and analytics.
• Dimensional model as an example to provide a solution around the orders lines and consumption at that atomic level of data.
• The impacted logical partitions have been identified and will be incrementally processed in the presentation layer.

Step 1 - Explain code snippets

ORDER_LINE_FACT_LD.SQL

execute immediate $$

declare
  l_start_dt date;
  l_end_dt   date;
  -- Grab the dates for the logical partitions to process
  c1 cursor for select start_dt, end_dt FROM table(dev_webinar_common_db.util.dw_delta_date_range_f('week')) order by 1;

begin

  --
  -- Loop through the dates to incrementally process based on the logical partition definition.
  -- In this example, the logical partitions are by week.
  --
  for record in c1 do
    l_start_dt := record.start_dt;
    l_end_dt   := record.end_dt;

-- Delete the records using the logical partition
     -- Very efficient when all the rows are in the same micropartitions.  Mirrors a truncate table in other database platforms.
     delete from order_line_fact
     where orderdate >= :l_start_dt
       and orderdate <  :l_end_dt;

     -- Insert the logical partitioned records into the table
     -- Inserts data from same order date into the same micropartitions
     -- Enables efficient querying of the data for consumption
     insert into order_line_fact
     select
         li.dw_line_item_shk
        ,o.o_orderdate
        ,o.dw_order_shk
        ,p.dw_part_shk
        ,s.dw_supplier_shk
        ,li.l_quantity      as quantity
        ,li.l_extendedprice as extendedprice
        ,li.l_discount      as discount
        ,li.l_tax           as tax
        ,li.l_returnflag    as returnflag
        ,li.l_linestatus    as linestatus
        ,li.l_shipdate
        ,li.l_commitdate
        ,li.l_receiptdate
        ,lim.margin_amt
        ,current_timestamp() as dw_load_ts
     from
         webinar_rl_db.tpch.line_item li
         --
         join webinar_rl_db.tpch.orders o
           on o.o_orderkey = li.l_orderkey
         --
         join webinar_il_db.main.line_item_margin lim
           on lim.dw_line_item_shk = li.dw_line_item_shk
         --
         -- Left outer join in case the part record is late arriving
         --
         left outer join webinar_rl_db.tpch.part p
           on p.p_partkey = li.l_partkey
         --
         -- left outer join in case the supplier record is late arriving
         --
         left outer join webinar_rl_db.tpch.supplier s
           on s.s_suppkey = li.l_suppkey
     where
             li.o_orderdate >= :l_start_dt
         and li.o_orderdate <  :l_end_dt
     order by o.o_orderdate;

execute immediate $$

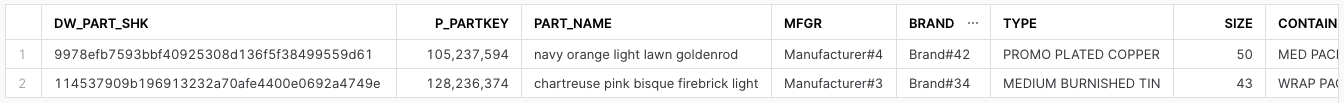

insert overwrite into part_dm
   select
       p.dw_part_shk
      ,p.p_partkey
      ,p.p_name as part_name
      ,p.p_mfgr as mfgr
      ,p.p_brand as brand
      ,p.p_type as type
      ,p.p_size as size
      ,p.p_container as container
      ,p.p_retailprice as retail_price
      ,p.p_comment as comment
      ,d.first_orderdate
      ,p.last_modified_dt
      ,p.dw_load_ts
      ,p.dw_update_ts
   from
       dev_webinar_orders_rl_db.tpch.part p
       left join dev_webinar_il_db.main.part_first_order_dt d
         on d.dw_part_shk = p.dw_part_shk;

Step 2 - Execute code and Verify Results

ORDER_LINE_FACT_LD.SQL

use role     sysadmin;
use database dev_webinar_pl_db;
use schema   main;
use warehouse dev_webinar_wh;

select olf.*
from dev_webinar_pl_db.main.order_line_fact olf
  join dev_webinar_orders_rl_db.tpch.line_item l
    on l.dw_line_item_shk = olf.dw_line_item_shk
where l.l_orderkey = 5722076550
and l.l_partkey in ( 105237594, 128236374);

PART_DM_LD.SQL

use role     sysadmin;
use database dev_webinar_pl_db;
use schema   main;
use warehouse dev_webinar_wh;

select *
from dev_webinar_pl_db.main.part_dm p
where p_partkey in ( 105237594, 128236374);

BONUS -Slowly Changing Dimension

Slowly changing dimension type 2 changes add a new row in the dimension with the updated attribute values. This requires generalizing the primary key of the dimension beyond the natural or durable key because there will potentially be multiple rows describing each member. When a new row is created for a dimension member, a new primary surrogate key is assigned and used as a foreign key in all fact tables from the moment of the update until a subsequent change creates a new dimension key and updated dimension row. - Kimball Group.

Step 1 - Acquistion

CUSTOMER_ACQ.SQL

Step 2 - Raw Layer

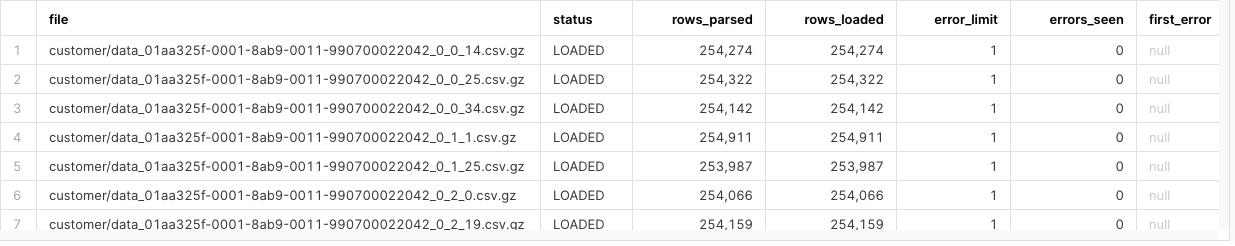

CUSTOMER_STG_LD.SQL

use role     sysadmin;
use database dev_webinar_rl_orders_db;
use schema   tpch;
use warehouse dev_webinar_wh;

select *
from dev_webinar_orders_rl_db.tpch.customer_stg
where c_custkey in (50459048);

DW_DELTA_DATE_LD_BONUS.SQL

use role     sysadmin;
use database dev_webinar_rl_orders_db;
use schema   tpch;
use warehouse dev_webinar_wh;

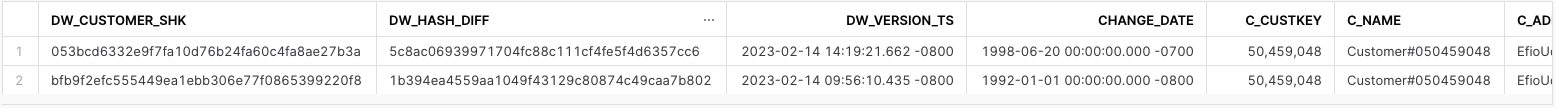

CUSTOMER_HIST_LD.SQL

use role     sysadmin;
use database dev_webinar_rl_orders_db;
use schema   tpch;
use warehouse dev_webinar_wh;

    select
        -- generate hash key and hash diff to streamline processing
        sha1_binary( s.c_custkey || to_char( s.change_date, 'yyyymmdd' ) )  as dw_customer_shk
        --
        -- note that last_modified_dt is not included in the hash diff since it only represents recency of the record versus an
        -- actual meaningful change in the data
        ,sha1_binary( concat( s.c_custkey || to_char( s.change_date, 'yyyymmdd' )
                                     ,'|', coalesce( to_char( s.change_date, 'yyyymmdd'), '~' )
                                     ,'|', coalesce( s.c_name, '~' )
                                     ,'|', coalesce( s.c_address, '~' )
                                     ,'|', coalesce( to_char( s.c_nationkey ), '~' )
                                     ,'|', coalesce( s.c_phone, '~' )
                                     ,'|', coalesce( to_char( s.c_acctbal ), '~' )
                                     ,'|', coalesce( s.c_mktsegment, '~' )
                                     ,'|', coalesce( s.c_comment, '~' )
                            )

                    )               as dw_hash_diff
        ,s.*
    from
        customer_stg s
    where
            s.change_date >= :l_start_dt
        and s.change_date  < :l_end_dt

select *
from dev_webinar_orders_rl_db.tpch.customer_hist
where c_custkey in (50459048)
order by 5;

Step 3 - Integration Layer

Step 4 - Presentation Layer

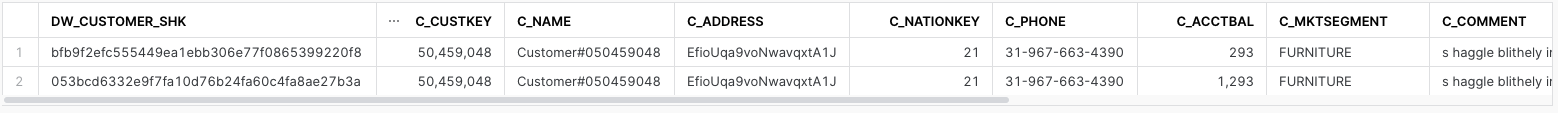

CUSTOMER_DM.SQL

use role     sysadmin;
use database dev_webinar_pl_db;
use schema   main;
use warehouse dev_webinar_wh;

select *
from dev_webinar_pl_db.main.customer_dm
where c_custkey in (50459048)
order by 5;

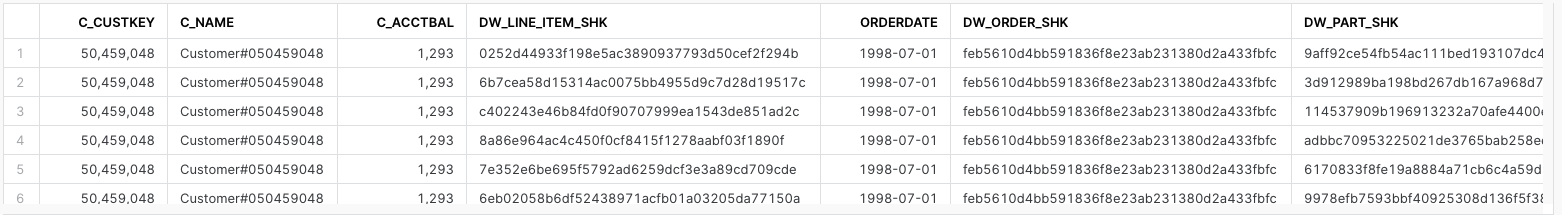

ORDER_LINE_FACT_BONUS_LD.SQL

use role     sysadmin;
use database dev_webinar_pl_db;
use schema   main;
use warehouse dev_webinar_wh;

select
     c.c_custkey
    ,c.c_name
    ,c.c_acctbal
    ,olf.*
from dev_webinar_pl_db.main.customer_dm c
   join dev_webinar_pl_db.main.order_line_fact_bonus olf
     on olf.dw_customer_shk = c.dw_customer_shk
where c.c_custkey in (50459048);
order by olf.orderdate;

Cleanup

-- Cleanup all the objects we created

use role sysadmin;

drop database dev_webinar_orders_rl_db;
drop database dev_webinar_il_db;
drop database dev_webinar_pl_db;
drop database dev_webinar_common_db;

Conclusion & Next Steps

What we have covered

Potential Next Steps
