In this tutorial you will learn how to build native Snowflake connectors. This example uses GitHub issues API as the source of the data. In the next steps we will cover what constitutes a connector, how to build and deploy it and how to build an application UI using Streamlit.

The native connector is build using only Snowflake primitives. The business logic is written in Python using Snowpark library and encapsulated in stored procedures. The procedures constitute the interface to the connector.

To facilitate recurring ingestion of resources the connector uses task on configurable schedule.

The connector consists of the following elements:

Only selected objects will be visible to customer who installed the app. See: docs.

Let's take a look at the structure of this connector.

The src/snowflake_github_connector is a Python package containing all the execution logic of the connector. This package is separated into three modules:

Additionally, the connector has a UI build in Streamlit. The Streamlit dashboard is defined in streamlit_app.py file. Thanks to it the connector can be configured and monitored using Streamlit in Snowflake. Additionally, some of the privileges required by the application can be requested through a pop-up in Streamlit.

Setup script defines objects which are created and needed inside the application. This includes procedures, schemas, tables etc.

Manifest file is required by the native apps model. This file specifies properties of an application. Privileges and references required by the application can be specified inside the manifest file. For more information check manifest docs and requesting privileges docs.

Build script responsible for packaging Python code into a zip file and copying all resources into sf_build directory.

Commands for building and deployign applications are exposed in Makefile, and are also using sql scripts defined in sql/ directory.

The connector configuration is split into two domains:

Connector level configuration lives in the STATE.APP_CONFIGURATION table. This table is meant to keep information like API integration name used by the connector and secret name used for authentication in GitHub.

The table is a key-value table.

Next to the global configuration the connector also stores a configuration for every enabled resource. In case of this example a single resource is represented as org_name/repo_name.

The table is a key-value table.

Apart from configuration table, the connector uses STATE.APP_STATE table to persist a state of any ongoing ingestion.

The state table is a key-value table with an additional timestamp column. To improve the performance, the table is an append only table. This means that creating or updating a value inserts a new row into the table. Reading a key is done by retrieving the newest row with the given key.

Data from GitHub is ingested using external access capabilities of Snowflake.

Snowflake documentation: External network access overview

Example application logs various operations during runtime. By default, those logs are not stored anywhere. To enable log storing please refer to enable loging documentation.

When a repository is enabled the following objects are created:

The task runs every 30 minutes and every repository has a dedicated task.

The ingestion task calls INGEST_DATA procedure which does the following:

1. reads the GitHub Token from secret
2. sends a request to GitHub issues API with authorization headers
3. merges fetched data into sink table
4. checks for a next page link in the response headers
5. if the link is present it repeats the steps from 2 onward
6. if the link is not present the procedure exits

In this approach all the data for a given repository is fetched every time. The data is merged, meaning that the new records are added, while the changed records are updated in the sink table.

As we have learnt in the previous sections the project consists of the three components:

All of those components have to be uploaded to Snowflake prior to creating the app.

Build step for the app consist of:

1. Creating a new sf_build directory on the local machine
2. Creating a wheel artifact (for Python we additionally rename whl file to zip) and putting it in the sf_build folder
3. Copying of the manifest.yml to thesf_build folder
4. Copying of the install.sql to the sf_build folder
5. Copying of the streamlit_app.py to the sf_build folder

The sf_build directory serves as the source of truth about the app definition and its content.

To build the connector execute a convenience script:

Once the sf_build folder is created you can follow to the next step where we will deploy the connector.

In this step we will deploy the connector to a Snowflake account.

Deployment step consists of:

1. Creating a database and stage for app artifacts
2. Uploading the sf_build contents to the newly created stage
3. Creating an application package using the data from the stage

This quickstart uses some convenience scripts for running necessary commands. Those scripts use snowsql. Before proceeding you need to configure snowsql connection to your Snowflake account.

1. Configure snowsql connection according to the documentation.
2. Export the name of your connection in the terminal export CONNECTION=<your connection name>
3. Adjust values for APP_NAME, APP_VERSION, STAGE_DB, STAGE_NAME, WAREHOUSE in the Makefile script. Those values will be used by all the scripts used in this quickstart.

To deploy the connector execute a convenience script:

Now an application package should be created on your account, and you can follow to the next step where you will create a new instance of the connector.

In this step you will install the connector. The installation is encapsulated in a convenience script.

In order to access external resources the connector requires 3 objects to be configured:

The script will run commands like the following ones to bootstrap all necessary objects:

The script will grant some of the required privileges to the application. The rest of the privileges will be requested later through the Streamlit pop-up. The application requires the following privileges:

This translates to queries like those:

The following privileges will be granted using pop-ups inside Streamlit:

To install the connector using the convenience script run the following:

To start the data ingestion you need to configure the connector. To do this go to the Apps tab inside Snowflake and select your connector.

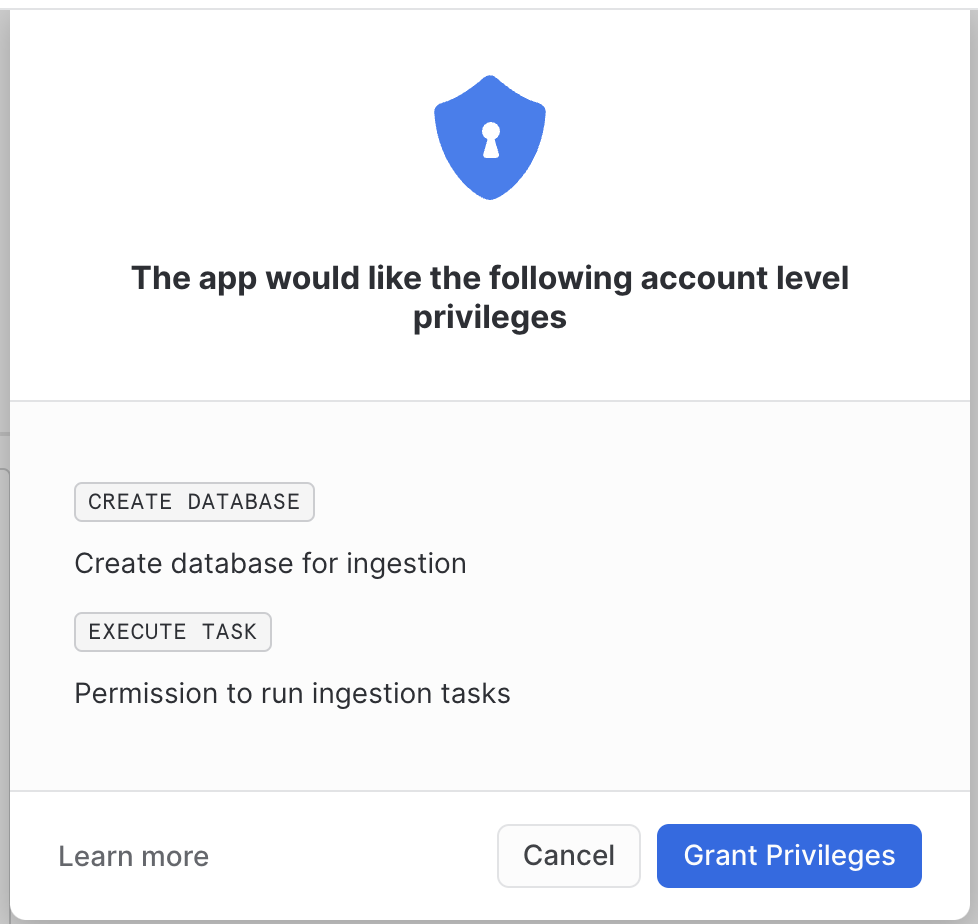

When your connector is loaded by Streamlit a pop-up will be displayed. It will always be displayed at the start of the application, as long as any of the privileges are missing.

First you need to specify what database should be used to store the ingested data. This database will be created, so it needs to have a name that is not used by any other database. Furthermore, a secret and integration that should be used by the connector need to be specified. Use names of the objects you created previously. Names of the objects will be visible in the execution log of the convenience scripts run in the previous steps. By default, created values are the following:

Please note that the grey values visible in the form are just tooltips and are not used as the default values.

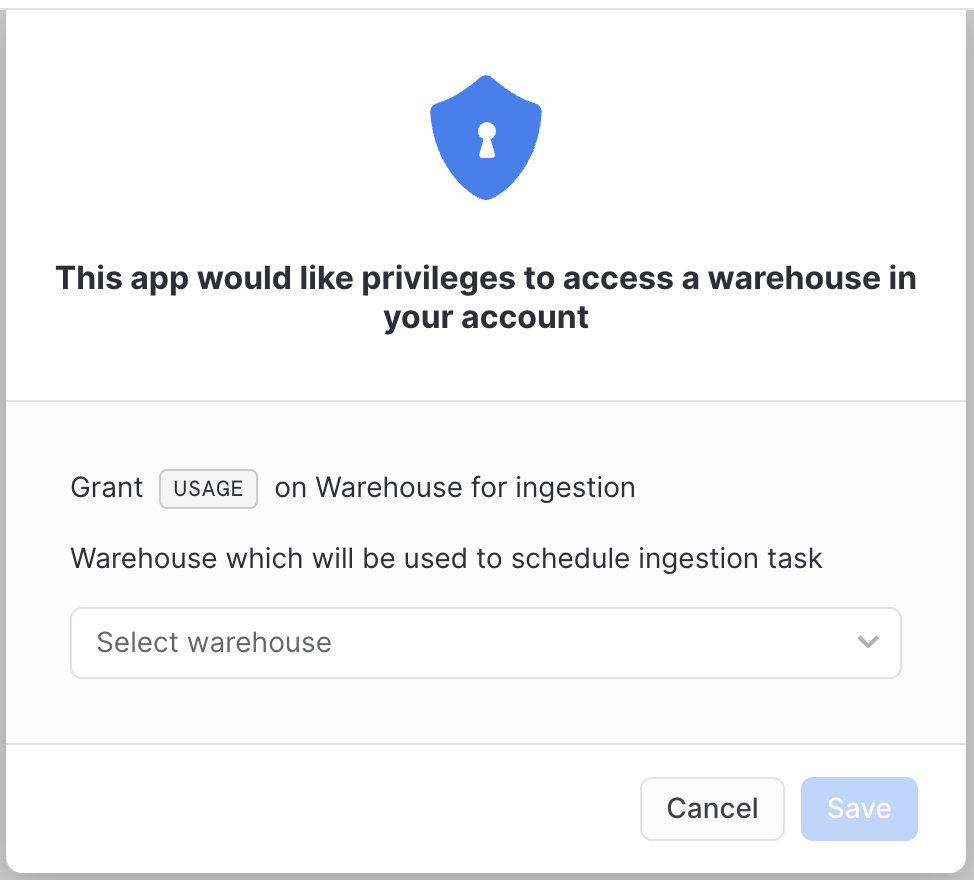

After pressing the Configure button another pop-up will be displayed. It requires the user to choose a warehouse that will be used to schedule the ingestion task. Granting this privilege is necessary for the connector to work properly.

After granting the privilege refresh the application page to ensure that the underlying database connection session is refreshed with all the granted privileges.

Next you can enable a repository for ingestion. You can try Snowflake-Labs/sfquickstarts. Put Snowflake-Labs as an organization name and sfquickstarts as a repository name in the form marked red in the below picture. Once Start ingestion button is pressed a task will be scheduled and the ingestion will start. Configured repository will be visible in the table below the form. More than one repository can be configured.

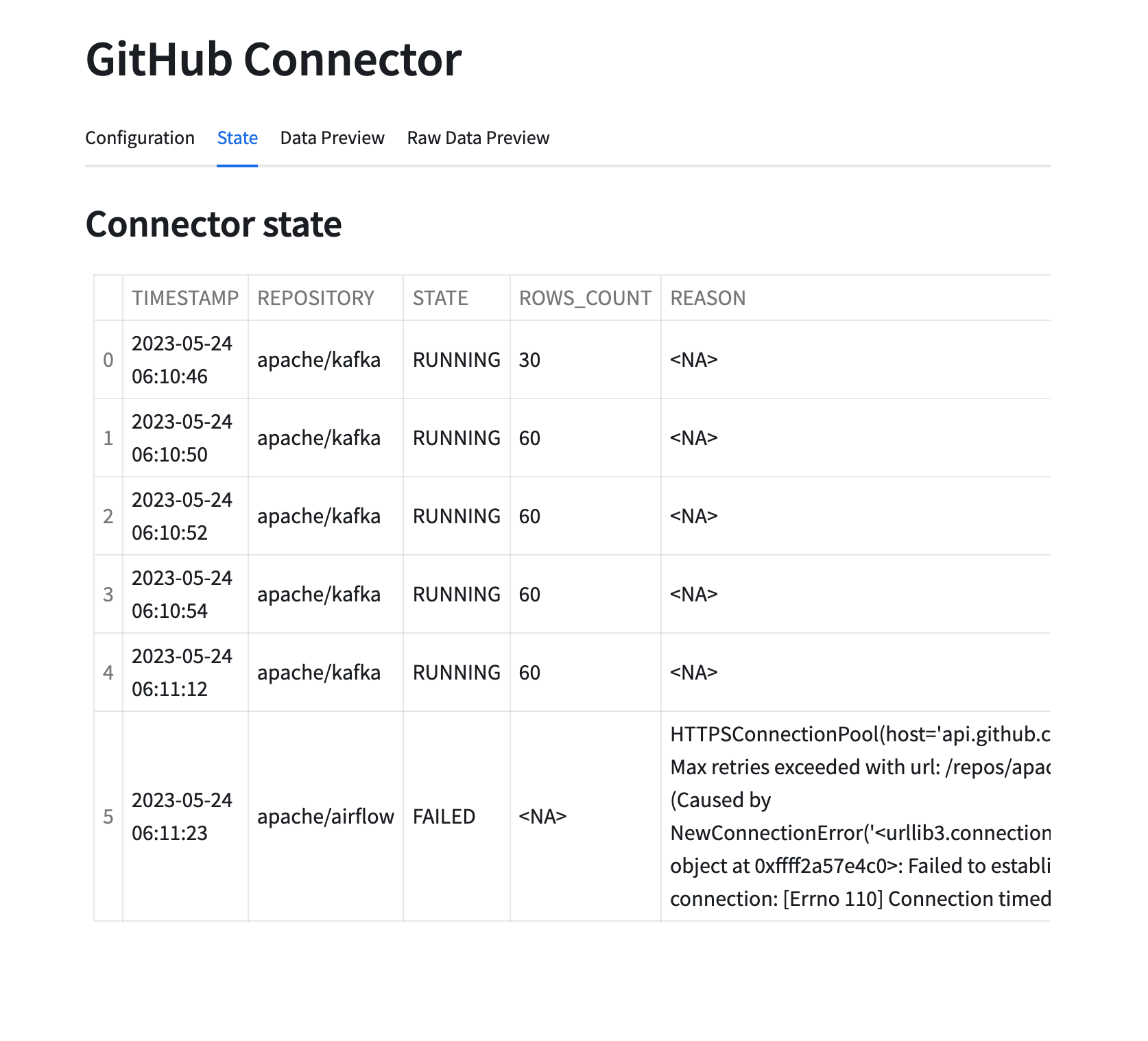

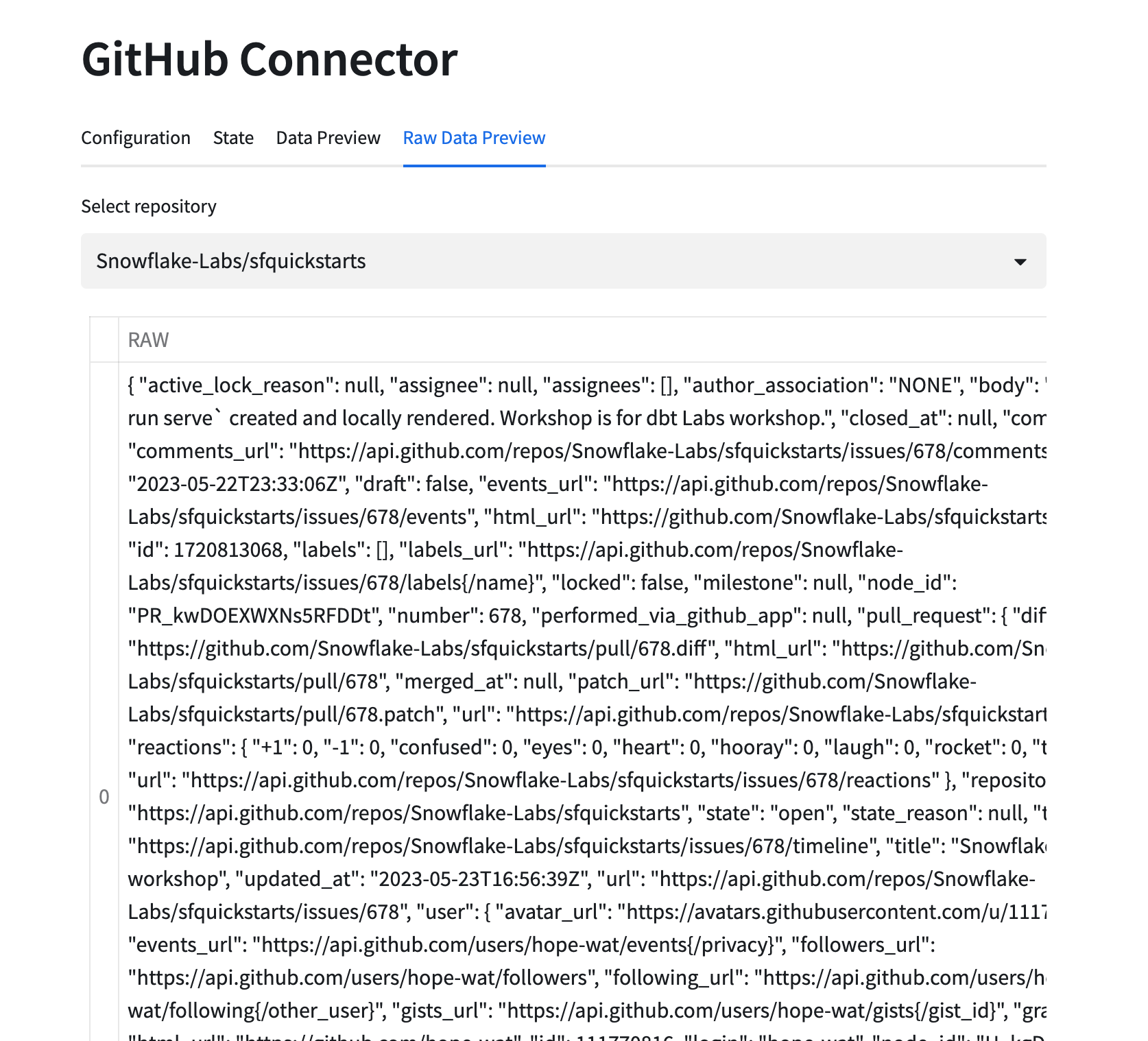

Once the ingestion is started you can monitor its state using state and data preview tabs. It might take some time before any data is visible. You may want to refresh the whole page if data does not appear in a minute or two. If multiple repositories were configured, the visible data can be changed using the selection box.
