Native Connector - Java (Push Based)

Snowflake for Developers GuidesNative Connector - Java (Push Based)

Native Connector - Java (Push Based)

Commercialize

Piotr Hachaj

Overview

In this tutorial you will learn how to build a native Snowflake push based connector. In the following steps we will cover what constitutes a connector, how to build and deploy it and how to build an application UI using Streamlit.

Prerequisites

Basic knowledge of Snowflake Native Apps
Basic knowledge of Java
Snowflake user with accountadmin role
macOS or Linux machine to build a project and run deployment scripts

You will learn

Creating Native Applications in Snowflake
Ingesting data to Snowflake using snowflake-ingestion-sdk
Running Snowflake procedures using snowflake-jdbc
How to optimize merge for the CDC scenario using deferred merge approach

Prepare your local environment

Install Java 11 or later
Install snowsql
Configure snowsql to allow using variables (variable_substitution = True)
Configure snowsql to exit on first error (exit_on_error = True)
Clone the connectors-native-sdk repository and go to ./examples/example-push-based-java-connector

Connector overview

This connector consist of Java Agent and Native Application. Java Agent acts as an application which is close to the data source, it fetches data from the data source and pushes it to Snowflake.

Native Application

runs natively in Snowflake
contains a stored procedure which initializes resources by creating all objects in the database needed for the deferred merge
contains Streamlit UI which visualises data
contains the following database elements:
- schemas:
  - PUBLIC - versioned, used to store all public procedures
  - TASKS - stateful, used for tasks
- procedures:
  - INIT_DESTINATION_DATABASE - procedure which is used to create a destination database for the resources
  - INIT_RESOURCE - procedure which initializes a resource, it creates the following elements in the destination database:

    base table

    delta table

    view which contains merged data from the base and delta tables

    task which periodically merges the data from the delta to the base table
- destination database - a database for all the resource data, it is created outside the Native Application by the INIT_DESTINATION_DATABASE procedure

Only selected objects will be visible to customer who installed the app. See: docs.

Java Agent

a simple Java application
connects to the Native Application
runs INIT_DESTINATION_DATABASE procedure on startup
initializes a new resources using the Native Application's procedure INIT_RESOURCE
- uses snowflake-jdbc library for calling stored procedure
ingests the data to Snowflake
- uses snowflake-ingest-sdk library for ingesting the data
contains a CLI for enabling new resources

Project structure

Let's take a look at the structure of this connector.

├── Makefile
├── example-push-based-java-connector-agent
│    ├── build.gradle
│    └── src
├── example-push-based-java-connector-native-app
│    ├── environment.yml
│    ├── manifest.yml
│    └── scripts
│    │   ├── deploy.sql
│    │   └── install.sql
│    ├── setup.sql
│    └── streamlit_app.py
├── gradle
├── gradlew
├── gradlew.bat
├── imgs
├── integration-test
├── README.md
├── settings.gradle
└── sf_build.sh

Native Application module

Contains files which are needed to create a Snowflake Native App:

manifest.yml - Manifest file required by the native apps model.
setup.sql - This script includes definition of all components that constitute the connector including procedures, schemas and tables.
streamlit_app.py - File which contains the UI of the connector.
scripts/deploy.sql - Script which uploads manifest.yml, setup.sql and streamlit_app.py to Snowflake.
scripts/install.sql - Script which creates a native application from the files uploaded by deploy.sql script.

Java Agent module

Contains Java files that constitute the Agent application and gradle files that are needed to build this application.

sf_build.sh script

Simple script to collect all files needed to deploy Snowflake Native App into sf_build folder. This directory will be used in deployment script.

imgs directory

Images used in README file.

Application logs

Example application logs various operations during runtime. By default, those logs are not stored anywhere. To enable log storing please refer to enable loging documentation.

Connector configuration

Snowsql configuration

This quickstart uses some convenience scripts for running necessary commands. Those scripts use snowsql. Before proceeding you need to configure snowsql connection to your Snowflake account according to documentation.

Generating Pubic and Private Keys

Java Agent uses snowflake-ingestion-sdk library which uses key pair authentication. In order to set up the connection you need to generate Public and Private Keys. To achieve it, run the following commands:

openssl genrsa 2048 | openssl pkcs8 -topk8 -inform PEM -out rsa_key.p8 -nocrypt
openssl rsa -in rsa_key.p8 -pubout -out rsa_key.pub

The commands will create 2 files with a public key (rsa_key.pub) and a private key (rsa_key.p8). The keys will be used in the following steps.

Configure user in Snowflake

Configure a public key for your user by running the following sql command in your Snowflake worksheet. Use the public key generated in the previous step. Key inside the query should not have any whitespaces and should be a one-line string.

ALTER USER <your_user> SET RSA_PUBLIC_KEY='<Your Public Key>';

If your user does not have a password configured, run the following command to set the password.

ALTER USER <your_user> SET PASSWORD = '<Your Password>' MUST_CHANGE_PASSWORD = FALSE;

The password will be needed for the Java Agent to connect to the Native Application using snowflake-jdbc.

Native application configuration

In order to create a native application you need to adjust the value in the Makefile script for:

CONNECTION - a name of snowsql connection defined in previous step

You can also change the rest of the properties:

APP_NAME
APP_VERSION
STAGE_DB
STAGE_NAME

Those values will be used by all scripts used in this quickstart.

Note: After changing APP_NAME you will need to adjust native_application.database_name property in the Java agent configuration step below.

Java agent configuration

In order to build the Java Agent and connect it to Snowflake you need to edit the following properties in /example-push-based-java-connector-agent/src/main/resources/connector.properties:

account - Snowflake account name
user - Snowflake username
jdbc.password - Snowflake password for given user, it will be used to connect to Snowflake via jdbc
warehouse - warehouse which you want to use
ingestion.host - Snowflake host
ingestion.private_key - private key generated in previous step with removed whitespaces (one-line string). To make sure that your private key property does not contain any whitespace at the beginning and at the end you can wrap it with quotes.
jdbc.url - jdbc url which should contain correct Snowflake host
native_application.database_name - this property has to be changed if APP_NAME in Makefile was changed, it should have APP_NAME value with _INSTANCE suffix

Example file with all the necessary properties looks like this:

account=myaccount
user=myuser
role=accountadmin
warehouse=mywarehouse

native_application.database_name=EXAMPLE_PUSH_BASED_CONNECTOR_TEST_INSTANCE
native_application.schema_name=PUBLIC
destination_database.database_name=EXAMPLE_PUSH_BASED_CONNECTOR_DATA
destination_database.schema_name=PUBLIC

ingestion.host=myaccount.snowflakecomputing.com
ingestion.scheme=https
ingestion.port=443
ingestion.private_key="MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQCsm5SOTkt/I0K5(...)"
jdbc.password=mypassword
jdbc.url=jdbc:snowflake://myaccount.snowflakecomputing.com

upload.initial.record-count=100
upload.periodical.record-count=20
upload.periodical.interval-seconds=10
upload.scheduler.pool-size=3

Connector logic

When user starts the Java Agent application, it connects to the Native Application and runs the INIT_DESTINATION_DATABASE procedure. Then the CLI is launched and user can enable and disable resources using appropriate commands. When a resource is enabled, Java Agent performs the following steps:

Initializes the resource - connects to the Native App and runs INIT_RESOURCE procedure
Runs initial upload - loads some records from the data source and uploads them to the base table
Schedules periodical upload (CDC) - loads and uploads some records to the delta table every 1 minute

In the meantime, on the Native App side, the merge task is invoked. It merges the data from the delta to the base table.

Simplified sequence diagram

Detailed sequence diagram

Build the connector

Overview

Build step for the app consist of:

Creating a new sf_build directory on the local machine for the Native App artifacts
Creating a new sf_build_java directory on local machine for the Java Agent artifacts
Copying of the Agent.jar to the sf_build_java folder
Copying of the manifest.yml to the sf_build folder
Copying of the setup.sql to the sf_build folder
Copying of the streamlit_app.py to the sf_build folder

The sf_build directory serves as the source of truth about the Native Application definition.

Building

To build the connector execute a convenience script:

make build

Deploy the connector

In this step we will deploy the connector to the Snowflake account.

Overview

Deployment step consists of:

Creating a database and stage for the app artifacts
Uploading the sf_build contents to the newly created stage
Creating an application package using the data from the stage

Deploy the app

To deploy the connector execute a convenience script:

make deploy

Installing the connector

In this step you will install the connector. The installation is encapsulated in a convenience script install.sql.

Overview

The installation step consists of:

Creating a new application using the application package which was created in the previous step
Granting the necessary privileges to the application

Running the installation script

To install the connector using the convenience script run the following command:

make install

Grant privileges and create sink database

To configure the connector and grant the rest of the necessary privileges log into Snowflake and go to the Apps tab.

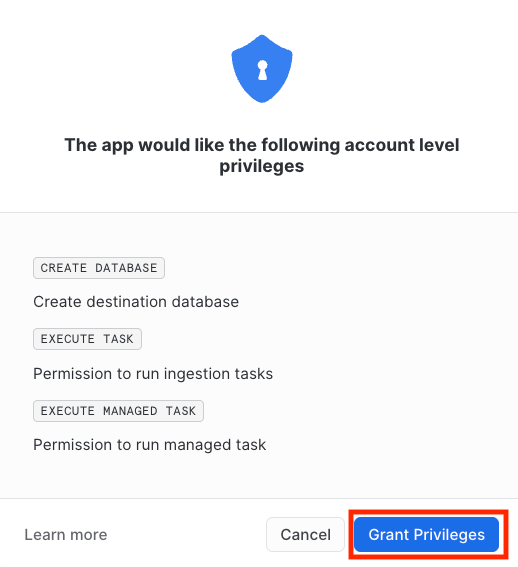

Grant privileges

When accessing the Streamlit dashboard of the connector for the first time a permissions pop-up will be displayed. The requested privileges must be granted for the connector to work properly.

Create a sink database

Agent that provides the data to the Native App requires a database to work. This database is created by the Native App. To create it just enter the database name in the input box and press Configure button.

Using Java Agent to enable a resources

To run the Java Agent run the following command:

make run_agent

This command runs the agent's command line interface. The following commands are available to use:

enable {resource_name} - initializes a resource and runs the initial and the periodical upload, example usage: enable first_resource
disable {resource_name} - disables periodical upload of a given resource, example usage: disable first_resource
quit - disables all the active resources and quits the application

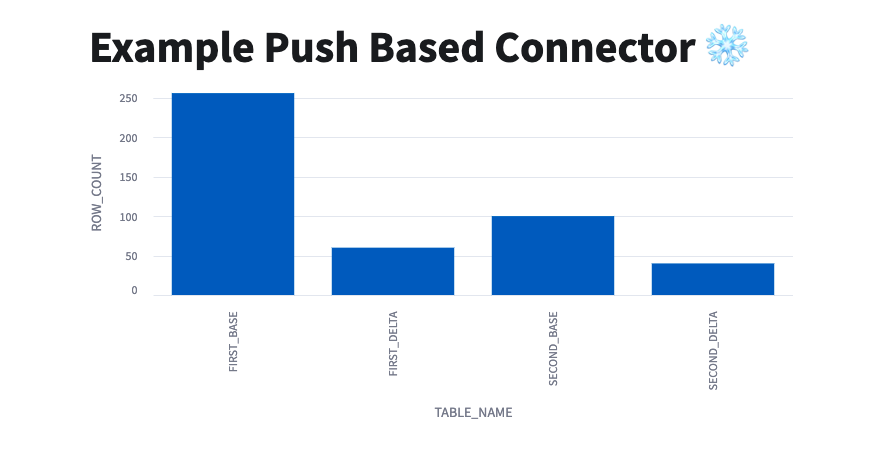

Using Streamlit app to visualise data

Navigate to the Apps tab in Snowflake, then find and open the application with your application name. If a resource was enabled using Java Agent, you will see a bar chart with count of the elements in all the tables.

You can check the Refresh automatically checkbox to enable a periodical refresh of the page - this way you will see rising charts when the data is being ingested.

Run integration test

Example-push-based-java-connector repository contains a module with an integration test.

Overview

This test checks if the whole application flow works as expected. It performs the following steps:

builds the connector
deploys the connector
installs the connector
initializes the destination database
initializes a new resource
performs the initial upload
performs a single iteration of the periodical upload
executes the merge task
drops the connector application and all the database elements that were created

Running the test

The integration test can be run using a simple make command:

make test

Conclusion

Congratulations! You have successfully completed these Labs

In this guide, you have learned how to:

create a push based connector
create Native Applications in Snowflake
use snowflake-ingestion-sdk to ingest the data to Snowflake
use snowflake-jdbc to run Snowflake procedures
optimize merge for the CDC scenario using the deferred merge approach
