Boltz2 Protein Structure Prediction on Snowflake GPU Notebooks

Model Development

Priya Joseph

Overview

Duration: 5

This guide walks you through running Boltz2 protein structure predictions for cancer-related mutations on Snowflake GPU Notebooks. You will predict structures for KRAS and JAK2 variants — two of the most important oncology drug targets — and visualize results using Streamlit.

Boltz2 is an open-source deep learning model for biomolecular structure prediction. In this quickstart, you will generate 29 structure predictions covering:

KRAS (wild-type + 6 variants) × (apo, Sotorasib, Adagrasib) = 21 configs
JAK2 JH2 domain (wild-type + V617F) × (apo, Ruxolitinib, Fedratinib, Pacritinib) = 8 configs

Prerequisites

A Snowflake account with access to GPU-enabled Notebooks (NVIDIA A100)
Basic familiarity with Python and molecular biology concepts

What You'll Learn

How to install and run Boltz2 v0.4.0 on Snowflake GPU Notebooks
How to apply a compatibility fix for the flash-attn library version mismatch
How to generate YAML configs for protein-ligand structure predictions
How to parse prediction results and visualize them with Streamlit

What You'll Need

A Snowflake account with GPU Notebook access (NVIDIA A100-SXM4-40GB)

What You'll Build

A Snowflake Notebook that runs 29 Boltz2 protein structure predictions and displays results in a Streamlit dashboard

Create a GPU Notebook

Duration: 3

In Snowsight, navigate to Projects → Notebooks
Click + Notebook
Under Runtime, select a GPU-enabled warehouse with NVIDIA A100 GPUs
Choose Python 3.10 as the kernel
Name the notebook Boltz2_KRAS_JAK2_Predictions

Once the notebook is running, proceed to install the required packages.

Install Dependencies

Duration: 5

Run the following cells one at a time. Restart the kernel after each pip install cell to ensure packages load correctly.

Cell 1: Install supporting packages

!pip install einops dm-tree modelcif

Cell 2: Install Boltz2 and pinned dependencies

!pip install boltz==0.4.0 scipy==1.13.1 click==8.1.7 numba==0.61.2

Cell 3: Install compatible NumPy and PyTorch Lightning

!pip install numpy==1.26.3 pytorch-lightning==2.4.0

Important: Restart the notebook kernel after each install cell above.

Cell 4: Verify Boltz2 is installed

import boltz

Apply flash-attn Compatibility Fix

Duration: 2

Boltz2 v0.4.0 references function names from an older version of the flash-attn library (flash_attn_unpadded_*). The Snowflake GPU runtime ships with flash-attn v2.6.0+, which renamed these to flash_attn_varlen_*. This disk-patch rewrites the source file so both in-process imports and subprocess calls work correctly.

primitives_path = "/opt/venv/snowbook/lib/python3.10/site-packages/boltz/model/layers/triangular_attention/primitives.py"

with open(primitives_path, 'r') as f:
    content = f.read()

content = content.replace(
    'flash_attn_unpadded_kvpacked_func',
    'flash_attn_varlen_kvpacked_func'
).replace(
    'flash_attn_unpadded_func',
    'flash_attn_varlen_func'
).replace(
    'flash_attn_unpadded_qkvpacked_func',
    'flash_attn_varlen_qkvpacked_func'
)

with open(primitives_path, 'w') as f:
    f.write(content)

print("Patched primitives.py on disk")

Without this patch you will see:

ImportError: cannot import name 'flash_attn_unpadded_kvpacked_func'

Check GPU and Define Sequences

Duration: 3

Cell 5: Verify GPU availability

import os
import json
import yaml
from pathlib import Path
from dataclasses import dataclass, asdict
from typing import List, Dict, Optional, Any
import subprocess

import torch
print(f"PyTorch version: {torch.__version__}")
print(f"CUDA available: {torch.cuda.is_available()}")
if torch.cuda.is_available():
    print(f"GPU: {torch.cuda.get_device_name(0)}")
    print(f"GPU Memory: {torch.cuda.get_device_properties(0).total_mem / 1e9:.1f} GB")

Cell 6: Define protein sequences, drug SMILES, and variant lists

KRAS_SEQUENCE = (
    "MTEYKLVVVGAGGVGKSALTIQLIQNHFVDEYDPTIEDSYRKQVVIDGETCLLDILDTAGQEEYSAMRDQYMRTGEGF"
    "LVKFVNNSKESSPNEKSKKRHRAKRYLALRGCLWLRLTADMTPRTEVKSEACPKTIIRSESSLSGSSCQQSTTQAQS"
    "AASPKSKTPGKHHRKTSSKTCVIM"
)

JAK2_JH2_DOMAIN = (
    "SCSSMPSGKLCLRMKQHVLEGQPKDRPLVQVLFGFAKLECPKPPCQLGLKPLNLEPLNLLYTKKDRYSYEFLKIKFV"
    "PGQQEGNDRVVSIEEYLPHVQRVLHELGILYCEIATNQPGKINLVNVSLTVKFLLHPENILSFTEKKFLNEQDKITF"
    "PLEIQILKTVHQEILLIANKLLNQEPVLIQVSHWNLTTLKKCVRQIRPALEVKNTRLTHMVHKGFYPSCSYKVYTHH"
    "EGLLNKMNICIVNNQGELVRVEYVVKNLGSLGFSSSHWDFCTGSLQKLEWTTSSLSVHVQPNYLRRSDLRDQISIL"
)

DRUG_SMILES = {
    "Sotorasib": "CC1=C(C=C(C=C1)F)NC(=O)C2=CC(=CN=C2)C3=C(C=C(C=C3)F)C(=O)NC4=C(C=CC(=C4)C(C)(C)C#N)Cl",
    "Adagrasib": "CC1=C(C=C(C=C1)F)NC(=O)C2=CC(=C(N=C2)NC3=C(C=CC(=C3)C(C)(C)C#N)Cl)F",
    "Ruxolitinib": "CC(C)C1=CC=CC=C1NC(=O)C2=C(N=C(C=C2)C3=CC=NC4=CC=CC=C43)N",
    "Fedratinib": "CC1=CC(=CC=C1)NC(=O)C2=CC=C(C=C2)CN3CCN(CC3)C4=CC=C(C=C4)OC5=NC=CC(=N5)N",
    "Pacritinib": "C1CC(=O)NC2=CC=C(C=C2)C3=CN=C(N=C3)NC4=CC=C(C=C4)OCCOCCN5CCOCC5"
}

@dataclass
class Variant:
    name: str
    gene: str
    position: int
    wt_aa: str
    mut_aa: str
    significance: str

KRAS_VARIANTS = [
    Variant("G12C", "KRAS", 12, "G", "C", "Sotorasib/Adagrasib target"),
    Variant("G12D", "KRAS", 12, "G", "D", "Most common KRAS mutation"),
    Variant("G12V", "KRAS", 12, "G", "V", "Common in pancreatic cancer"),
    Variant("G12S", "KRAS", 12, "G", "S", "Rare KRAS mutation"),
    Variant("G13D", "KRAS", 13, "G", "D", "Common in colorectal cancer"),
    Variant("Q61H", "KRAS", 61, "Q", "H", "GTPase domain mutation"),
]

JAK2_VARIANTS = [
    Variant("V617F", "JAK2", 31, "V", "F", "MPN driver mutation"),
]

print(f"KRAS sequence length: {len(KRAS_SEQUENCE)}")
print(f"JAK2 JH2 domain length: {len(JAK2_JH2_DOMAIN)}")
print(f"\nKRAS variants: {[v.name for v in KRAS_VARIANTS]}")
print(f"JAK2 variants: {[v.name for v in JAK2_VARIANTS]}")

Helper Functions and Config Generation

Duration: 3

Cell 7: Define helper functions

def apply_mutation(sequence: str, position: int, new_aa: str) -> str:
    seq_list = list(sequence)
    seq_list[position - 1] = new_aa
    return "".join(seq_list)

def create_boltz_yaml(
    name: str,
    sequence: str,
    ligand_smiles: Optional[str] = None,
    ligand_name: str = "LIG",
    predict_affinity: bool = True
) -> dict:
    config = {
        "version": 1,
        "sequences": [
            {
                "protein": {
                    "id": ["A"],
                    "sequence": sequence
                }
            }
        ]
    }
    if ligand_smiles:
        config["sequences"].append({
            "ligand": {
                "id": ["B"],
                "smiles": ligand_smiles
            }
        })
        if predict_affinity:
            config["affinity"] = {"ligand": "B"}
    return config

def save_yaml(config: dict, filepath: Path):
    filepath.parent.mkdir(parents=True, exist_ok=True)
    with open(filepath, 'w') as f:
        yaml.dump(config, f, default_flow_style=False, sort_keys=False)
    return filepath

print("Helper functions defined.")

Cell 8: Generate all 29 configurations

OUTPUT_DIR = Path("/tmp/boltz2_configs")
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)

configs = []

kras_drugs = ["Sotorasib", "Adagrasib"]

for drug in [None] + kras_drugs:
    drug_name = drug if drug else "apo"
    name = f"KRAS_WT_{drug_name}"
    config = create_boltz_yaml(
        name=name,
        sequence=KRAS_SEQUENCE,
        ligand_smiles=DRUG_SMILES.get(drug),
        predict_affinity=drug is not None
    )
    filepath = save_yaml(config, OUTPUT_DIR / f"{name}.yaml")
    configs.append({"name": name, "path": str(filepath), "gene": "KRAS", "variant": "WT", "drug": drug_name})

for variant in KRAS_VARIANTS:
    mut_seq = apply_mutation(KRAS_SEQUENCE, variant.position, variant.mut_aa)
    for drug in [None] + kras_drugs:
        drug_name = drug if drug else "apo"
        name = f"KRAS_{variant.name}_{drug_name}"
        config = create_boltz_yaml(
            name=name,
            sequence=mut_seq,
            ligand_smiles=DRUG_SMILES.get(drug),
            predict_affinity=drug is not None
        )
        filepath = save_yaml(config, OUTPUT_DIR / f"{name}.yaml")
        configs.append({"name": name, "path": str(filepath), "gene": "KRAS", "variant": variant.name, "drug": drug_name})

jak2_drugs = ["Ruxolitinib", "Fedratinib", "Pacritinib"]

for drug in [None] + jak2_drugs:
    drug_name = drug if drug else "apo"
    name = f"JAK2_WT_{drug_name}"
    config = create_boltz_yaml(
        name=name,
        sequence=JAK2_JH2_DOMAIN,
        ligand_smiles=DRUG_SMILES.get(drug),
        predict_affinity=drug is not None
    )
    filepath = save_yaml(config, OUTPUT_DIR / f"{name}.yaml")
    configs.append({"name": name, "path": str(filepath), "gene": "JAK2", "variant": "WT", "drug": drug_name})

for variant in JAK2_VARIANTS:
    mut_seq = apply_mutation(JAK2_JH2_DOMAIN, variant.position, variant.mut_aa)
    for drug in [None] + jak2_drugs:
        drug_name = drug if drug else "apo"
        name = f"JAK2_{variant.name}_{drug_name}"
        config = create_boltz_yaml(
            name=name,
            sequence=mut_seq,
            ligand_smiles=DRUG_SMILES.get(drug),
            predict_affinity=drug is not None
        )
        filepath = save_yaml(config, OUTPUT_DIR / f"{name}.yaml")
        configs.append({"name": name, "path": str(filepath), "gene": "JAK2", "variant": variant.name, "drug": drug_name})

print(f"Generated {len(configs)} configurations:")
print(f"  - KRAS: {len([c for c in configs if c['gene'] == 'KRAS'])} configs")
print(f"  - JAK2: {len([c for c in configs if c['gene'] == 'JAK2'])} configs")
print(f"\nConfig files saved to: {OUTPUT_DIR}")

Run Predictions

Duration: 30

Cell 9: Inspect a sample config

sample_config = OUTPUT_DIR / "KRAS_G12C_Sotorasib.yaml"
print(f"Sample config: {sample_config}\n")
with open(sample_config) as f:
    print(f.read())

Cell 10: Define the prediction runner and run a test batch

RESULTS_DIR = Path("/tmp/boltz2_results")
RESULTS_DIR.mkdir(parents=True, exist_ok=True)

def run_boltz2(yaml_path: Path, output_dir: Path, use_msa_server: bool = True) -> Dict[str, Any]:
    cmd = [
        "boltz", "predict", str(yaml_path),
        "--out_dir", str(output_dir),
        "--recycling_steps", "3",
        "--diffusion_samples", "1",
    ]
    if use_msa_server:
        cmd.extend(["--use_msa_server"])
    print(f"Running: {' '.join(cmd)}")
    result = subprocess.run(cmd, capture_output=True, text=True)
    return {
        "config": str(yaml_path),
        "returncode": result.returncode,
        "stdout": result.stdout,
        "stderr": result.stderr,
        "output_dir": str(output_dir)
    }

test_configs = [
    c for c in configs
    if c['name'] in ['KRAS_WT_apo', 'KRAS_G12C_Sotorasib', 'JAK2_V617F_Ruxolitinib']
]

print(f"Running {len(test_configs)} test predictions...\n")

results = []
for config in test_configs:
    print(f"\n{'='*60}")
    print(f"Processing: {config['name']}")
    print(f"{'='*60}")
    result = run_boltz2(
        yaml_path=Path(config['path']),
        output_dir=RESULTS_DIR / config['name']
    )
    result['config_info'] = config
    results.append(result)
    if result['returncode'] == 0:
        print(f"Success")
    else:
        print(f"Failed: {result['stderr'][:500]}")

print(f"\n\nCompleted {len(results)} predictions")

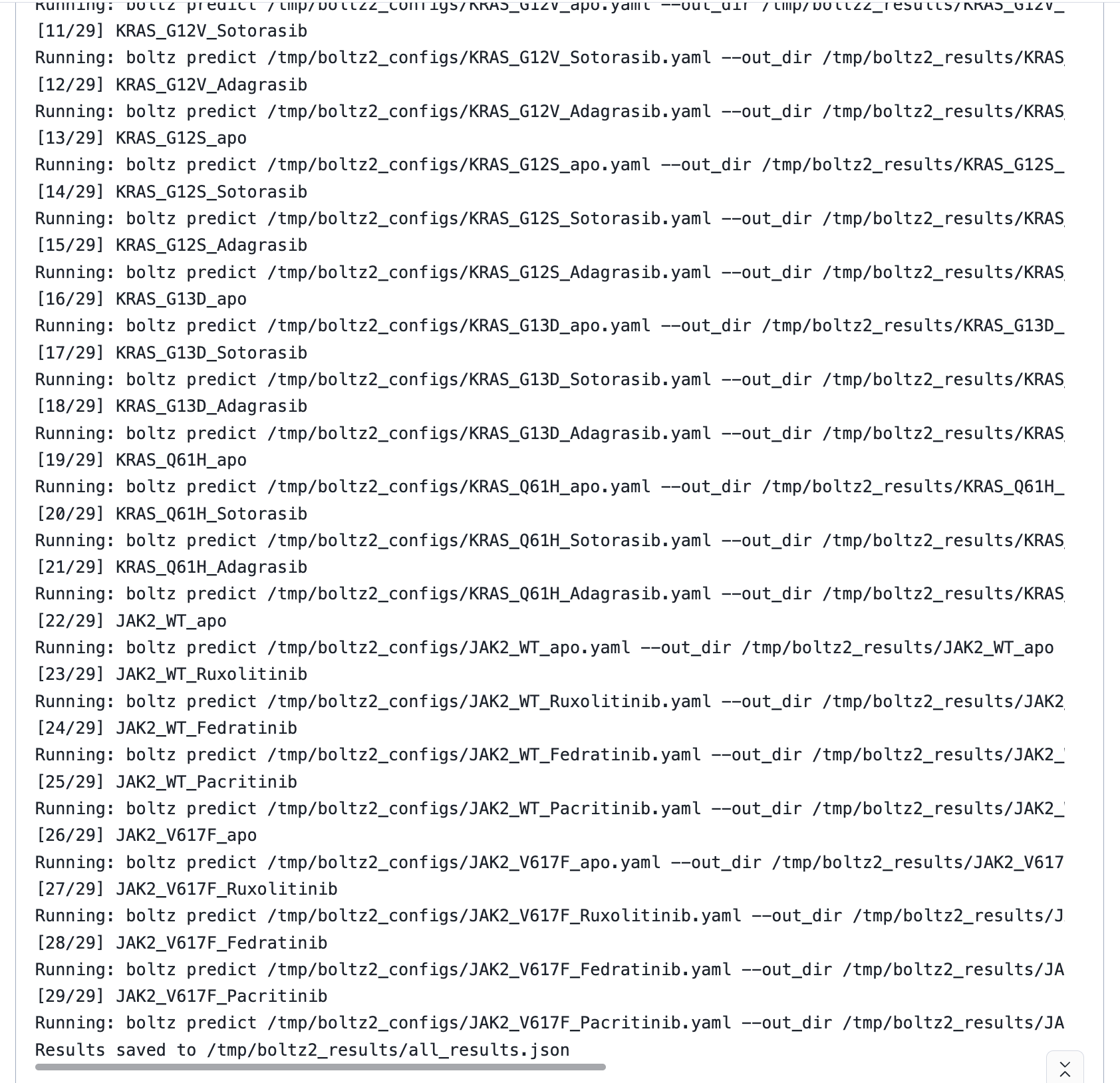

Cell 11: Run all 29 predictions

This takes approximately 6–10 minutes total on an A100 GPU (~12 seconds per structure).

print(f"Running ALL {len(configs)} predictions...")
print("This may take several minutes on A100 GPU.\n")

all_results = []
for i, config in enumerate(configs):
    print(f"\n[{i+1}/{len(configs)}] {config['name']}")
    result = run_boltz2(
        yaml_path=Path(config['path']),
        output_dir=RESULTS_DIR / config['name']
    )
    result['config_info'] = config
    all_results.append(result)

with open(RESULTS_DIR / 'all_results.json', 'w') as f:
    json.dump(all_results, f, indent=2)
    print(f"\nResults saved to {RESULTS_DIR / 'all_results.json'}")

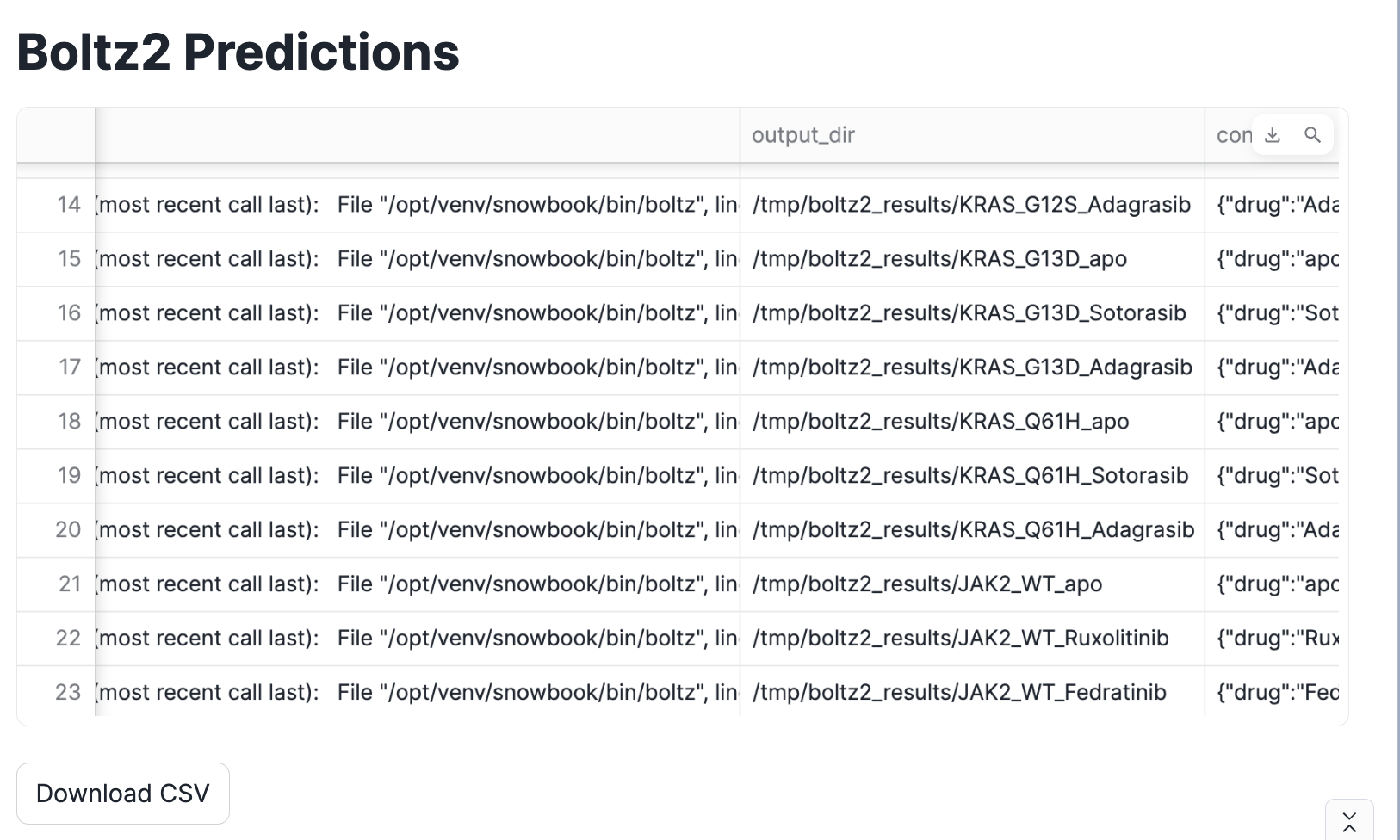

Parse Results and Visualize with Streamlit

Duration: 5

Cell 12: Parse Boltz2 output files

import glob

def parse_boltz_results(results_dir: Path) -> List[Dict]:
    parsed = []
    for result_path in results_dir.glob("*/predictions/"):
        name = result_path.parent.name
        confidence_files = list(result_path.glob("*_confidence.json"))
        entry = {"name": name}
        if confidence_files:
            with open(confidence_files[0]) as f:
                conf_data = json.load(f)
                entry["plddt"] = conf_data.get("plddt_mean", None)
                entry["ptm"] = conf_data.get("ptm", None)
                entry["affinity"] = conf_data.get("affinity", None)
        pdb_files = list(result_path.glob("*.pdb"))
        cif_files = list(result_path.glob("*.cif"))
        entry["pdb_file"] = str(pdb_files[0]) if pdb_files else None
        entry["cif_file"] = str(cif_files[0]) if cif_files else None
        parsed.append(entry)
    return parsed

if RESULTS_DIR.exists():
    parsed_results = parse_boltz_results(RESULTS_DIR)
    if parsed_results:
        print("Parsed Results:")
        print("-" * 80)
        for r in parsed_results:
            print(f"\n{r['name']}:")
            print(f"  pLDDT: {r.get('plddt', 'N/A')}")
            print(f"  pTM: {r.get('ptm', 'N/A')}")
            print(f"  Affinity: {r.get('affinity', 'N/A')}")
            print(f"  Structure: {r.get('pdb_file', 'N/A')}")
    else:
        print("No results parsed yet. Run predictions first.")
else:
    print("Results directory not found. Run predictions first.")

Cell 13: Streamlit visualization

Toggle the cell to Streamlit mode in the Snowflake Notebook UI, then run:

import streamlit as st
import pandas as pd
import json

with open('/tmp/boltz2_results/all_results.json', 'r') as f:
    results = json.load(f)

st.title("Boltz2 Predictions")

if results:
    df = pd.DataFrame(results)
    st.dataframe(df)
    st.download_button("Download CSV", df.to_csv(index=False), "boltz2_results.csv")
else:
    st.warning("No results found")

Conclusion and Resources

Duration: 2

Congratulations! You have successfully run Boltz2 protein structure predictions for 29 KRAS and JAK2 configurations on a Snowflake GPU Notebook, including a compatibility fix for the flash-attn library and a Streamlit dashboard for results visualization.

What You Learned

How to install Boltz2 v0.4.0 on Snowflake GPU Notebooks
How to patch the flash-attn version mismatch that causes ImportError with flash_attn_unpadded_* functions
How to programmatically generate Boltz2 YAML configs for protein-ligand structure predictions across multiple variants and drugs
How to run 29 predictions on NVIDIA A100 GPUs (~12s each)
How to visualize results with Streamlit in Snowflake Notebooks

Related Resources

Updated 2026-03-11

This content is provided as is, and is not maintained on an ongoing basis. It may be out of date with current Snowflake instances
