Data Engineering with Dagster, dbt, and Snowflake

Dennis Hume

Overview

Modern data teams face a common challenge: raw data arrives from external sources, needs to be loaded into Snowflake, transformed through multiple layers, and made available for analytics — all while maintaining clear visibility into what ran, when, and why.

Dagster solves this by treating every data artifact — a Snowflake table, a dbt model, a file — as an asset. The Dagster asset graph becomes the source of truth for your entire pipeline. You can see every upstream dependency and every downstream consumer in one view, trigger any subset of the pipeline with a click, and know exactly what data exists in your warehouse at any moment.

In this guide, you will build a pipeline that loads NYC yellow taxi trip data from a public S3/CloudFront URL into Snowflake, transforms it through two dbt model layers (staging and marts), and exposes the full lineage in the Dagster UI from raw parquet file through every transformation to the final analytics table.

Prerequisites

This guide assumes basic familiarity with Python, SQL, and the command line. No prior Dagster or dbt experience is required.

What You'll Learn

How to create a Dagster project using the dg CLI
How to configure a dbt project as a Dagster component using YAML
How to write a Dagster Python asset that creates a Snowflake table
How dbt sources, dbt models, and Dagster Python assets connect in a single asset graph

What You'll Need

A Snowflake Account with ACCOUNTADMIN access to create roles, warehouses, and databases
Python 3.10 or newer installed on your machine

uv — the Python package manager used by the Dagster dg CLI. Install with:

curl -LsSf https://astral.sh/uv/install.sh | sh

A code editor — Visual Studio Code is recommended

What You'll Build

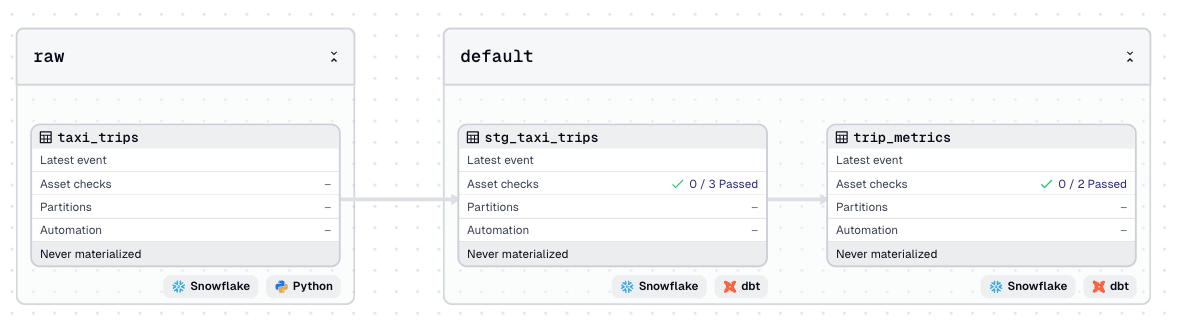

Full end-to-end asset lineage in the Dagster UI from raw Snowflake table through all dbt transformations

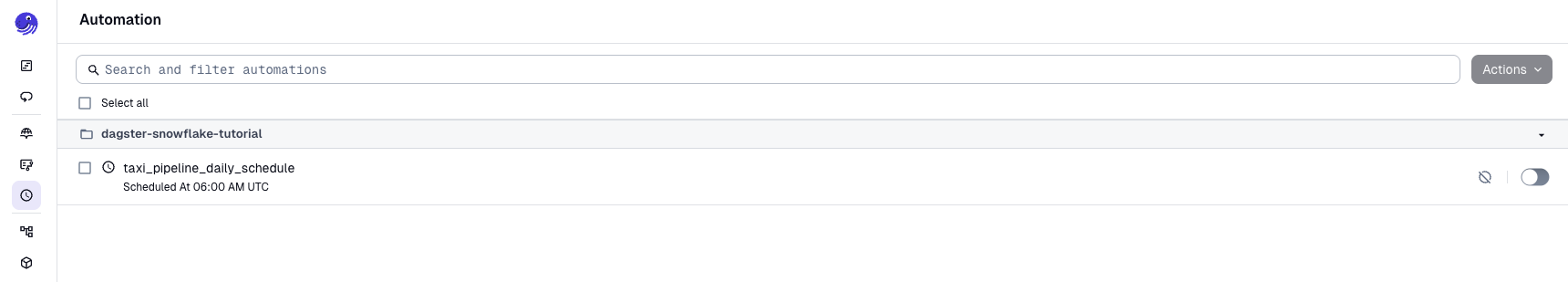

A daily schedule that refreshes the entire pipeline automatically

Set Up Snowflake

Before writing any orchestration code, create the Snowflake objects the pipeline will use: a dedicated database, two schemas (one for raw ingested data, one for dbt-managed objects), a virtual warehouse, and a role with the minimum necessary permissions.

Log into your Snowflake account as ACCOUNTADMIN, open a SQL worksheet, and run the following script in its entirety:

USE ROLE ACCOUNTADMIN;

-- Database and schemas
CREATE DATABASE IF NOT EXISTS TAXI_DATA;
CREATE SCHEMA IF NOT EXISTS TAXI_DATA.RAW;
CREATE SCHEMA IF NOT EXISTS TAXI_DATA.DBT;

-- XSmall warehouse that auto-suspends after 2 minutes of inactivity
CREATE WAREHOUSE IF NOT EXISTS TAXI_WH
  WITH WAREHOUSE_SIZE = 'XSMALL'
       AUTO_SUSPEND    = 120
       AUTO_RESUME     = TRUE
       INITIALLY_SUSPENDED = TRUE;

-- Dedicated role for Dagster
CREATE ROLE IF NOT EXISTS DAGSTER_ROLE;
GRANT USAGE  ON WAREHOUSE TAXI_WH              TO ROLE DAGSTER_ROLE;
GRANT USAGE  ON DATABASE  TAXI_DATA            TO ROLE DAGSTER_ROLE;
GRANT USAGE  ON SCHEMA    TAXI_DATA.RAW        TO ROLE DAGSTER_ROLE;
GRANT USAGE  ON SCHEMA    TAXI_DATA.DBT        TO ROLE DAGSTER_ROLE;
GRANT CREATE TABLE ON SCHEMA TAXI_DATA.RAW     TO ROLE DAGSTER_ROLE;
GRANT CREATE TABLE ON SCHEMA TAXI_DATA.DBT     TO ROLE DAGSTER_ROLE;
GRANT CREATE VIEW  ON SCHEMA TAXI_DATA.DBT     TO ROLE DAGSTER_ROLE;

-- User for Dagster (replace <YOUR_PASSWORD> with a strong password)
CREATE USER IF NOT EXISTS DAGSTER_USER
  PASSWORD         = '<YOUR_PASSWORD>'
  DEFAULT_ROLE     = DAGSTER_ROLE
  DEFAULT_WAREHOUSE = TAXI_WH;
GRANT ROLE DAGSTER_ROLE TO USER DAGSTER_USER;

Keep your Snowflake account identifier, username, and password handy for the .env file you will create in the next section.

Create the Dagster Project

The dg CLI (part of the dagster package, invoked via uvx create-dagster) scaffolds a fully-structured Python project with all the configuration files Dagster needs.

Run the following commands to create the project, set up its environment, and add the Snowflake and dbt integration libraries:

uvx create-dagster@latest project dagster-snowflake-tutorial
cd dagster-snowflake-tutorial
uv add dagster-snowflake dagster-dbt dbt-snowflake

dagster-snowflake provides the SnowflakeResource used in the ingestion asset
dagster-dbt provides the DbtProjectComponent that turns your dbt project into Dagster assets
dbt-snowflake is the dbt adapter that compiles the project manifest against Snowflake — without it, dbt parse fails and no dbt assets load

Activate the virtual environment:

source .venv/bin/activate

The Generated Project Structure

The create-dagster command produces this layout:

.
├── pyproject.toml
├── README.md
├── src
│   └── dagster_snowflake_tutorial
│       ├── __init__.py
│       ├── definitions.py
│       └── defs
│           └── __init__.py
├── tests
│   └── __init__.py
└── uv.lock

The critical file is definitions.py, which contains the auto-discovery pattern:

from pathlib import Path

from dagster import definitions, load_from_defs_folder


@definitions
def defs():
    return load_from_defs_folder(path_within_project=Path(__file__).parent)

This single file automatically discovers every asset, schedule, sensor, and component placed anywhere inside the defs/ directory. You never need to manually import new definitions as the project evolves.

Set Environment Variables

Create the .env file at the project root:

SNOWFLAKE_ACCOUNT=<your-account-identifier>
SNOWFLAKE_USER=DAGSTER_USER
SNOWFLAKE_PASSWORD=<your-password>

The .env file is loaded automatically when you run dg dev. It is already listed in .gitignore by the project scaffold — never commit credentials to source control.

Create the dbt Project

The dbt project lives inside the Dagster project directory, keeping everything in one repository.

Initialize the dbt Project

From inside dagster-snowflake-tutorial/:

uv run dbt init analytics --skip-profile-setup

This creates an analytics/ directory at the project root. The --skip-profile-setup flag skips the interactive profile wizard; you will configure the Snowflake profile manually below.

Configure the dbt Profile

Create analytics/profiles.yml:

analytics:
  target: dev
  outputs:
    dev:
      type: snowflake
      account: "{{ env_var('SNOWFLAKE_ACCOUNT') }}"
      user: "{{ env_var('SNOWFLAKE_USER') }}"
      password: "{{ env_var('SNOWFLAKE_PASSWORD') }}"
      role: DAGSTER_ROLE
      warehouse: TAXI_WH
      database: TAXI_DATA
      schema: DBT
      threads: 4

Using env_var() keeps credentials out of version control.

Configure `dbt_project.yml`

Replace the generated content of analytics/dbt_project.yml:

name: analytics
version: "1.0.0"
config-version: 2
profile: analytics

model-paths:    ["models"]
analysis-paths: ["analyses"]
test-paths:     ["tests"]
seed-paths:     ["seeds"]
macro-paths:    ["macros"]
snapshot-paths: ["snapshots"]

models:
  analytics:
    staging:
      +materialized: view
      +schema: DBT
    marts:
      +materialized: table
      +schema: DBT

Staging models are materialized as views (fast to rebuild, no storage cost), while marts are materialized as tables (fast to query for downstream BI tools).

Create the dbt Model Files

Replace the generated models/example/ directory and create the following structure:

analytics/models/
├── sources/
│   └── raw_taxi.yml
├── staging/
│   ├── stg_taxi_trips.sql
│   └── staging.yml
└── marts/
    ├── trip_metrics.sql
    └── marts.yml

analytics/models/sources/raw_taxi.yml — declares the Snowflake raw table as a dbt source. The meta tag connects it to the taxi_trips Dagster asset:

version: 2

sources:
  - name: raw
    database: TAXI_DATA
    schema: RAW
    tables:
      - name: taxi_trips
        description: "Raw NYC yellow taxi trip data loaded from S3/CloudFront by Dagster"
        meta:
          dagster:
            asset_key: ["taxi_trips"]

analytics/models/staging/stg_taxi_trips.sql — cleans and renames the raw parquet columns:

with source as (
    select * from {{ source('raw', 'taxi_trips') }}
),

renamed as (
    select
        VendorID                                        as vendor_id,
        tpep_pickup_datetime                            as pickup_at,
        tpep_dropoff_datetime                           as dropoff_at,
        passenger_count,
        trip_distance,
        PULocationID                                    as pickup_location_id,
        DOLocationID                                    as dropoff_location_id,
        payment_type,
        fare_amount,
        tip_amount,
        total_amount,
        datediff(
            'minute',
            tpep_pickup_datetime,
            tpep_dropoff_datetime
        )                                               as trip_duration_minutes
    from source
    where trip_distance > 0
      and total_amount  > 0
      and tpep_pickup_datetime >= '2023-01-01'
      and tpep_pickup_datetime <  '2023-02-01'
)

select * from renamed

analytics/models/staging/staging.yml — dbt documentation and data quality tests:

version: 2

models:
  - name: stg_taxi_trips
    description: "Cleaned and renamed staging model for NYC yellow taxi trips"
    config:
      tags: ["staging"]
    columns:
      - name: pickup_at
        description: "Trip pickup timestamp"
        tests:
          - not_null
      - name: trip_distance
        description: "Trip distance in miles"
        tests:
          - not_null
      - name: total_amount
        description: "Total fare charged to the passenger"
        tests:
          - not_null

analytics/models/marts/trip_metrics.sql — aggregated business-level mart with hourly trip statistics by pickup location:

with trips as (
    select * from {{ ref('stg_taxi_trips') }}
),

metrics as (
    select
        date_trunc('hour', pickup_at)       as pickup_hour,
        pickup_location_id,
        count(*)                            as trip_count,
        avg(trip_distance)                  as avg_trip_distance,
        avg(trip_duration_minutes)          as avg_trip_duration_minutes,
        avg(total_amount)                   as avg_total_amount,
        sum(total_amount)                   as total_revenue,
        avg(tip_amount)                     as avg_tip_amount
    from trips
    group by 1, 2
)

select * from metrics

analytics/models/marts/marts.yml:

version: 2

models:
  - name: trip_metrics
    description: "Hourly trip metrics by pickup location — materialized as a Snowflake table"
    config:
      tags: ["marts"]
    columns:
      - name: pickup_hour
        description: "Hour bucket of trip pickup time"
        tests:
          - not_null
      - name: trip_count
        description: "Number of trips in this hour and pickup location"
        tests:
          - not_null

Configure the dbt Component

A single dg scaffold command generates a YAML configuration file for the dbt project. Dagster reads this YAML, runs dbt parse to build the manifest, and automatically creates one Dagster asset for every dbt model and source in the project.

Scaffold the Component

From inside dagster-snowflake-tutorial/:

dg scaffold defs dagster_dbt.DbtProjectComponent dbt_transforms --project-path analytics

This creates src/dagster_snowflake_tutorial/defs/dbt_transforms/defs.yaml.

type: dagster_dbt.DbtProjectComponent

attributes:
  project: "{{ context.project_root }}/analytics"

Verify the Component Loads

dg check defs

If dbt parses successfully, all definitions are valid. Any syntax errors will surface here before you start the Dagster server.

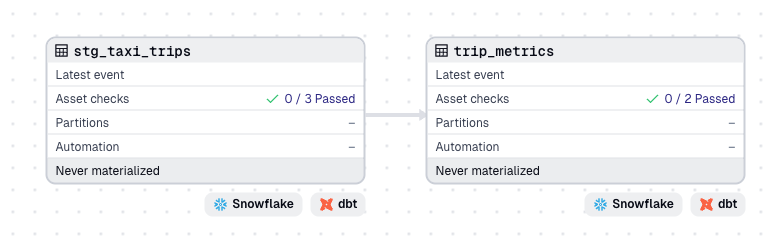

The dbt project, represented as Dagster assets, can be viewed in the Dagster UI.

dg dev

Open http://localhost:3000 to view your asset graph.

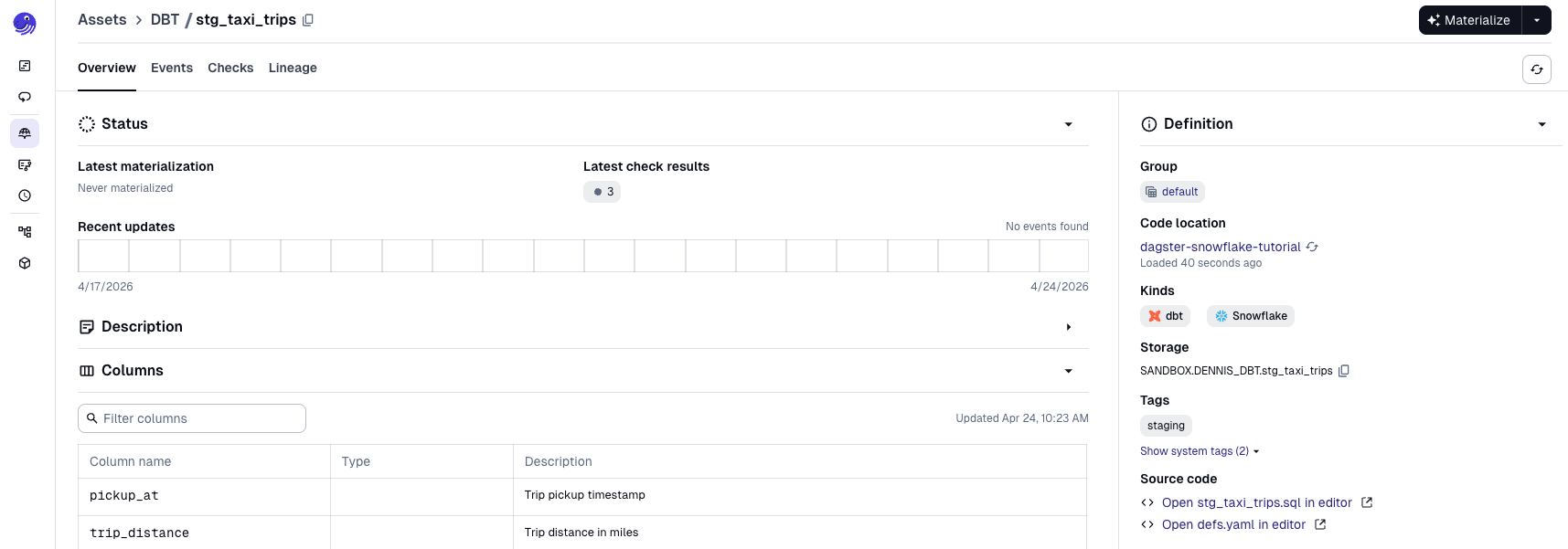

More information can be viewed about each individual asset.

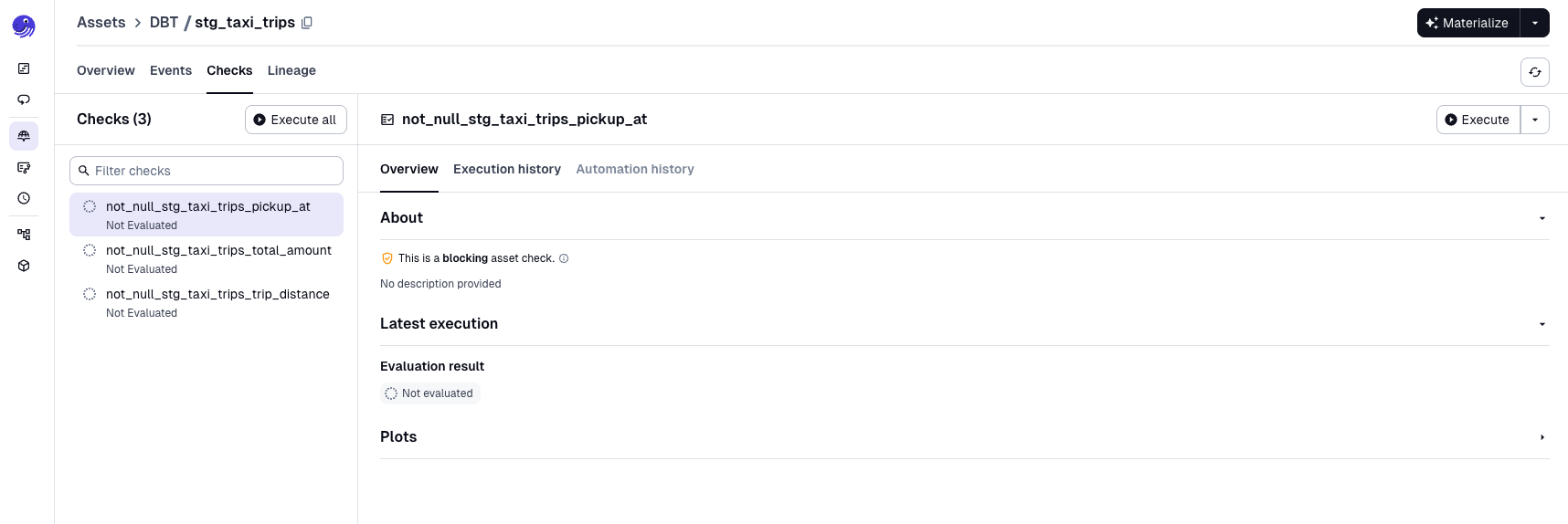

This includes the dbt tests associated with each dbt model, represented as asset checks.

Write the Ingestion Asset

The dbt component handles transformations, but raw data still needs to arrive in Snowflake before we can execute our pipeline. This section adds a Dagster Python asset that creates the raw TAXI_TRIPS table and loads a month of NYC taxi parquet data from a public CloudFront URL using Snowflake's native COPY INTO.

Create the Asset File

Scaffold the ingestion asset:

dg scaffold defs dagster.asset assets/ingestion.py

Replace the contents of the generated file with:

import dagster as dg
from dagster_snowflake import SnowflakeResource


@dg.asset(
    group_name="raw",
    description="Load January 2023 NYC yellow taxi trips from S3 into Snowflake",
    kinds={"snowflake", "python"},
)
def taxi_trips(snowflake: SnowflakeResource) -> dg.MaterializeResult:
    with snowflake.get_connection() as conn:
        cursor = conn.cursor()

        cursor.execute("""
            CREATE TABLE IF NOT EXISTS TAXI_DATA.RAW.TAXI_TRIPS (
                VendorID              INTEGER,
                tpep_pickup_datetime  TIMESTAMP,
                tpep_dropoff_datetime TIMESTAMP,
                passenger_count       FLOAT,
                trip_distance         FLOAT,
                RatecodeID            FLOAT,
                store_and_fwd_flag    STRING,
                PULocationID          INTEGER,
                DOLocationID          INTEGER,
                payment_type          INTEGER,
                fare_amount           FLOAT,
                extra                 FLOAT,
                mta_tax               FLOAT,
                tip_amount            FLOAT,
                tolls_amount          FLOAT,
                improvement_surcharge FLOAT,
                total_amount          FLOAT,
                congestion_surcharge  FLOAT,
                airport_fee           FLOAT
            )
        """)

        cursor.execute("TRUNCATE TABLE TAXI_DATA.RAW.TAXI_TRIPS")

        cursor.execute("""
            COPY INTO TAXI_DATA.RAW.TAXI_TRIPS
            FROM 'https://d37ci6vzurychx.cloudfront.net/trip-data/yellow_tripdata_2023-01.parquet'
            FILE_FORMAT = (
                TYPE                = PARQUET
                SNAPPY_COMPRESSION  = TRUE
            )
            MATCH_BY_COLUMN_NAME = CASE_INSENSITIVE
            ON_ERROR             = ABORT_STATEMENT
        """)

        cursor.execute("SELECT COUNT(*) FROM TAXI_DATA.RAW.TAXI_TRIPS")
        rows_loaded = cursor.fetchone()[0]

    return dg.MaterializeResult(
        metadata={
            "rows_loaded": dg.MetadataValue.int(rows_loaded),
            "source_url": dg.MetadataValue.url(
                "https://d37ci6vzurychx.cloudfront.net/trip-data/yellow_tripdata_2023-01.parquet"
            ),
        }
    )

A few things worth noting:

CREATE TABLE IF NOT EXISTS — the asset owns the schema of its output. The table is created on first run and left in place on subsequent runs.
TRUNCATE before COPY INTO — ensures the asset is idempotent. Re-materializing it always produces the same result.
MaterializeResult with metadata — the row count and source URL are recorded in the Dagster UI asset details panel after every run, giving you an audit trail without any custom logging.
snowflake: SnowflakeResource — Dagster injects this resource at runtime. You declare the dependency; Dagster supplies it.

Configure the SnowflakeResource

Scaffold a resource to make the SnowflakeResource available to all assets in the project.

dg scaffold defs dagster.resources resources.py

Replace the code at src/dagster_snowflake_tutorial/defs/resources.py with:

import dagster as dg
from dagster_snowflake import SnowflakeResource

defs = dg.Definitions(
    resources={
        "snowflake": SnowflakeResource(
            account=dg.EnvVar("SNOWFLAKE_ACCOUNT"),
            user=dg.EnvVar("SNOWFLAKE_USER"),
            password=dg.EnvVar("SNOWFLAKE_PASSWORD"),
            warehouse="TAXI_WH",
            database="TAXI_DATA",
            schema="RAW",
        )
    }
)

dg.EnvVar reads environment variables at runtime rather than import time.

View the Graph

If you have closed the UI, launch it again with:

dg dev

The asset graph at http://localhost:3000 now shows the ingestion asset alongside the dbt assets:

Add a Daily Schedule

Dagster's schedule system triggers asset materializations on a cron expression. Create a daily schedule that refreshes the entire pipeline.

dg scaffold defs dagster.schedule schedules.py

Replace the contents of src/dagster_snowflake_tutorial/defs/schedules.py with a job and schedule:

import dagster as dg

taxi_pipeline_job = dg.define_asset_job(
    name="taxi_pipeline_daily",
    selection=dg.AssetSelection.all(),
    description="Full refresh: ingest from S3, build staging view, build marts table",
)

daily_schedule = dg.ScheduleDefinition(
    name="taxi_pipeline_daily_schedule",
    job=taxi_pipeline_job,
    cron_schedule="0 6 * * *",
)

Restart dg dev and navigate to Automation. The taxi_pipeline_daily_schedule will be listed with its next scheduled run time.

Materialize the Pipeline

With the asset graph fully wired up, run the pipeline end-to-end. Dagster materializes assets in dependency order: first taxi_trips (which creates and loads the Snowflake table), then stg_taxi_trips (which runs dbt build for the staging model), then trip_metrics (which runs dbt build for the marts model).

Materialize from the UI

In the Dagster asset graph view:

Click Materialize all in the top-right corner
Watch the run progress — each node turns green as it completes

Click on any asset node to open the asset detail panel and see the run logs and metadata for that specific asset.

Verify in Snowflake

Switch to your Snowflake worksheet and run the following queries to confirm data flowed through every layer:

-- Confirm raw data loaded (~3 million rows for January 2023)
SELECT COUNT(*) FROM TAXI_DATA.RAW.TAXI_TRIPS;

-- Inspect the staging view (cleaned column names, filtered rows)
SELECT * FROM TAXI_DATA.DBT.STG_TAXI_TRIPS LIMIT 10;

-- Query the final mart
SELECT
    pickup_hour,
    SUM(trip_count)        AS total_trips,
    AVG(avg_total_amount)  AS avg_fare,
    SUM(total_revenue)     AS total_revenue
FROM TAXI_DATA.DBT.TRIP_METRICS
GROUP BY 1
ORDER BY 1
LIMIT 24;

Conclusion

You have built a production-ready data engineering pipeline using Dagster, dbt, and Snowflake. You started with raw parquet files on S3 and ended with a clean, tested, documented analytics mart in Snowflake with full lineage visible in the Dagster UI at every step.

What You've Covered

How to use create-dagster and the dg CLI to scaffold a Dagster project with auto-discovery of definitions
How to configure a DbtProjectComponent with a YAML file to connect your dbt project to Dagster
How to write a Dagster Python asset that creates a Snowflake table and idempotently loads data via COPY INTO, with row count metadata surfaced in the UI
How to add a daily schedule with a single ScheduleDefinition
How to materialize the full pipeline from the Dagster UI and verify results in Snowflake

Additional Resources:

Updated 2026-04-24

This content is provided as is, and is not maintained on an ongoing basis. It may be out of date with current Snowflake instances

Data Engineering with Dagster, dbt, and Snowflake

Overview

Prerequisites

What You'll Learn

What You'll Need

What You'll Build

Set Up Snowflake

Create the Dagster Project

The Generated Project Structure

Set Environment Variables

Create the dbt Project

Initialize the dbt Project

Configure the dbt Profile

Configure dbt_project.yml

Create the dbt Model Files

Configure the dbt Component

Scaffold the Component

Verify the Component Loads

Write the Ingestion Asset

Create the Asset File

Configure the SnowflakeResource

View the Graph

Add a Daily Schedule

Materialize the Pipeline

Materialize from the UI

Verify in Snowflake

Conclusion

What You've Covered

Additional Resources:

Configure `dbt_project.yml`
