Overview

What You'll Learn

What You'll Build

Prerequisites

Use Case and Architecture

The Balloon Game

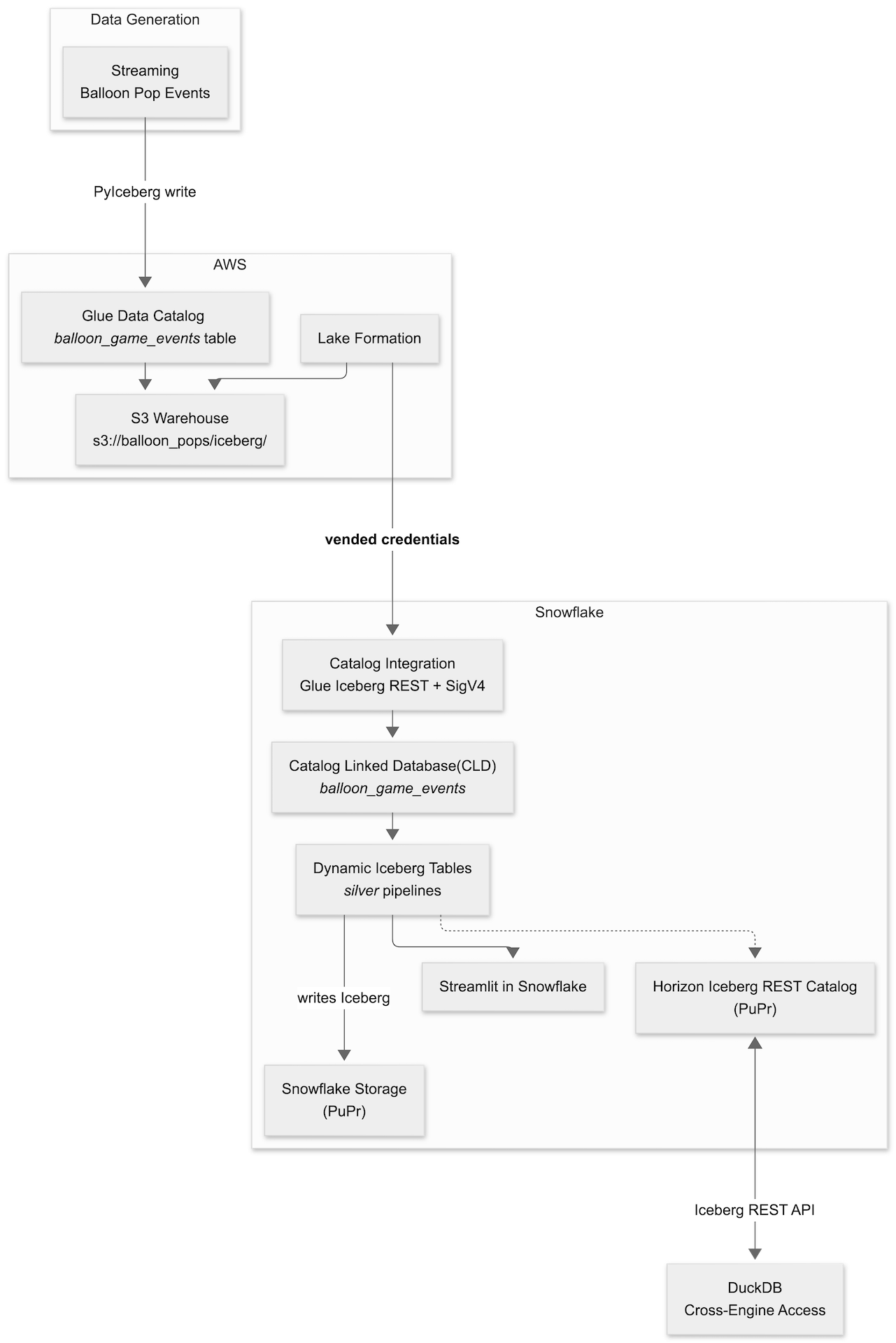

Architecture

Lab Layers

Tools and Prerequisites

Clone Repository

git clone https://github.com/Snowflake-Labs/sfguide-lakehouse-iceberg-production-pipelines.git

cd sfguide-lakehouse-iceberg-production-pipelines

Accounts and Permissions

Required Tools

Windows note: If task check-tools fails only on envsubst, use WSL2 or run uv run bronze-cli render-iam (the Python path) instead.

Recommended Tools

Verify Installation

task setup

export AWS_PROFILE=your-profile
task check-tools

Environment Inputs

# =============================================================
# Phase 1 — AWS (bronze landing)
# =============================================================
AWS_PROFILE=                    # AWS named profile
AWS_REGION=                     # e.g. us-west-2

# Shared workshop: set this for per-participant bucket/database name derivation.
# Leave BRONZE_BUCKET_NAME empty when LAB_USERNAME is set.
# LAB_USERNAME=

# =============================================================
# Phase 1 — Iceberg warehouse (Glue + PyIceberg)
# =============================================================
BRONZE_BUCKET_NAME=             # Globally unique S3 bucket name
# GLUE_DATABASE=balloon_pops    # Derived from LAB_USERNAME when unset
# BRONZE_LOAD_DURATION_MINUTES=5

# =============================================================
# Phase 1 — Amazon S3 Tables (optional, AWS CLI 2.34+)
# =============================================================
BRONZE_S3TABLES_BUCKET_NAME=
S3TABLES_NAMESPACE=balloon_pops

# =============================================================
# Phase 2 — Snowflake CLI / SQL
# =============================================================
# SNOWFLAKE_DEFAULT_CONNECTION_NAME=devrel-ent
# SNOWFLAKE_ROLE=ACCOUNTADMIN
# SNOWFLAKE_WAREHOUSE=COMPUTE_WH

# =============================================================
# Phase 2 — Dynamic Iceberg Tables (task dt:generate-sql)
# =============================================================
# SNOWFLAKE_SILVER_DATABASE=balloon_silver
# SNOWFLAKE_SILVER_SCHEMA=silver

Bronze Landing Zone

Set Up and Load

task bronze:render-iam-dry-run
task bronze:glue-setup-dry-run
task bronze:s3tables-setup-dry-run

task bronze:render-iam

task bronze:glue-setup

task bronze:s3tables-setup

task bronze:load

task bronze:all

What Gets Created

task bronze:snowflake-summary

Lake Formation Setup

task bronze:lakeformation-setup-dry-run

task bronze:lakeformation-setup

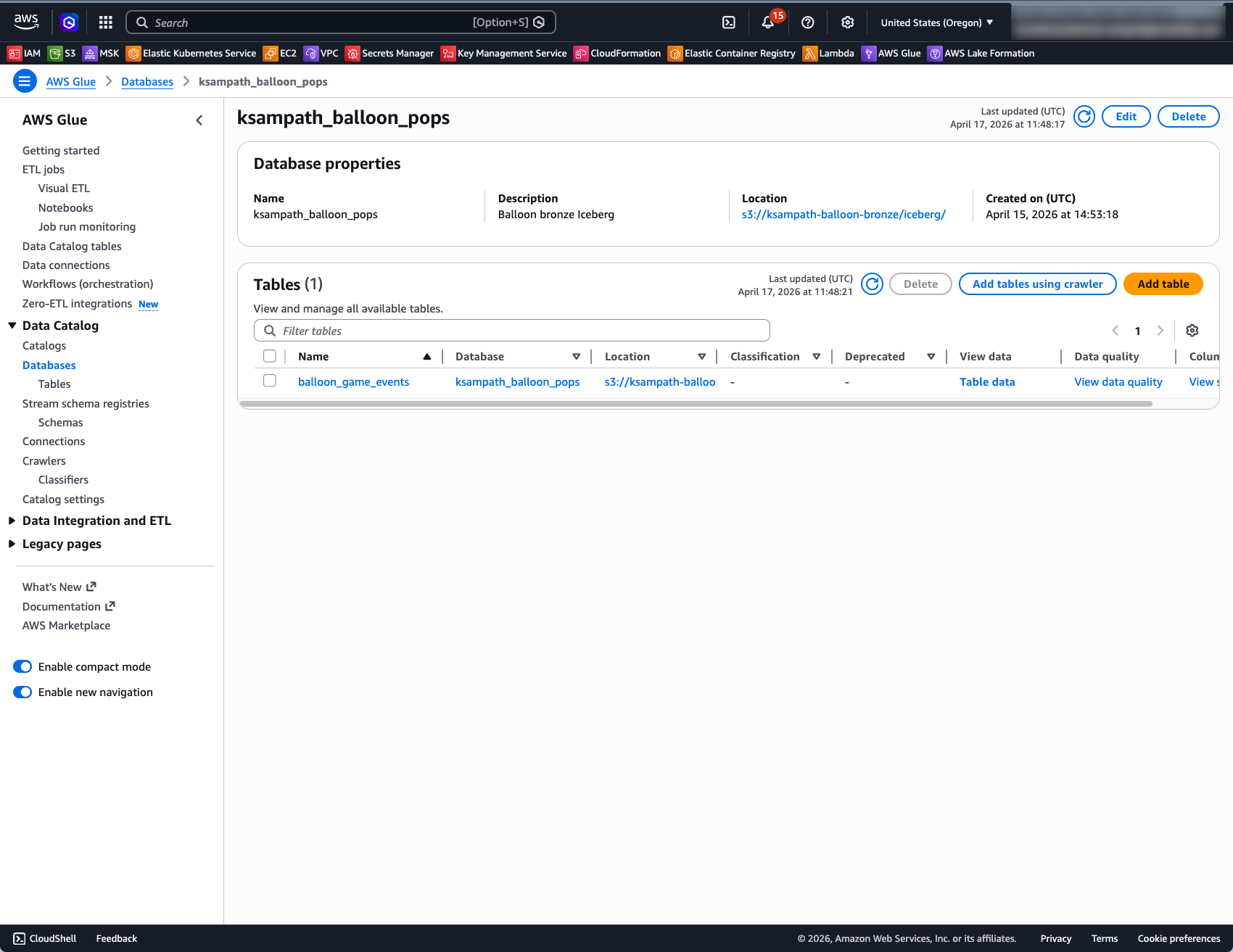

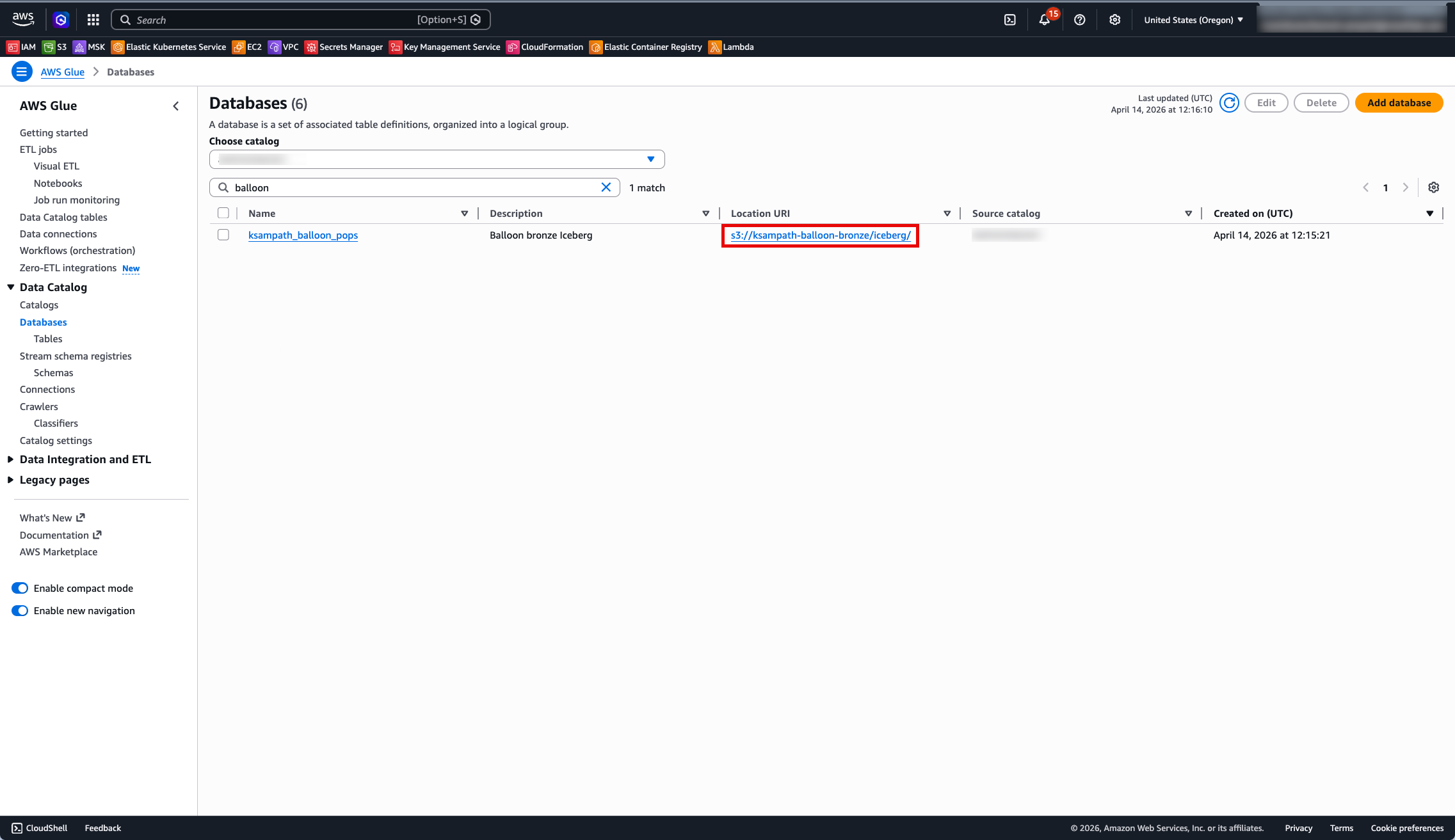

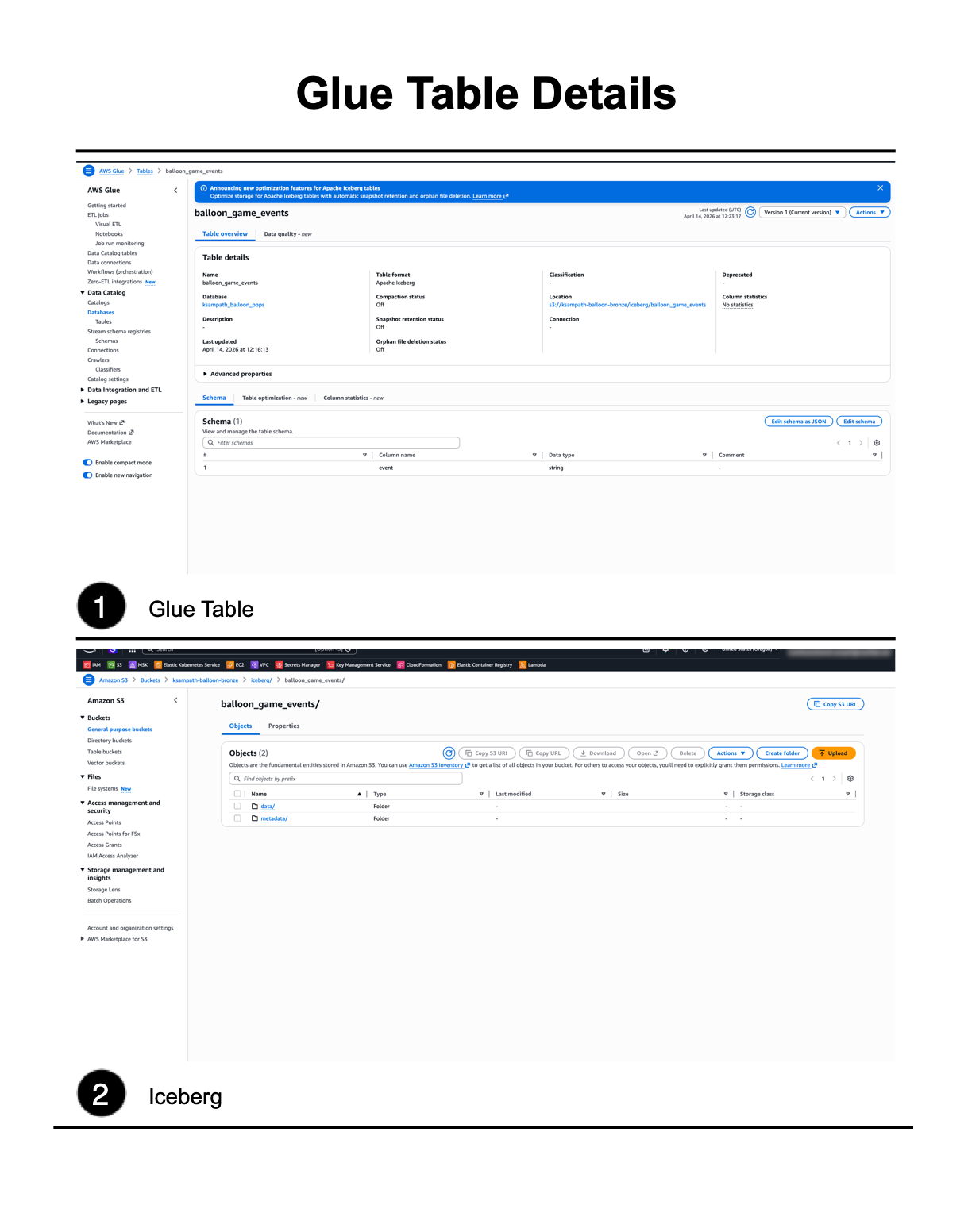

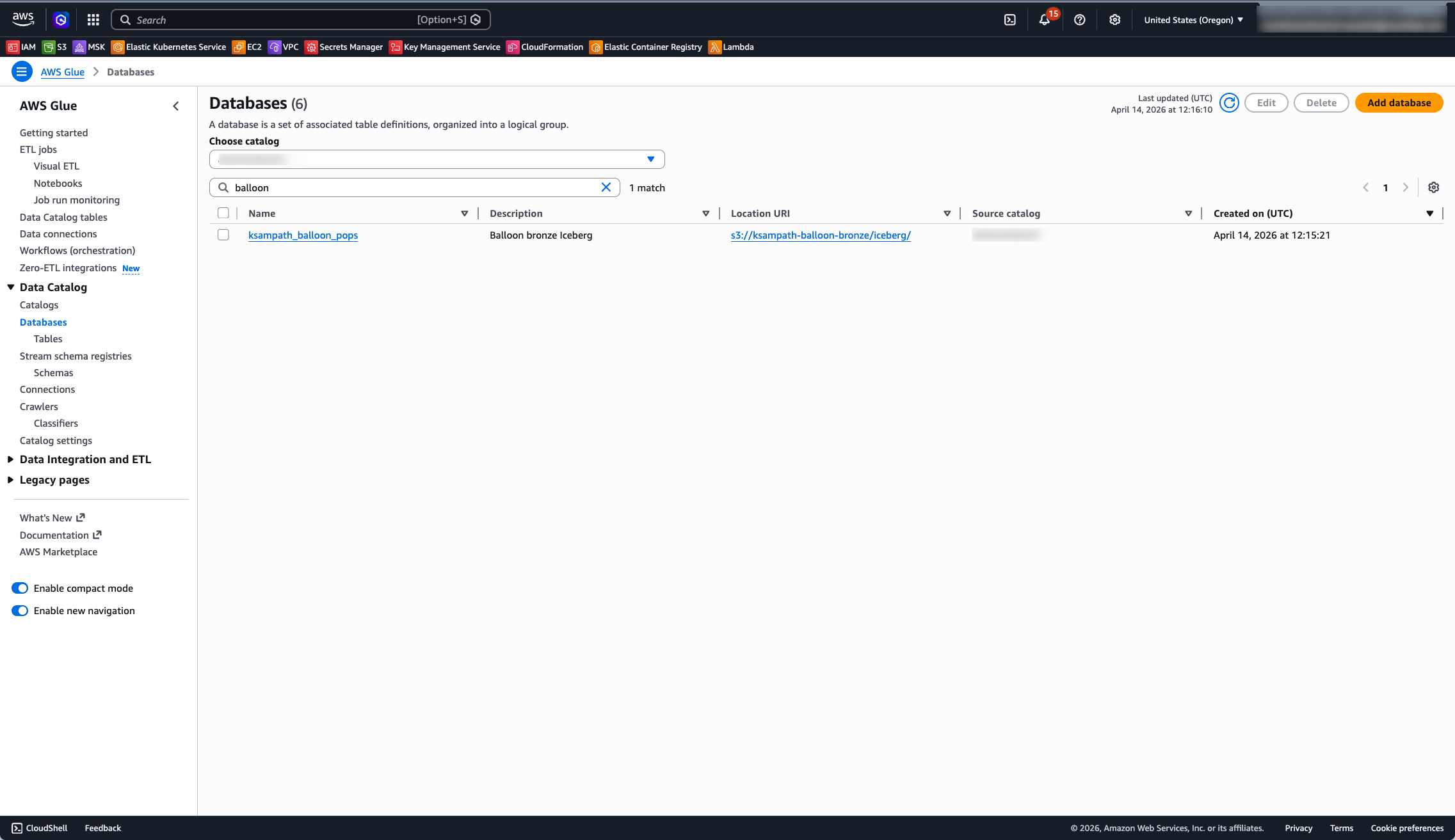

Verify in AWS Console

Optional: Query in Athena

Snowflake Catalog Linked Database (CLD)

Easy Path — Interactive Notebook

Detailed Path

Role requirement: The commands in this chapter require ACCOUNTADMIN or a role with CREATE INTEGRATION, CREATE DATABASE, and GRANT privileges. The lab defaults to SNOWFLAKE_ROLE = ACCOUNTADMIN set in .env. Confirm this before running any snow sql commands.

Create IAM Role

task snowflake:create-glue-catalog-read-role

Notebook path (CloudFormation): The interactive notebook uses a single CloudFormation template instead of individual task commands for IAM and Lake Formation setup. It creates the catalog integration as ENABLED = FALSE first, extracts trust values from DESC INTEGRATION, and passes them as stack parameters — eliminating the manual trust-render-apply cycle. See the notebook for details.

Generate SQL

task snowflake:generate-lab-sql

task snowflake:generate-lab-sql-stdout

Create Catalog Integration

snow sql --filename snowflake/lab/generated/01_catalog_integration.generated.sql

Tip: Breaking the chicken-egg dependency. The notebook creates the catalog integration with ENABLED = FALSE. This generates API_AWS_IAM_USER_ARN and API_AWS_EXTERNAL_ID immediately without requiring the IAM role to exist yet. After deploying the CloudFormation stack with the real trust values, the integration is enabled via ALTER CATALOG INTEGRATION … SET ENABLED = TRUE. This avoids a two-pass trust policy update.

Describe and Capture Trust Fields

task snowflake:describe-catalog-integration

DESC CATALOG INTEGRATION glue_rest_catalog_int;

Apply IAM Trust

task snowflake:render-glue-catalog-trust

task snowflake:apply-glue-catalog-trust-from-rendered

Verify Catalog Integration

SELECT SYSTEM$VERIFY_CATALOG_INTEGRATION('glue_rest_catalog_int');

Create Catalog-Linked Database

snow sql --filename snowflake/lab/generated/02_cld_verify.generated.sql

CREATE OR REPLACE DATABASE balloon_game_events
  COMMENT = 'CLD: Glue bronze Iceberg'
  LINKED_CATALOG = (
    CATALOG = 'glue_rest_catalog_int'
  );

Note: Any change to Lake Formation permissions or IAM trust after a link failure requires re-creating the CLD. After fixing the LF/IAM settings, re-run CREATE OR REPLACE DATABASE … LINKED_CATALOG = (…) and re-apply GRANT USAGE ON INTEGRATION glue_rest_catalog_int TO ROLE <your_role>. See Privileges Lost After CLD Recreate in Troubleshooting.

SELECT SYSTEM$CATALOG_LINK_STATUS('balloon_game_events');

SELECT SYSTEM$GET_CATALOG_LINKED_DATABASE_CONFIG('balloon_game_events');

Discover and Query

SHOW SCHEMAS IN DATABASE balloon_game_events;

-- Replace <remote_schema> with your GLUE_DATABASE name in lowercase
SHOW ICEBERG TABLES IN SCHEMA balloon_game_events."<remote_schema>";

SELECT
  PARSE_JSON(event):player::STRING         AS player,
  PARSE_JSON(event):balloon_color::STRING  AS balloon_color,
  PARSE_JSON(event):score::INTEGER         AS score,
  PARSE_JSON(event):event_ts::TIMESTAMP_TZ AS event_ts
FROM balloon_game_events."<remote_schema>"."balloon_game_events"
LIMIT 10;

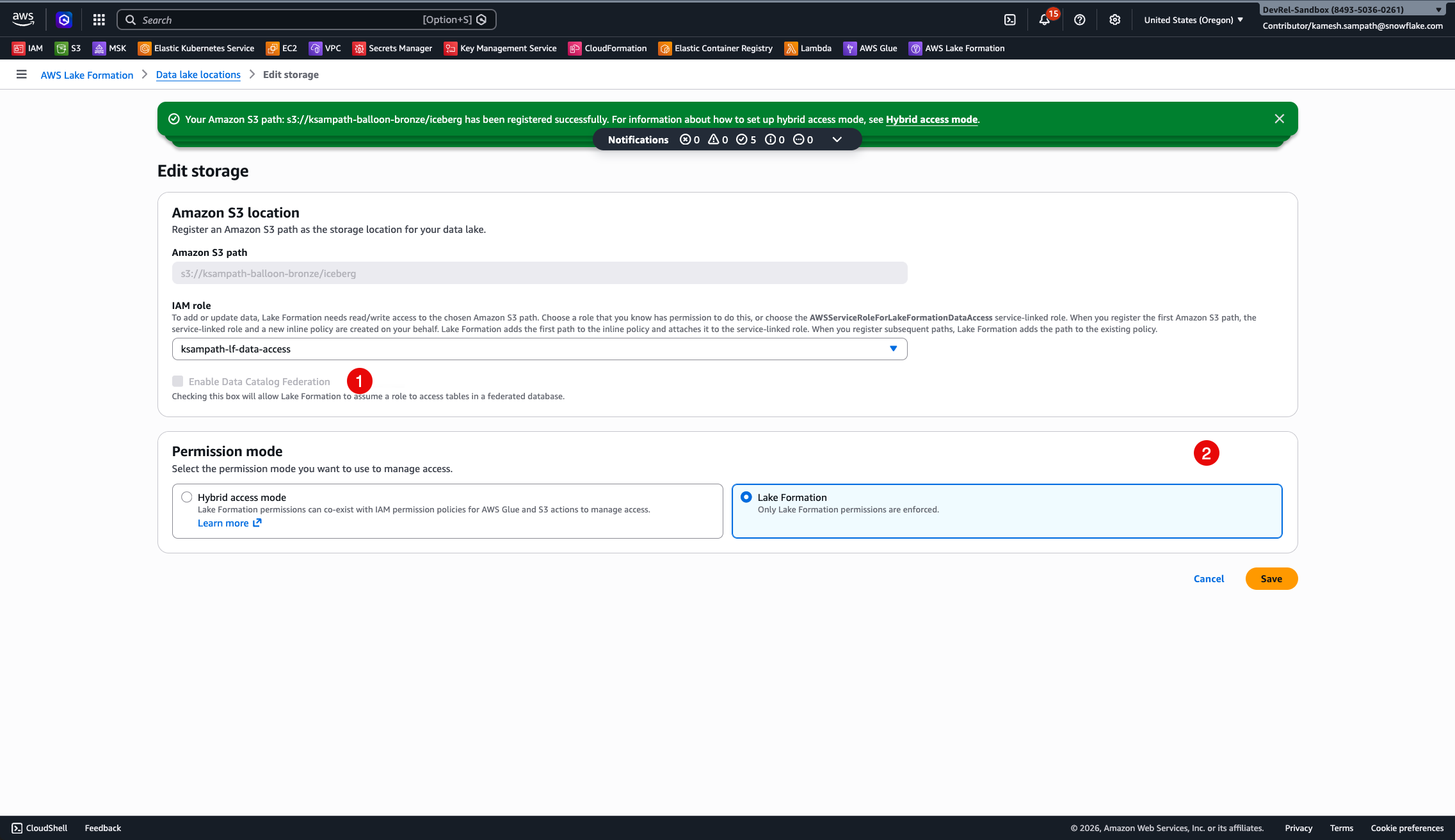

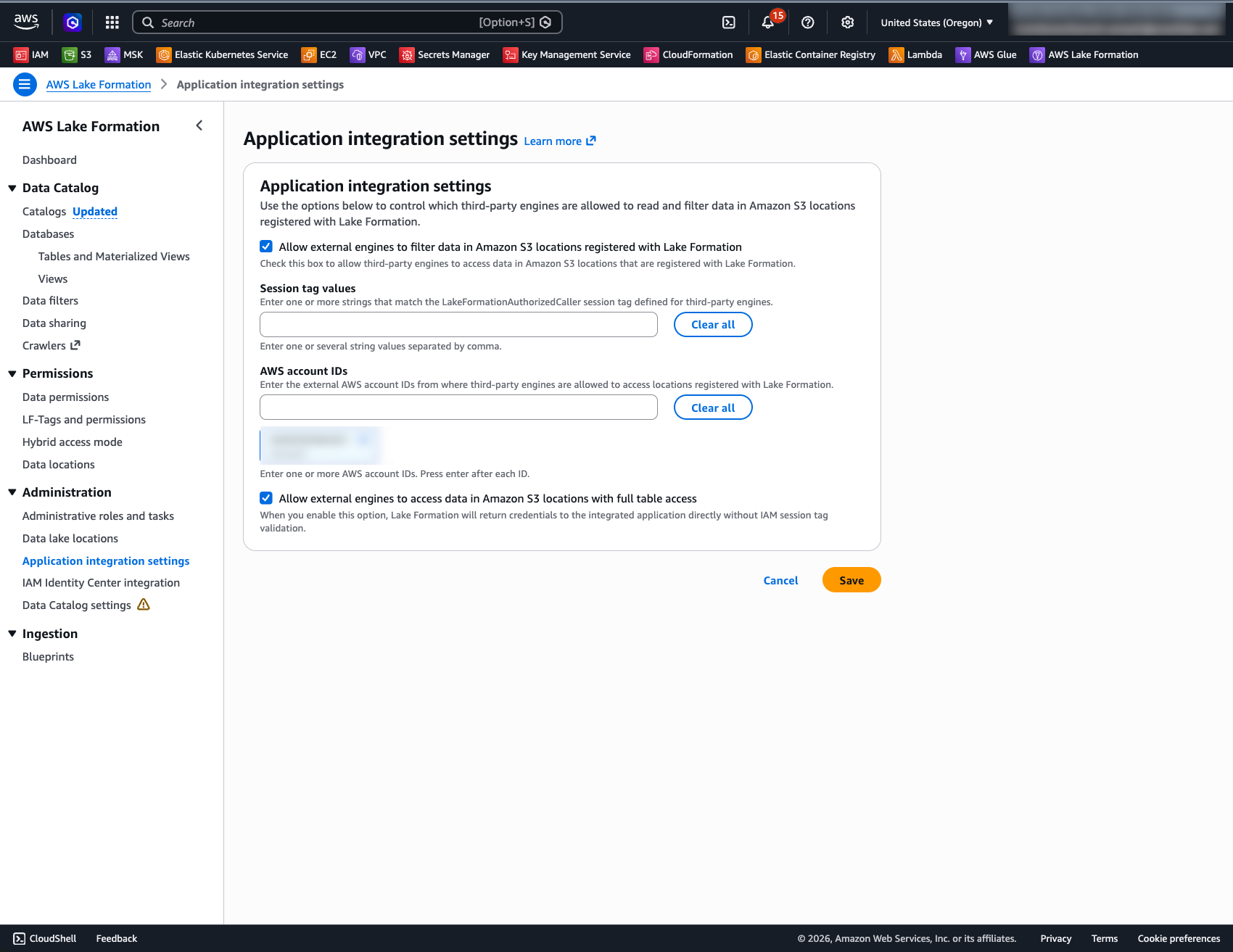

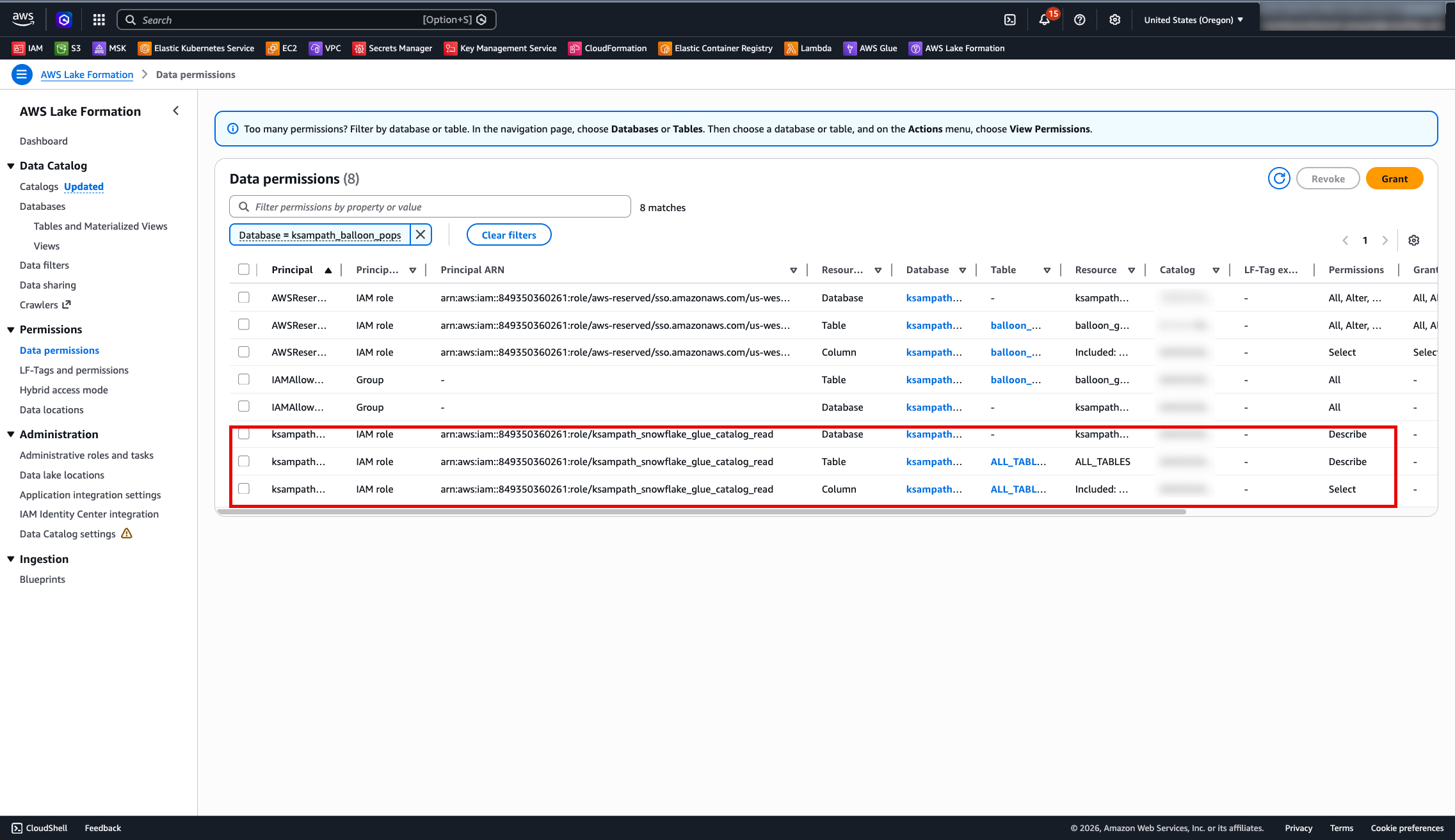

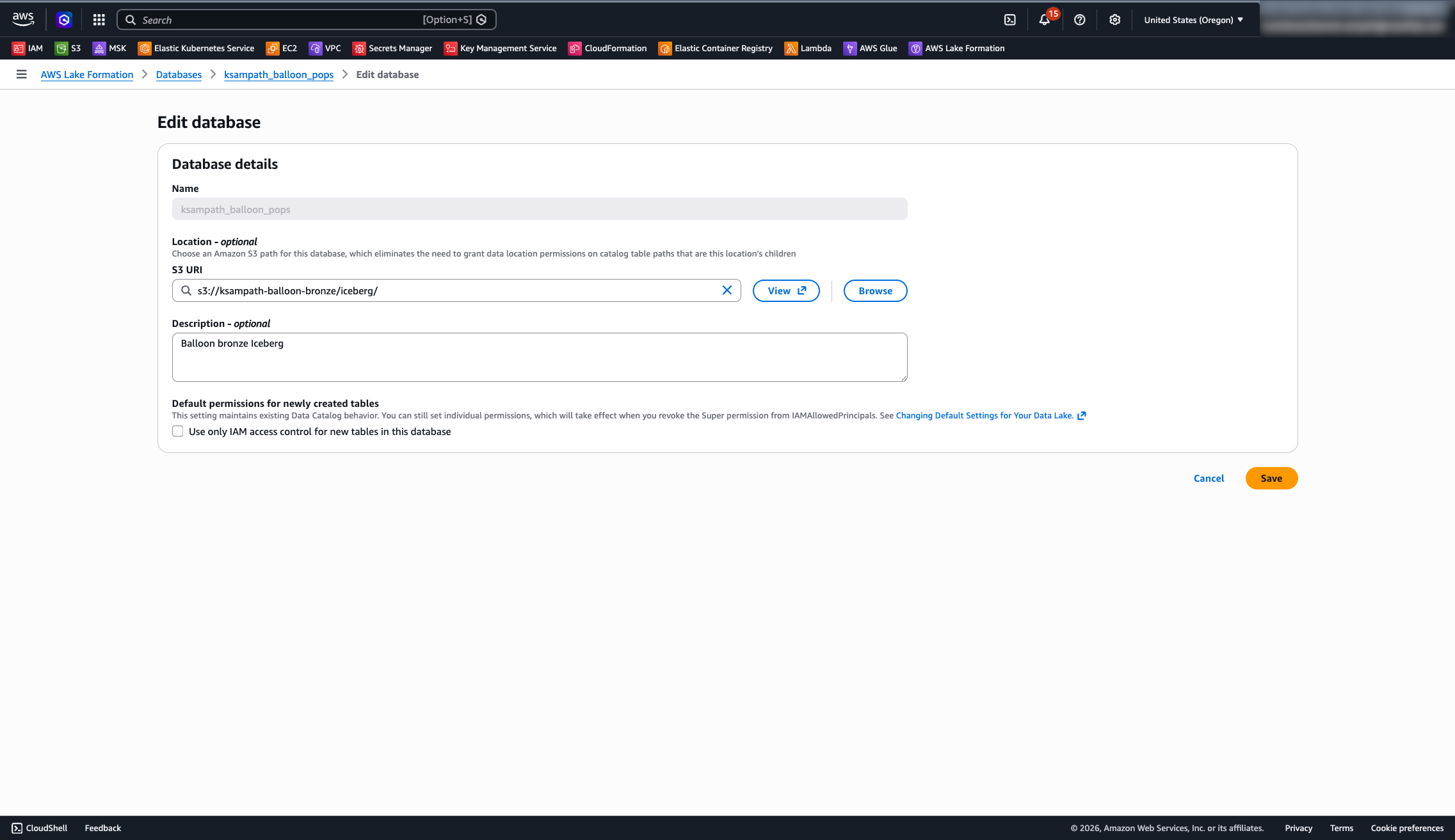

Lake Formation Console Checks

When to check: Run these checks only if SYSTEM$CATALOG_LINK_STATUS('balloon_game_events') reports failures. A healthy link returns:

{"failureDetails":[],"executionState":"RUNNING","lastLinkAttemptStartTime":"..."}

Notebook users: The interactive notebook includes the same four checks with annotated screenshots in Step 2c: Verify Lake Formation Settings.

Full Reference Sequence

Notebook alternative (ENABLED=FALSE flow):

Step	Command	What it does
2a	CREATE CATALOG INTEGRATION … ENABLED = FALSE	Generate trust values without connecting to Glue
2b	DESC INTEGRATION → aws cloudformation deploy	Extract trust values and deploy IAM + LF via CFN
2c	Verify Lake Formation settings in AWS Console	Confirm CFN deployed correctly
2d	ALTER CATALOG INTEGRATION … SET ENABLED = TRUE	Enable and verify with SYSTEM$VERIFY_CATALOG_INTEGRATION

Dynamic Iceberg Tables

Five Silver Tables

Easy Path — Interactive Notebook

Detailed Path

Configure Environment

task snowflake:print-env-hints

Dynamic Iceberg Tables use Snowflake Managed Storage — no external volume setup is required.

Iceberg type limitation: Iceberg tables do not support TIMESTAMP_TZ. Use TIMESTAMP_LTZ (maps to Iceberg timestamptz) or TIMESTAMP_NTZ (maps to Iceberg timestamp). If generated SQL uses TIMESTAMP_TZ, change it to TIMESTAMP_LTZ(6) or TIMESTAMP_NTZ.

Generate and Apply DT SQL

task dt:generate-sql

snow sql --filename snowflake/lab/generated/03_dt_pipelines.generated.sql

Verify

USE DATABASE balloon_silver;
USE SCHEMA silver;
SHOW DYNAMIC TABLES LIKE 'dt_%' IN SCHEMA;

-- Top players by score
SELECT player, total_score, bonus_pops, last_event_ts
FROM balloon_silver.silver.dt_player_leaderboard
ORDER BY total_score DESC NULLS LAST
LIMIT 15;

-- 15-second windowed scores
SELECT player, total_score, window_start, window_end
FROM balloon_silver.silver.dt_realtime_scores
ORDER BY window_start DESC, player
LIMIT 20;

snow sql --filename snowflake/lab/04_dt_verify_sample_queries.sql

Quick Teardown

DROP DATABASE IF EXISTS balloon_silver;

Snowflake Intelligence

Easy Path — Interactive Notebook

Detailed Path

Create the Semantic View

CREATE OR REPLACE SEMANTIC VIEW summit26_ar103_balloon_silver.silver.balloon_game_semantic_view

  TABLES (
    player_leaderboard AS summit26_ar103_balloon_silver.silver.dt_player_leaderboard
      PRIMARY KEY (player)
      WITH SYNONYMS ('leaderboard', 'rankings', 'top players')
      COMMENT = 'Aggregated player scores: total score, bonus pops, last event timestamp per player',

    color_stats AS summit26_ar103_balloon_silver.silver.dt_balloon_color_stats
      UNIQUE (player, balloon_color)
      WITH SYNONYMS ('color breakdown', 'player colors', 'color scores')
      COMMENT = 'Per-player breakdown by balloon color: pops, points, and bonus hits',

    realtime_scores AS summit26_ar103_balloon_silver.silver.dt_realtime_scores
      WITH SYNONYMS ('live scores', 'recent scores', 'hot streaks')
      COMMENT = '15-second windowed score totals per player for time-series analysis',

    colored_pops AS summit26_ar103_balloon_silver.silver.dt_balloon_colored_pops
      WITH SYNONYMS ('detailed pops', 'player color windows')
      COMMENT = 'Most granular view: per-player, per-color pops in 15-second time windows',

    color_trends AS summit26_ar103_balloon_silver.silver.dt_color_performance_trends
      WITH SYNONYMS ('color trends', 'color performance', 'best colors')
      COMMENT = 'Average score per pop and total pops by balloon color over 15-second windows'
  )

  RELATIONSHIPS (
    color_stats_to_leaderboard AS
      color_stats (player) REFERENCES player_leaderboard,
    realtime_to_leaderboard AS
      realtime_scores (player) REFERENCES player_leaderboard,
    colored_pops_to_leaderboard AS
      colored_pops (player) REFERENCES player_leaderboard,
    colored_pops_to_color_stats AS
      colored_pops (player, balloon_color) REFERENCES color_stats
  )

  FACTS (
    player_leaderboard.total_score AS player_leaderboard.total_score
      WITH SYNONYMS = ('total score', 'overall score', 'total points')
      COMMENT = 'Cumulative score across all balloon pops',
    player_leaderboard.bonus_pops AS player_leaderboard.bonus_pops
      WITH SYNONYMS = ('bonus pops', 'bonuses', 'bonus count')
      COMMENT = 'Number of pops where player hit their favorite color',
    color_stats.balloon_pops AS color_stats.balloon_pops
      WITH SYNONYMS = ('pops', 'pop count', 'times popped')
      COMMENT = 'Number of times this player popped this color',
    color_stats.points_by_color AS color_stats.points_by_color
      WITH SYNONYMS = ('points by color', 'color points', 'color score')
      COMMENT = 'Total points earned from popping this color',
    color_stats.bonus_hits AS color_stats.bonus_hits
      WITH SYNONYMS = ('bonus hits', 'color bonuses')
      COMMENT = 'Number of favorite-color bonus pops for this color',
    realtime_scores.window_score AS realtime_scores.total_score
      WITH SYNONYMS = ('window score', 'live score', 'current score')
      COMMENT = 'Sum of scores within the 15-second window',
    colored_pops.window_pops AS colored_pops.balloon_pops
      COMMENT = 'Pop count for this player+color in this window',
    colored_pops.window_points AS colored_pops.points_by_color
      COMMENT = 'Points for this player+color in this window',
    colored_pops.window_bonus AS colored_pops.bonus_hits
      COMMENT = 'Bonus pops for this player+color in this window',
    color_trends.avg_score_per_pop AS color_trends.avg_score_per_pop
      WITH SYNONYMS = ('efficiency', 'points per pop', 'scoring rate', 'best value')
      COMMENT = 'Average points earned per pop of this color in this window',
    color_trends.total_pops AS color_trends.total_pops
      WITH SYNONYMS = ('volume', 'popularity', 'total pops')
      COMMENT = 'Total pops of this color in this window'
  )

  DIMENSIONS (
    player_leaderboard.player_name AS player_leaderboard.player
      WITH SYNONYMS = ('player', 'gamer', 'username', 'who')
      COMMENT = 'Unique player identifier',
    player_leaderboard.last_active AS player_leaderboard.last_event_ts
      WITH SYNONYMS = ('last active', 'last seen', 'last played')
      COMMENT = 'Timestamp of the most recent game event for this player',
    color_stats.cs_player AS color_stats.player
      COMMENT = 'Player identifier in color stats',
    color_stats.color AS color_stats.balloon_color
      WITH SYNONYMS = ('balloon color', 'color', 'balloon type')
      COMMENT = 'Color of the balloon (red, blue, green, yellow, etc.)',
    color_stats.cs_last_event AS color_stats.last_event_ts
      COMMENT = 'Most recent pop of this color by this player',
    realtime_scores.rs_player AS realtime_scores.player
      COMMENT = 'Player identifier in realtime scores',
    realtime_scores.window_start AS realtime_scores.window_start
      WITH SYNONYMS = ('start time', 'window start')
      COMMENT = 'Start of the 15-second time window',
    realtime_scores.window_end AS realtime_scores.window_end
      WITH SYNONYMS = ('end time', 'window end')
      COMMENT = 'End of the 15-second time window',
    colored_pops.cp_player AS colored_pops.player
      COMMENT = 'Player identifier in colored pops',
    colored_pops.cp_color AS colored_pops.balloon_color
      COMMENT = 'Balloon color in the detailed window view',
    colored_pops.cp_window_start AS colored_pops.window_start
      COMMENT = 'Start of the time window',
    colored_pops.cp_window_end AS colored_pops.window_end
      COMMENT = 'End of the time window',
    color_trends.ct_color AS color_trends.balloon_color
      WITH SYNONYMS = ('trending color', 'color trend')
      COMMENT = 'Balloon color for performance trend analysis',
    color_trends.ct_window_start AS color_trends.window_start
      COMMENT = 'Start of the trend analysis window',
    color_trends.ct_window_end AS color_trends.window_end
      COMMENT = 'End of the trend analysis window'
  )

  METRICS (
    player_leaderboard.m_total_score AS SUM(player_leaderboard.total_score)
      WITH SYNONYMS = ('total points', 'combined score')
      COMMENT = 'Total cumulative score across all players',
    player_leaderboard.m_total_bonus_pops AS SUM(player_leaderboard.bonus_pops)
      WITH SYNONYMS = ('bonus total', 'all bonuses')
      COMMENT = 'Total bonus pops across all players',
    player_leaderboard.m_player_count AS COUNT(player_leaderboard.player)
      WITH SYNONYMS = ('number of players', 'how many players')
      COMMENT = 'Count of players on the leaderboard',
    color_stats.m_total_pops_by_color AS SUM(color_stats.balloon_pops)
      WITH SYNONYMS = ('total balloon pops', 'all pops')
      COMMENT = 'Total balloon pops aggregated across players for a given color',
    color_stats.m_total_points_by_color AS SUM(color_stats.points_by_color)
      WITH SYNONYMS = ('color points total', 'total color points')
      COMMENT = 'Total points aggregated across players for a given color',
    color_stats.m_avg_points_per_pop AS AVG(color_stats.points_by_color / NULLIF(color_stats.balloon_pops, 0))
      WITH SYNONYMS = ('efficiency', 'scoring rate', 'points per pop')
      COMMENT = 'Average points per pop across colors',
    realtime_scores.m_max_window_score AS MAX(realtime_scores.window_score)
      WITH SYNONYMS = ('best window', 'peak score', 'hottest moment')
      COMMENT = 'Highest score in any single 15-second window',
    realtime_scores.m_avg_window_score AS AVG(realtime_scores.window_score)
      WITH SYNONYMS = ('average window score', 'typical window')
      COMMENT = 'Average score per 15-second window',
    color_trends.m_avg_efficiency AS AVG(color_trends.avg_score_per_pop)
      WITH SYNONYMS = ('trend efficiency', 'color efficiency')
      COMMENT = 'Weighted average score per pop across time windows',
    color_trends.m_total_pops AS SUM(color_trends.total_pops)
      WITH SYNONYMS = ('color popularity', 'total color pops')
      COMMENT = 'Total balloon pops across all colors and time windows'
  )

  COMMENT = 'AI-ready semantic layer over balloon game silver Dynamic Iceberg Tables'

  AI_SQL_GENERATION 'This is a balloon popping game. Players pop colored balloons to earn points. Some pops are bonus pops worth extra. The leaderboard has overall rankings by total_score. Color stats show which colors each player pops most and points per color. Realtime scores show 15-second windows of activity. Color trends show which balloon colors give the best points-per-pop over time. When asked about the top player, use the leaderboard total_score. When asked which color scores best, use color_trends avg_score_per_pop. When asked who is hot right now, use realtime_scores with the most recent window_start.';

Verify the Semantic View

SHOW SEMANTIC VIEWS IN SCHEMA balloon_silver.silver;

DESC SEMANTIC VIEW balloon_silver.silver.balloon_game_semantic_view;

Configure Snowflake Intelligence with the Semantic View

Required Privileges

Production note: In a production environment, you would grant SNOWFLAKE.CORTEX_USER and REFERENCES + SELECT on the Semantic View to consumer roles:

GRANT DATABASE ROLE SNOWFLAKE.CORTEX_USER TO ROLE <consumer_role>;
GRANT REFERENCES, SELECT ON SEMANTIC VIEW balloon_silver.silver.balloon_game_semantic_view
  TO ROLE <consumer_role>;

Create the Agent

-- Notification integration for email delivery
CREATE OR REPLACE NOTIFICATION INTEGRATION email_integration
  TYPE = EMAIL
  ENABLED = TRUE
  DEFAULT_SUBJECT = 'Balloon Game Analytics';

-- Stored procedure that the agent calls to send emails
CREATE OR REPLACE PROCEDURE balloon_silver.silver.send_email(
    recipient_email VARCHAR,
    subject VARCHAR,
    body VARCHAR
)
RETURNS VARCHAR
LANGUAGE SQL
AS
BEGIN
    CALL SYSTEM$SEND_EMAIL(
        'email_integration',
        :recipient_email,
        :subject,
        :body,
        'text/html'
    );
    RETURN 'Email sent successfully to ' || :recipient_email;
END;

-- Grant execute to your role (ACCOUNTADMIN already has it)
GRANT USAGE ON PROCEDURE balloon_silver.silver.send_email(VARCHAR, VARCHAR, VARCHAR)
  TO ROLE ACCOUNTADMIN;

Source: Adapted from the official Snowflake Intelligence setup.

Note: The Email tool is optional for this lab. Skip it if you only want to explore data interactively. Your Snowflake user must have a verified email address for delivery to work.

Access the Agent

How it works: When a user asks a question, the agent routes it to Cortex Analyst, which reads the Semantic View's table/column descriptions, relationships, and primary keys to generate accurate SQL. The query executes against your silver Dynamic Iceberg Tables and returns results in the chat — no SQL knowledge required.

Try It with Snowflake Intelligence

Why this matters: Your silver data was already queryable by SQL users and BI tools. The Semantic View now makes it queryable by anyone — business analysts, executives, or automated agents — using plain English. The same Iceberg data powers dashboards, cross-engine queries (DuckDB), and AI-driven analytics.

SiS Dashboard

Recommended: Try the Easy Path first. Watch Cortex Code encounter errors (missing packages, unsupported features, permission gaps) and self-heal. Then ask it to generate the "ideal prompt" that would have worked in one shot — that's the core lesson of Intent-Driven Development (IDD).

Easy Path: Intent-Driven (Cortex Code)

Round 1 — State Your Intent

First, ask me the following before you start building:

1. What database.schema has my game's Dynamic Tables?
2. Where should the Streamlit app and stage be created?
3. What warehouse should it use?

Then, build me a multi-page Streamlit in Snowflake dashboard for my balloon popper game using the Dynamic Tables from the schema above.

Structure the app in its own directory with a pages/ directory:

- streamlit_app.py — home page with a game summary and key metrics
- pages/1_Leaderboard.py — top 5 player rankings, score gaps, bar chart
- pages/2_Color_Breakdown.py — pops by color, avg points per pop, player-color heatmap, players favorite color
- pages/3_Trends.py — color value over time, player scores over time

I want to answer:
  * Who is winning and by how much?
  * Which colors are most popular?
  * Which color is worth more points? How are scores trending?

Make it auto-refreshing, clean charts, easy to read at a glance. Handle missing data gracefully. Add a color scheme toggle. Use get_active_session(), wide layout, lowercase column names from Snowpark before passing to pandas.

Round 2 — Ask CoCo to Reflect

Look at the errors you encountered and the fixes you made while
building this dashboard. Based on that experience, write me the
precise, optimized prompt that would have built this app correctly
in one shot — no errors, no retries. Include every technical
constraint and detail you had to discover along the way.

Round 3 (Optional) — Prove the Difference

Detailed Path (CLI)

Prepare the APPS Schema

CREATE SCHEMA IF NOT EXISTS balloon_silver.apps;

GRANT USAGE ON DATABASE balloon_silver TO ROLE <your_role>;
GRANT USAGE ON SCHEMA balloon_silver.silver TO ROLE <your_role>;
GRANT SELECT ON ALL DYNAMIC TABLES IN SCHEMA balloon_silver.silver TO ROLE <your_role>;
GRANT ALL ON SCHEMA balloon_silver.apps TO ROLE <your_role>;

Deploy the App

task snowflake:sis-deploy -- --open

snow streamlit deploy balloon_game_dashboard --project snowflake/sis --replace

uv run sis-deploy show-config

Open and Share

task snowflake:url

GRANT USAGE ON STREAMLIT balloon_silver.apps.balloon_game_dashboard TO ROLE <analyst_role>;

ALTER STREAMLIT balloon_silver.apps.balloon_game_dashboard ADD LIVE VERSION FROM LAST;

App Pages

DuckDB Integration

Preview feature: HIRC is in Public Preview. It works in all Snowflake public regions except government regions. No additional charges apply during preview.

What Is HIRC

https://<account>.snowflakecomputing.com/polaris/api/catalog

Easy Path — Interactive Notebook

Tip: To open in Google Colab directly, prepend https://colab.research.google.com/github/ to the notebook path:

https://colab.research.google.com/github/Snowflake-Labs/sfguide-lakehouse-iceberg-production-pipelines/blob/main/notebooks/duckdb_lab_guide.ipynb

Detailed Path

Quick Setup

SNOWFLAKE_ACCOUNT_URL=https://<org>-<account>.snowflakecomputing.com
SA_USER=${LAB_USERNAME}_duckdb_sa          # e.g. ksampath_duckdb_sa
SA_ROLE=${LAB_USERNAME}_duckdb_silver_reader
SNOWFLAKE_SILVER_DATABASE=${LAB_USERNAME}_balloon_silver

task snowflake:pat-create

Critical: GRANT SELECT ON ALL TABLES silently skips Dynamic Iceberg Tables. Use ON ALL DYNAMIC TABLES and ON FUTURE DYNAMIC TABLES.

GRANT USAGE ON DATABASE balloon_silver TO ROLE duckdb_silver_reader;
GRANT USAGE ON SCHEMA balloon_silver.silver TO ROLE duckdb_silver_reader;
GRANT SELECT ON ALL DYNAMIC TABLES IN SCHEMA balloon_silver.silver TO ROLE duckdb_silver_reader;
GRANT SELECT ON FUTURE DYNAMIC TABLES IN SCHEMA balloon_silver.silver TO ROLE duckdb_silver_reader;

Detailed Walkthrough

Prerequisites

What task snowflake:pat-create does

Security: For CI/CD environments, inject the PAT at runtime from a vault or secrets manager.

Grant Iceberg access (manual SQL)

CREATE ROLE IF NOT EXISTS duckdb_silver_reader;

GRANT USAGE ON DATABASE balloon_silver TO ROLE duckdb_silver_reader;
GRANT USAGE ON SCHEMA balloon_silver.silver TO ROLE duckdb_silver_reader;
GRANT SELECT ON ALL DYNAMIC TABLES IN SCHEMA balloon_silver.silver TO ROLE duckdb_silver_reader;
GRANT SELECT ON FUTURE DYNAMIC TABLES IN SCHEMA balloon_silver.silver TO ROLE duckdb_silver_reader;

Connect from DuckDB

INSTALL iceberg;
LOAD iceberg;
INSTALL httpfs;
LOAD httpfs;

CREATE SECRET iceberg_pat_secret (
  TYPE iceberg,
  CLIENT_ID '',
  CLIENT_SECRET '<your_pat>',
  OAUTH2_SERVER_URI 'https://<account>.snowflakecomputing.com/polaris/api/catalog/v1/oauth/tokens',
  OAUTH2_GRANT_TYPE 'client_credentials',
  OAUTH2_SCOPE 'session:role:duckdb_silver_reader'
);

ATTACH 'BALLOON_SILVER' AS balloon_silver (
  TYPE iceberg,
  SECRET iceberg_pat_secret,
  ENDPOINT 'https://<account>.snowflakecomputing.com/polaris/api/catalog',
  SUPPORT_NESTED_NAMESPACES false
);

USE balloon_silver.SILVER;
SHOW TABLES;

SELECT player, total_score, bonus_pops, last_event_ts
FROM balloon_silver.SILVER.DT_PLAYER_LEADERBOARD
ORDER BY total_score DESC NULLS LAST
LIMIT 10;

Limitations

Case-Sensitive Identifiers

-- Wrong: lowercase identifiers fail with "table does not exist"
SELECT * FROM balloon_silver.silver.dt_player_leaderboard;

-- Correct: uppercase matches Snowflake's internal representation
SELECT * FROM balloon_silver.SILVER.DT_PLAYER_LEADERBOARD;

Cleanup

Snowflake Objects

DROP DATABASE IF EXISTS balloon_silver;

SHOW STREAMLITS IN SCHEMA balloon_silver.apps;
DROP STREAMLIT IF EXISTS balloon_silver.apps.balloon_game_dashboard;

DROP DATABASE IF EXISTS balloon_game_events;

DROP CATALOG INTEGRATION IF EXISTS glue_rest_catalog_int;

task snowflake:pat-revoke

DROP USER IF EXISTS duckdb_sa;
DROP ROLE IF EXISTS duckdb_silver_reader;

See Privileges Lost After CLD Recreate in Troubleshooting if you recreate the CLD during teardown and re-setup.

Bronze (AWS)

task bronze:cleanup-dry-run

task bronze:cleanup

aws s3 rm "s3://$BRONZE_BUCKET_NAME/iceberg/" --recursive

Notebook users (CloudFormation): If you used the notebook's CloudFormation template, a single command removes all IAM roles, policies, Lake Formation registration, and permissions:

aws cloudformation delete-stack --stack-name snowflake-cld-iam --region $AWS_REGION
aws cloudformation wait stack-delete-complete --stack-name snowflake-cld-iam --region $AWS_REGION

If deletion fails due to active Lake Formation dependencies, check the CloudFormation Events tab for the failed resource.

Optional: Delete SIGV4 Lab Role

task bronze:cleanup-dry-run -- --delete-snowflake-catalog-iam-role

task bronze:cleanup -- --yes --delete-snowflake-catalog-iam-role

Troubleshooting

Credential Vending Error 094120

Glue Schema Not Found

-- See the exact name Snowflake discovered:
SHOW SCHEMAS IN DATABASE balloon_game_events;

-- Use it in double quotes:
SHOW ICEBERG TABLES IN SCHEMA balloon_game_events."ksampath_balloon_pops";

Integration DISABLED After Trust Apply

SELECT SYSTEM$VERIFY_CATALOG_INTEGRATION('glue_rest_catalog_int');

Empty Windowed DTs

task bronze:load-more

Missing USAGE on External Volume

GRANT USAGE ON EXTERNAL VOLUME <volume_name> TO ROLE <your_role>;

GRANT USAGE ON WAREHOUSE <warehouse_name> TO ROLE <your_role>;

Privileges Lost After CLD Recreate

GRANT USAGE ON INTEGRATION glue_rest_catalog_int TO ROLE <your_role>;

DuckDB HIRC: Role Not Found

DuckDB HIRC: Table Does Not Exist

SELECT * FROM balloon_silver.SILVER.DT_PLAYER_LEADERBOARD LIMIT 5;

Task References

Root Tasks

bronze:* Tasks

snowflake:* Tasks

dt:* Tasks

Conclusion And Resources

What You Learned

Related Resources
