概要

前提条件

学習する内容

必要なもの

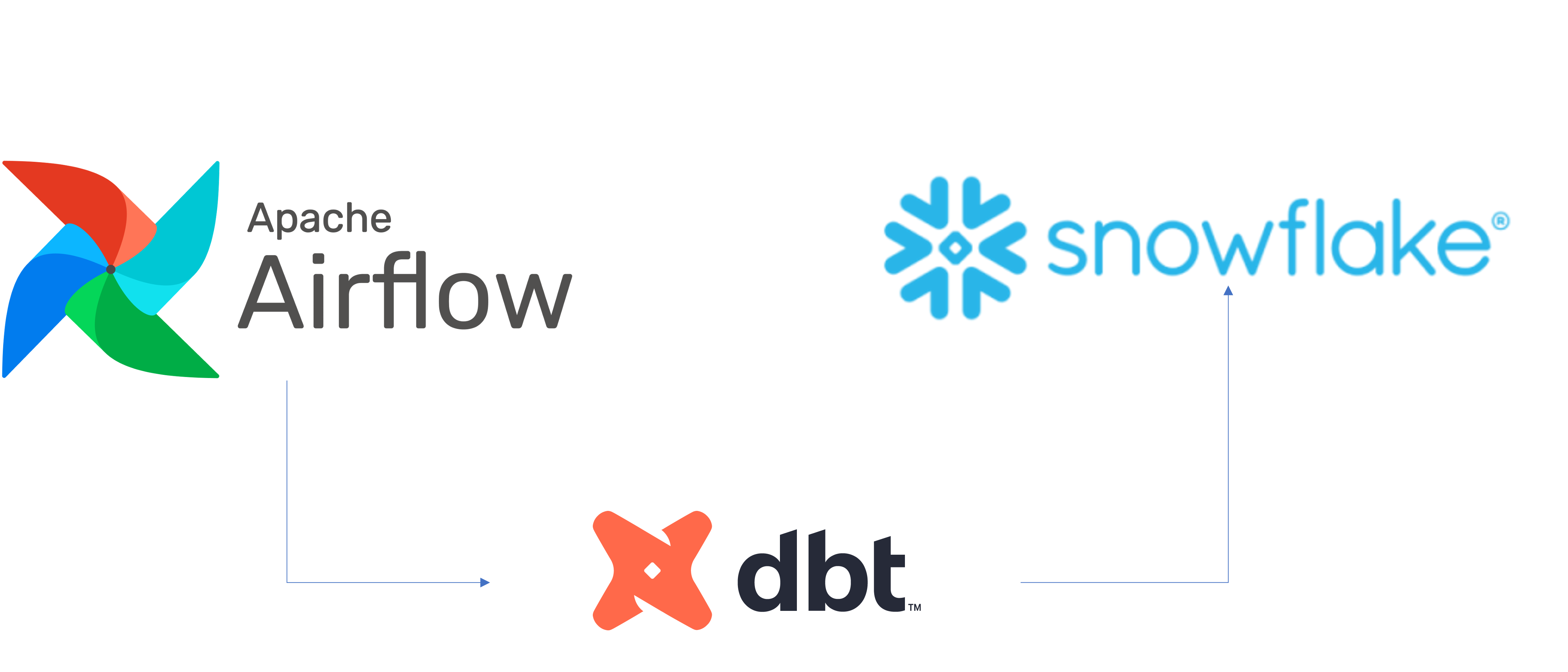

構築するもの

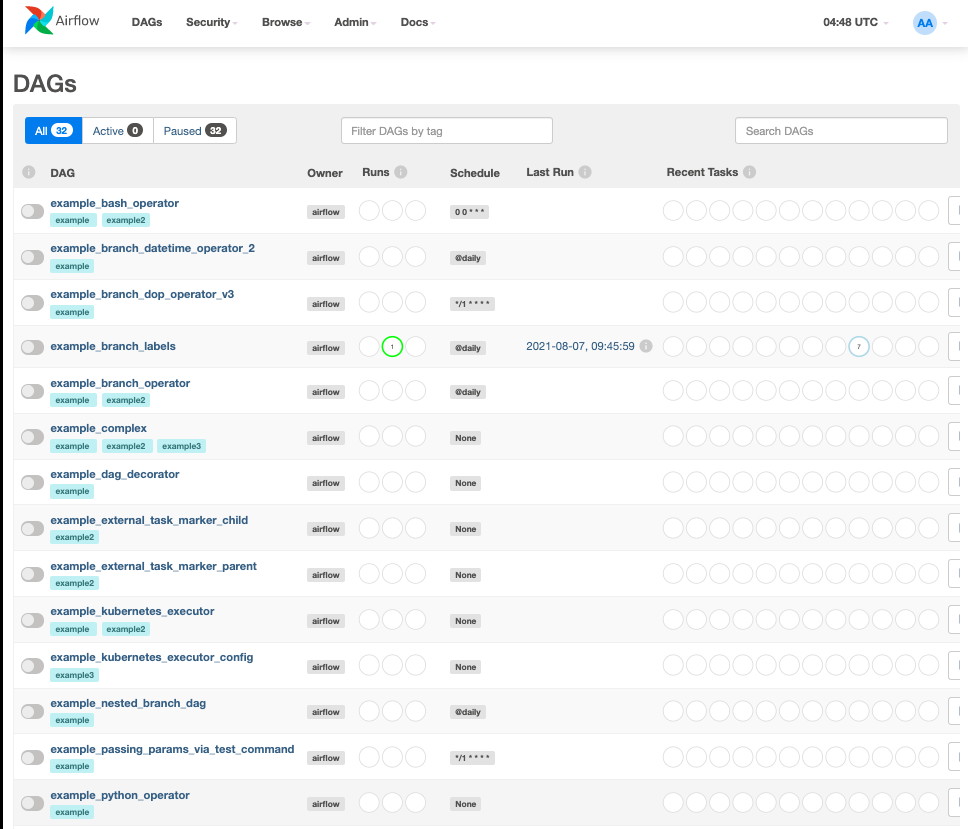

環境設定

mkdir dbt_airflow && cd "$_"

curl -LfO 'https://airflow.apache.org/docs/apache-airflow/2.3.0/docker-compose.yaml'

  volumes:
    - ./dags:/opt/airflow/dags
    - ./logs:/opt/airflow/logs
    - ./plugins:/opt/airflow/plugins
    - ./dbt:/dbt # add this in
    - ./dags:/dags # add this in

_PIP_ADDITIONAL_REQUIREMENTS=dbt==0.19.0

---

mkdir dags

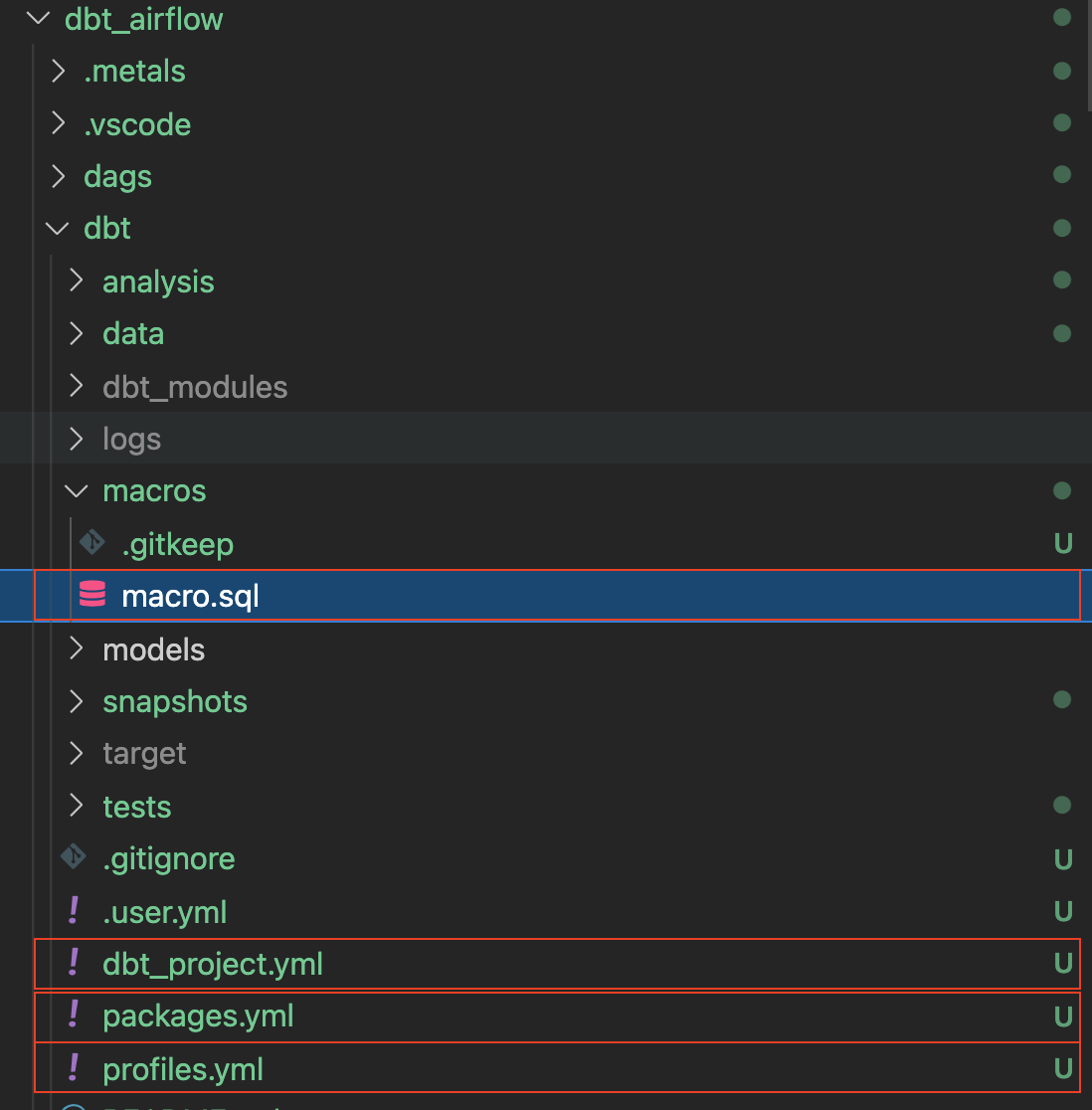

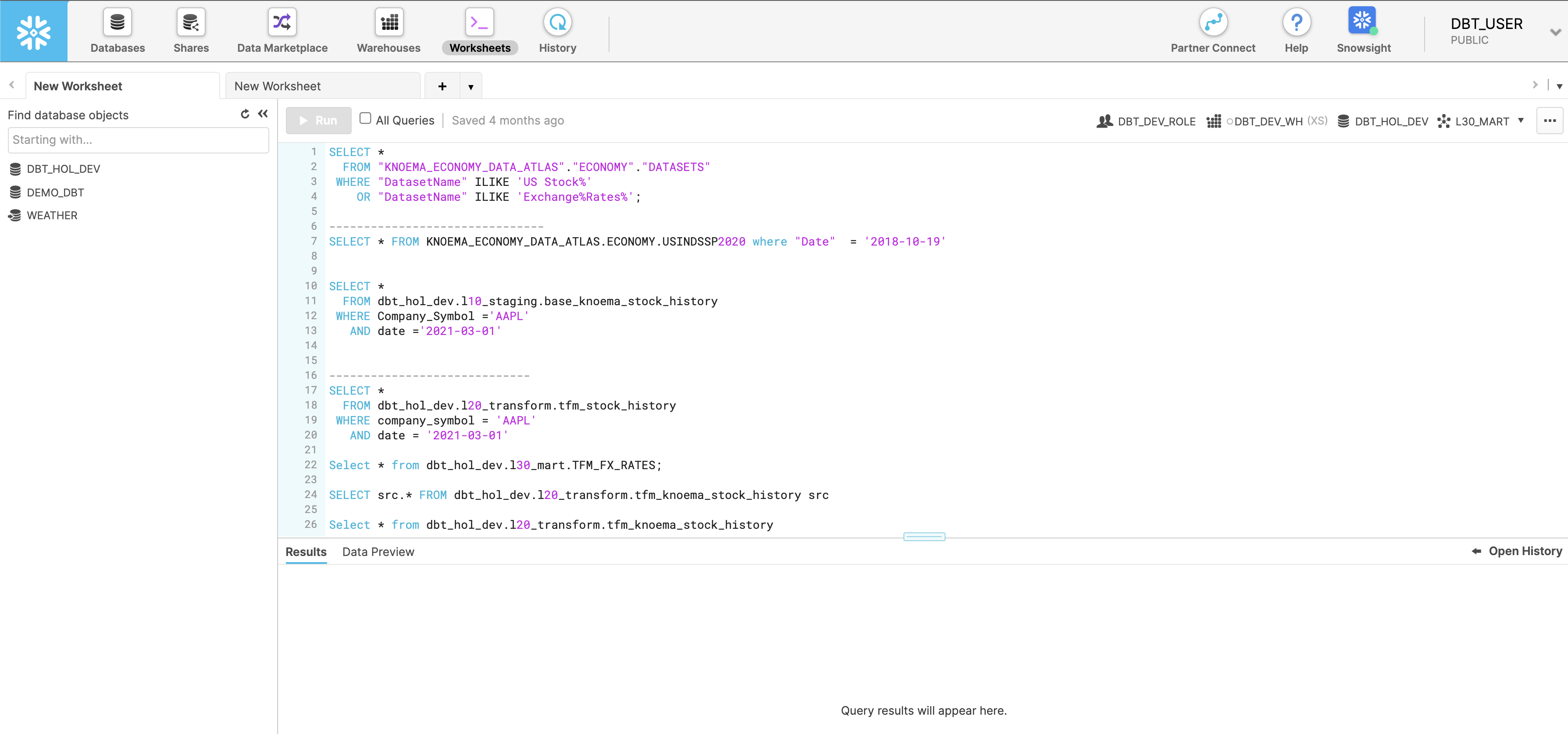

DBTプロジェクトの設定

USE ROLE SECURITYADMIN;

CREATE OR REPLACE ROLE dbt_DEV_ROLE COMMENT='dbt_DEV_ROLE';
GRANT ROLE dbt_DEV_ROLE TO ROLE SYSADMIN;

CREATE OR REPLACE USER dbt_USER PASSWORD='<PASSWORD>'
	DEFAULT_ROLE=dbt_DEV_ROLE
	DEFAULT_WAREHOUSE=dbt_WH
	COMMENT='dbt User';

GRANT ROLE dbt_DEV_ROLE TO USER dbt_USER;

-- Grant privileges to role
USE ROLE ACCOUNTADMIN;

GRANT CREATE DATABASE ON ACCOUNT TO ROLE dbt_DEV_ROLE;

/*---------------------------------------------------------------------------
Next we will create a virtual warehouse that will be used
---------------------------------------------------------------------------*/
USE ROLE SYSADMIN;

--Create Warehouse for dbt work
CREATE OR REPLACE WAREHOUSE dbt_DEV_WH
  WITH WAREHOUSE_SIZE = 'XSMALL'
  AUTO_SUSPEND = 120
  AUTO_RESUME = true
  INITIALLY_SUSPENDED = TRUE;

GRANT ALL ON WAREHOUSE dbt_DEV_WH TO ROLE dbt_DEV_ROLE;

CREATE OR REPLACE DATABASE DEMO_dbt

default:
  target: dev
  outputs:
    dev:
      type: snowflake
      ######## Please replace with your Snowflake account name
      ######## for example sg_demo.ap-southeast-1
      account: <ACCOUNT_URL>.<REGION>

      user: "{{ env_var('dbt_user') }}"
      ######## These environment variables dbt_user and dbt_password
      ######## are read from the variabls in Airflow which we will set later
      password: "{{ env_var('dbt_password') }}"

      role: dbt_dev_role
      database: demo_dbt
      warehouse: dbt_dev_wh
      schema: public
      threads: 200

packages:
  - package: fishtown-analytics/dbt_utils
    version: 0.6.4

models:
  my_new_project:
      # Applies to all files under models/example/
      transform:
          schema: transform
          materialized: view
      analysis:
          schema: analysis
          materialized: view

{% macro generate_schema_name(custom_schema_name, node) -%}
    {%- set default_schema = target.schema -%}
    {%- if custom_schema_name is none -%}
        {{ default_schema }}
    {%- else -%}
        {{ custom_schema_name | trim }}
    {%- endif -%}
{%- endmacro %}


{% macro set_query_tag() -%}
  {% set new_query_tag = model.name %} {# always use model name #}
  {% if new_query_tag %}
    {% set original_query_tag = get_current_query_tag() %}
    {{ log("Setting query_tag to '" ~ new_query_tag ~ "'. Will reset to '" ~ original_query_tag ~ "' after materialization.") }}
    {% do run_query("alter session set query_tag = '{}'".format(new_query_tag)) %}
    {{ return(original_query_tag)}}
  {% endif %}
  {{ return(none)}}
{% endmacro %}

dbt deps

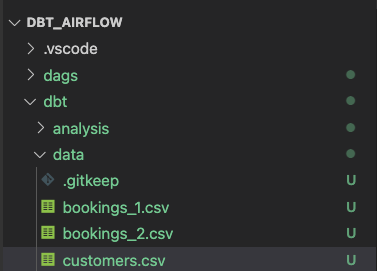

dbtでのCSVデータファイルの作成

id,booking_reference,hotel,booking_date,cost
1,232323231,Pan Pacific,2021-03-19,100
1,232323232,Fullerton,2021-03-20,200
1,232323233,Fullerton,2021-04-20,300
1,232323234,Jackson Square,2021-03-21,400
1,232323235,Mayflower,2021-06-20,500
1,232323236,Suncity,2021-03-19,600
1,232323237,Fullerton,2021-08-20,700

id,booking_reference,hotel,booking_date,cost
2,332323231,Fullerton,2021-03-19,100
2,332323232,Jackson Square,2021-03-20,300
2,332323233,Suncity,2021-03-20,300
2,332323234,Jackson Square,2021-03-21,300
2,332323235,Fullerton,2021-06-20,300
2,332323236,Suncity,2021-03-19,300
2,332323237,Berkly,2021-05-20,200

id,first_name,last_name,birthdate,membership_no
1,jim,jone,1989-03-19,12334
2,adrian,lee,1990-03-10,12323

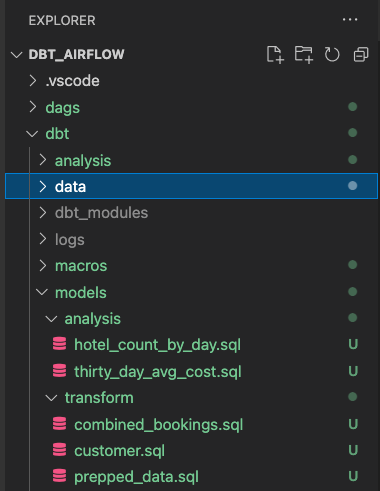

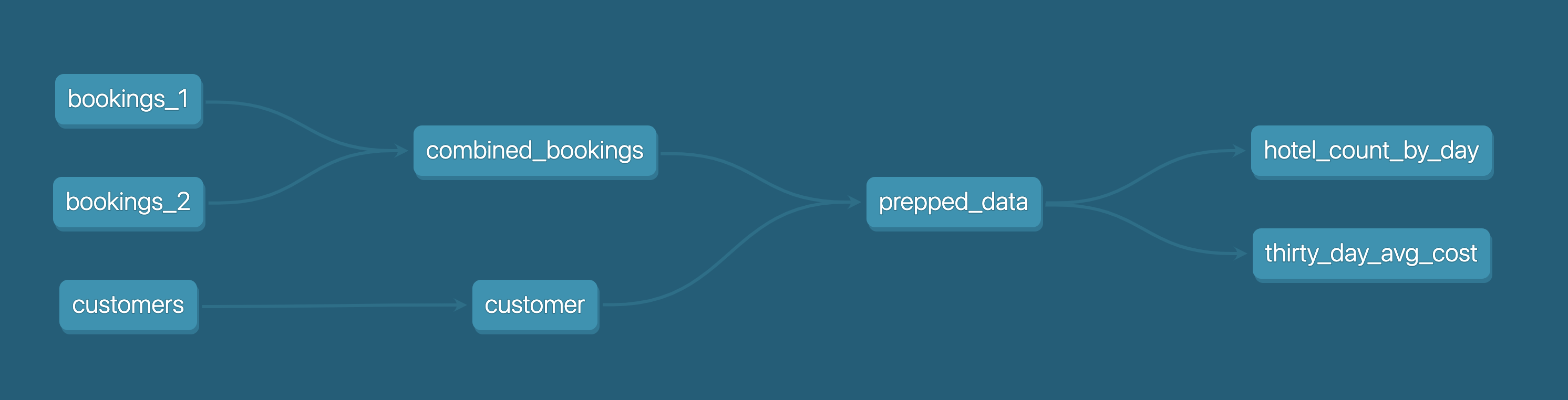

modelsフォルダへのdbtモデルの作成

transformフォルダのdbtモデル

{{ dbt_utils.union_relations(
    relations=[ref('bookings_1'), ref('bookings_2')]
) }}

SELECT ID
    , FIRST_NAME
    , LAST_NAME
    , birthdate
FROM {{ ref('customers') }}

SELECT A.ID
    , FIRST_NAME
    , LAST_NAME
    , birthdate
    , BOOKING_REFERENCE
    , HOTEL
    , BOOKING_DATE
    , COST
FROM {{ref('customer')}}  A
JOIN {{ref('combined_bookings')}} B
on A.ID = B.ID

analysisフォルダのdbtモデル

SELECT
  BOOKING_DATE,
  HOTEL,
  COUNT(ID) as count_bookings
FROM {{ ref('prepped_data') }}
GROUP BY
  BOOKING_DATE,
  HOTEL

SELECT
  BOOKING_DATE,
  HOTEL,
  COST,
  AVG(COST) OVER (
    ORDER BY BOOKING_DATE ROWS BETWEEN 29 PRECEDING AND CURRENT ROW
  ) as "30_DAY_AVG_COST",
  COST -   AVG(COST) OVER (
    ORDER BY BOOKING_DATE ROWS BETWEEN 29 PRECEDING AND CURRENT ROW
  ) as "DIFF_BTW_ACTUAL_AVG"
FROM {{ ref('prepped_data') }}

Airflow DAGの準備

from datetime import datetime
import os

from airflow import DAG
from airflow.operators.python import PythonOperator, BranchPythonOperator
from airflow.operators.bash import BashOperator
from airflow.operators.dummy_operator import DummyOperator

default_args = {
    'owner': 'airflow',
    'depends_on_past': False,
    'start_date': datetime(2020,8,1),
    'retries': 0
}


with DAG('1_init_once_seed_data', default_args=default_args, schedule_interval='@once') as dag:
    task_1 = BashOperator(
        task_id='load_seed_data_once',
        bash_command='cd /dbt && dbt seed --profiles-dir .',
        env={
            'dbt_user': '{{ var.value.dbt_user }}',
            'dbt_password': '{{ var.value.dbt_password }}',
            **os.environ
        },
        dag=dag
    )

task_1

from airflow import DAG
from airflow.operators.python import PythonOperator, BranchPythonOperator
from airflow.operators.bash import BashOperator
from airflow.operators.dummy_operator import DummyOperator
from datetime import datetime


default_args = {
    'owner': 'airflow',
    'depends_on_past': False,
    'start_date': datetime(2020,8,1),
    'retries': 0
}

with DAG('2_daily_transformation_analysis', default_args=default_args, schedule_interval='@once') as dag:
    task_1 = BashOperator(
        task_id='daily_transform',
        bash_command='cd /dbt && dbt run --models transform --profiles-dir .',
        env={
            'dbt_user': '{{ var.value.dbt_user }}',
            'dbt_password': '{{ var.value.dbt_password }}',
            **os.environ
        },
        dag=dag
    )

    task_2 = BashOperator(
        task_id='daily_analysis',
        bash_command='cd /dbt && dbt run --models analysis --profiles-dir .',
        env={
            'dbt_user': '{{ var.value.dbt_user }}',
            'dbt_password': '{{ var.value.dbt_password }}',
            **os.environ
        },
        dag=dag
    )

    task_1 >> task_2 # Define dependencies

Airflowのdocker-composeファイルの実行

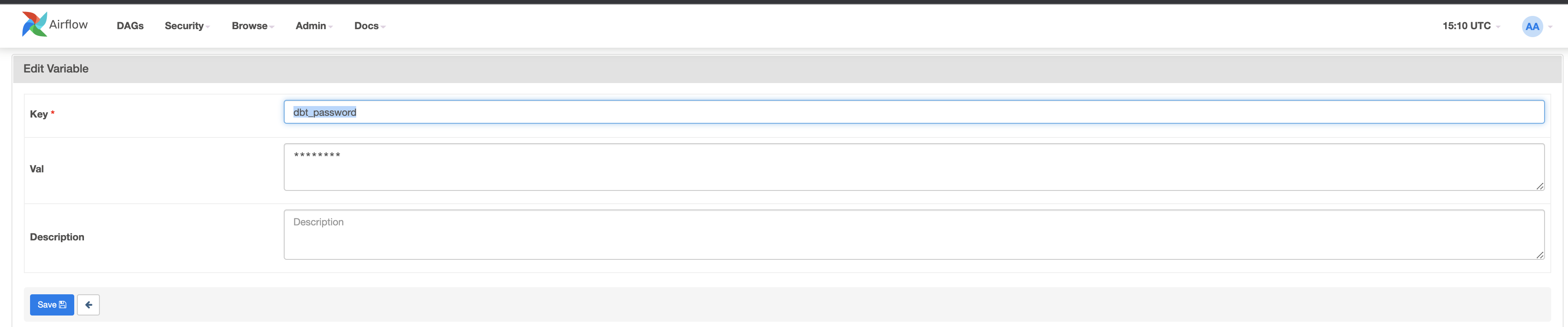

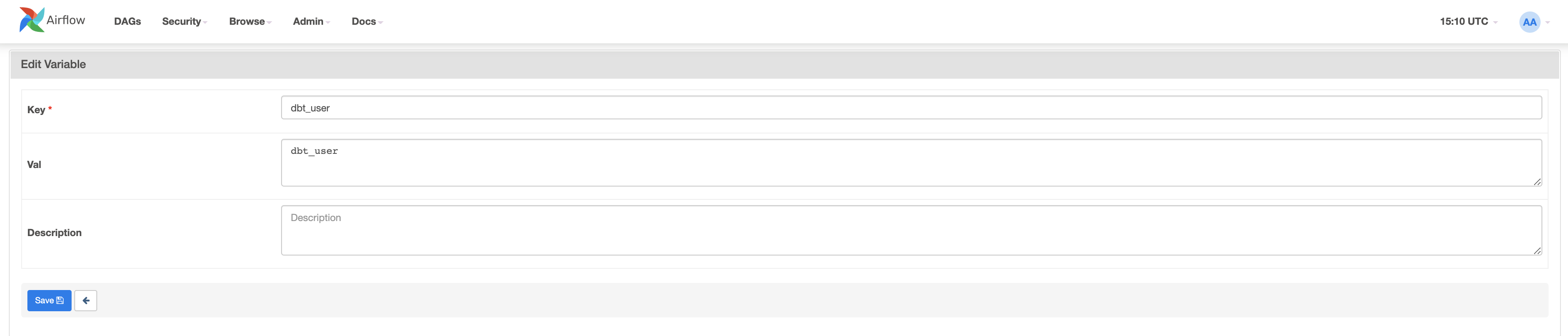

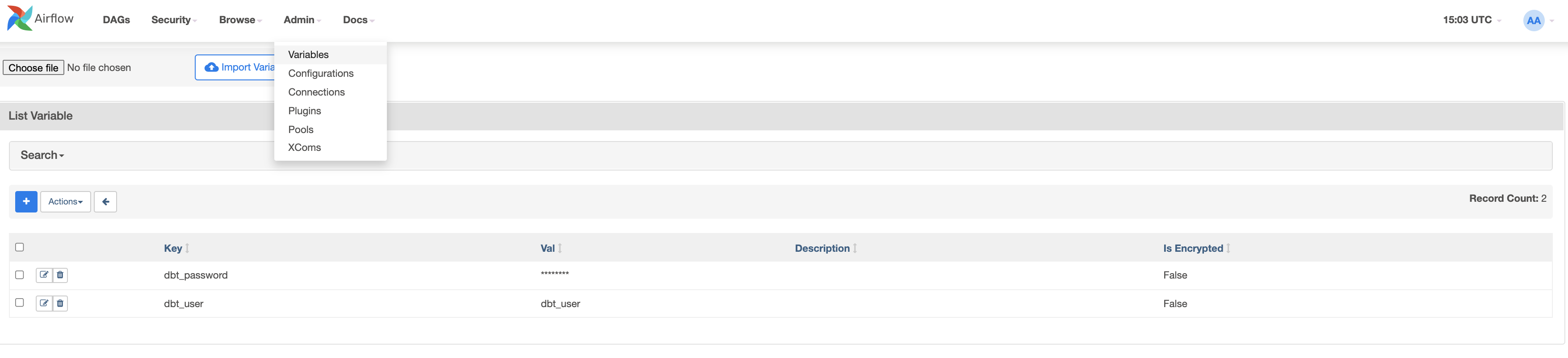

DAGのアクティブ化と実行

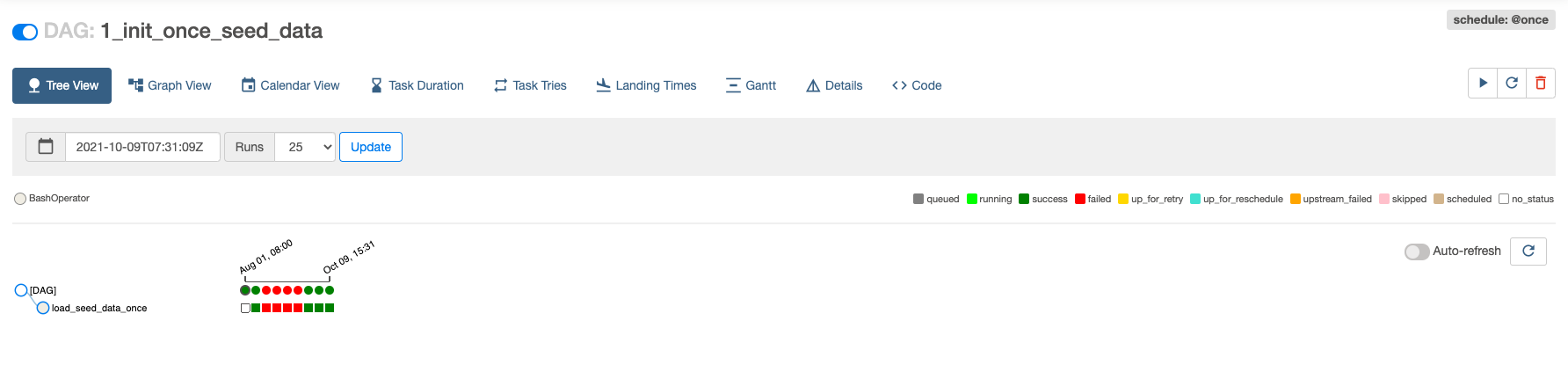

1_init_once_seed_dataの実行

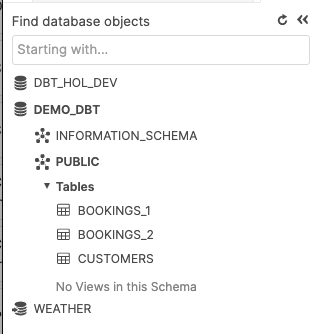

パブリックスキーマに作成されたテーブルのシードデータの表示

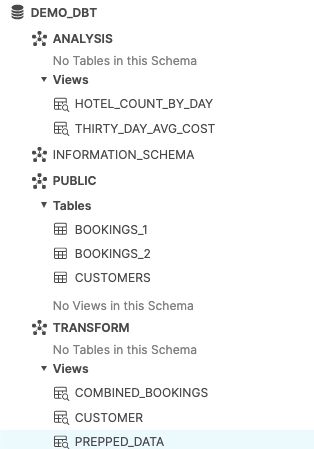

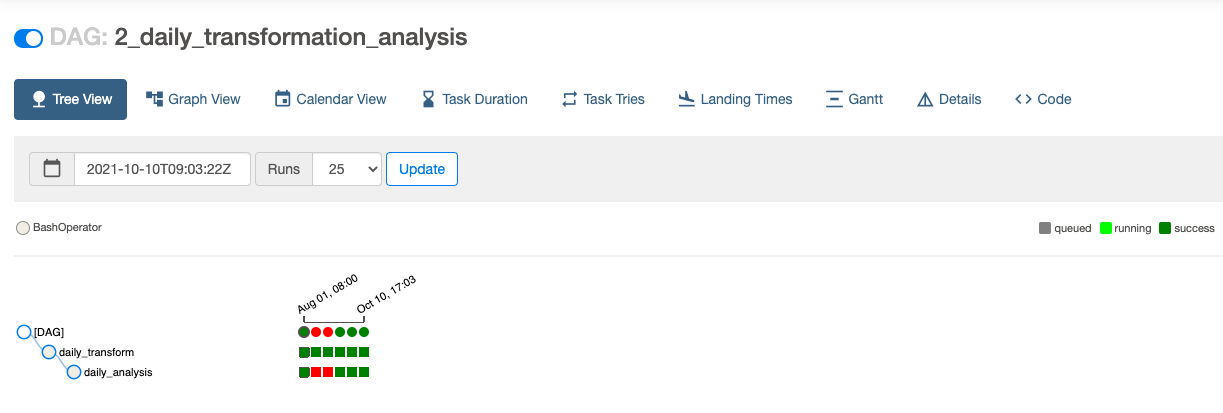

2_daily_transformation_analysisの実行

まとめ

関連リソース：

ここまで学んだ内容：
