Distributed Medical Image Processing with MONAI on Snowflake

Model Development

Carlos Guzman, Jeevan Rag, Joviane Bellegarde

Overview

Medical image registration is a critical task in healthcare AI, enabling the alignment of CT scans taken at different times or breathing phases. This guide demonstrates how to build a production-ready training and inference pipeline using MONAI (Medical Open Network for AI) on Snowflake with GPU acceleration.

In this Guide, you will build a complete medical image registration system that:

Downloads and processes lung CT scans from public datasets
Trains a LocalNet deep learning model using Snowflake ML Jobs on GPU compute pools
Logs the trained MONAI model natively to Snowflake's Model Registry
Runs distributed batch inference using the run_batch() API

What You Will Build

Data ingestion pipeline for NIfTI medical images
GPU-accelerated training using Snowflake ML Jobs
Native MONAI model registration with Snowflake Model Registry
Distributed batch inference pipeline with parallel processing
Results stored in Snowflake stages for downstream analysis

What You Will Learn

How to use Snowflake GPU compute pools for deep learning workloads
How to integrate MONAI medical imaging framework with Snowflake
How to leverage Snowflake ML Jobs (@remote decorator) for GPU training
How to log PyTorch/MONAI models natively to Snowflake Model Registry
How to run distributed batch inference with run_batch() API
How to store and retrieve medical images from Snowflake stages

Prerequisites

Familiarity with Python and deep learning concepts
Familiarity with medical imaging (helpful but not required)
A Snowflake account with access to GPU compute pools
Go to the Snowflake sign-up page and register for a free account

Architecture Overview

Solution Architecture

The MONAI medical image processing solution consists of one setup script and three notebooks:

File	Description
01_setup.sql	Snowflake infrastructure setup (roles, warehouse, compute pool, stages)
02_ingest_data.ipynb	Download and upload paired lung CT scans to Snowflake stages
03_train_and_register.ipynb	Train LocalNet model on GPU, log to Snowflake Model Registry
04_batch_inference.ipynb	Run distributed batch inference using `run_batch()` API

Model Architecture

LocalNet predicts a deformation displacement field (DDF) to align moving images to fixed images:

Moving Image (Inspiration CT) ──┐
                                ├── LocalNet ──► DDF ──► Aligned Image
Fixed Image (Expiration CT) ────┘

Input: 2 channels (moving + fixed CT scans)
Output: 3 channels (DDF x, y, z displacement components)
Loss: Mutual Information + Bending Energy regularization

Key Technologies

Technology	Purpose
MONAI	Medical imaging transforms, networks, and losses
PyTorch	Deep learning framework
Snowflake ML Jobs	GPU-accelerated remote training (`@remote` decorator)
Snowflake Model Registry	Native model logging and versioning
Batch Inference API	Distributed inference via `run_batch()`

Setup Snowflake Environment

In this step, you'll create all the Snowflake objects needed for the MONAI solution.

Step 1: Configure Snowflake Connection

Create or update your connection configuration in ~/.snowflake/connections.toml:

[monai-quickstart]
account = "your_account"
user = "your_user"
authenticator = "externalbrowser"  # or use password/key-pair

Step 2: Run the Setup Script

In Snowsight, click Projects, then Worksheets in the left navigation
Click + Worksheet to create a new SQL worksheet
Copy the contents of 01_setup.sql and paste into the worksheet
Run the script as ACCOUNTADMIN

The setup script creates:

Role: MONAI_USER with appropriate privileges
Warehouse: MONAI_WH (XSMALL size)
Database: MONAI_QUICKSTART_DB with ML schema
Stages: MEDICAL_IMAGES_STG, MODEL_ARTIFACTS_STG, BATCH_INPUT_STG, BATCH_OUTPUT_STG
GPU Compute Pool: MONAI_GPU_POOL (GPU_NV_S instances)
External Access Integrations: For PyPI and Zenodo access

Step 3: Verify Setup

After the setup script completes, verify the resources:

SHOW GRANTS TO ROLE MONAI_USER;
SHOW COMPUTE POOLS;

Run Data Ingestion Notebook

Step 1: Open the Notebook

Open 02_ingest_data.ipynb in your preferred Jupyter environment (VS Code, JupyterLab, or Snowflake Notebooks).

Step 2: Update Configuration

Update the CONNECTION_NAME variable to match your connection:

CONNECTION_NAME = "monai-quickstart"  # Your connection name from connections.toml

Step 3: Run All Cells

The notebook will:

Connect to Snowflake using your configured connection
Download the paired lung CT dataset from Zenodo (~279 MB)

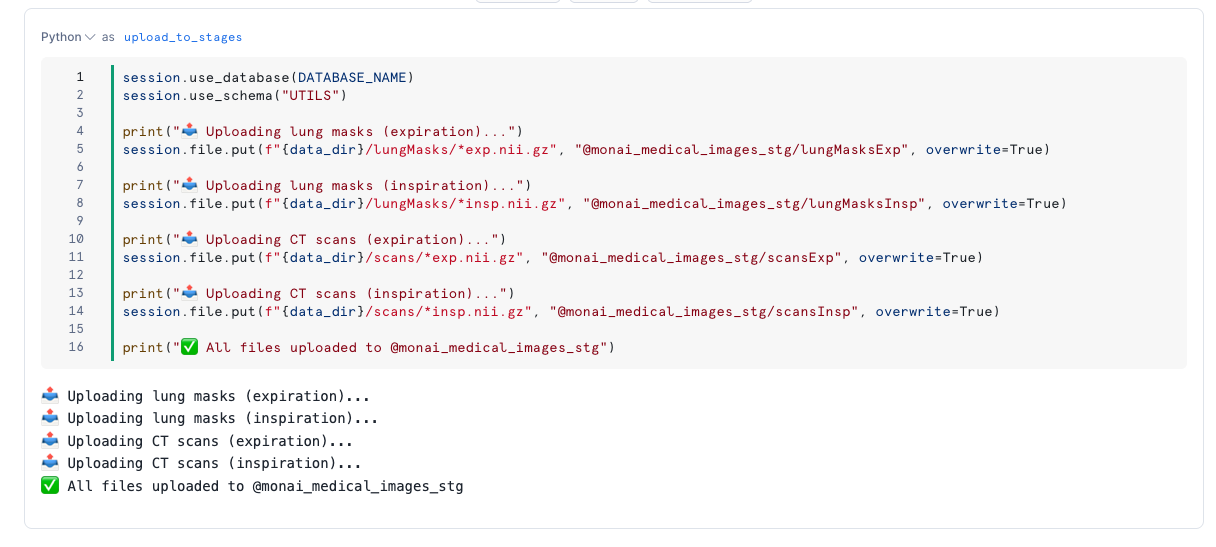

Upload 80 NIfTI files to Snowflake stages (40 scans + 40 lung masks)

Expected Output

After successful execution, you should see:

20 paired lung CT scan cases uploaded
Files organized in scans/ and lungMasks/ folders
All files stored with Snowflake Server-Side Encryption

Files in stage: 80

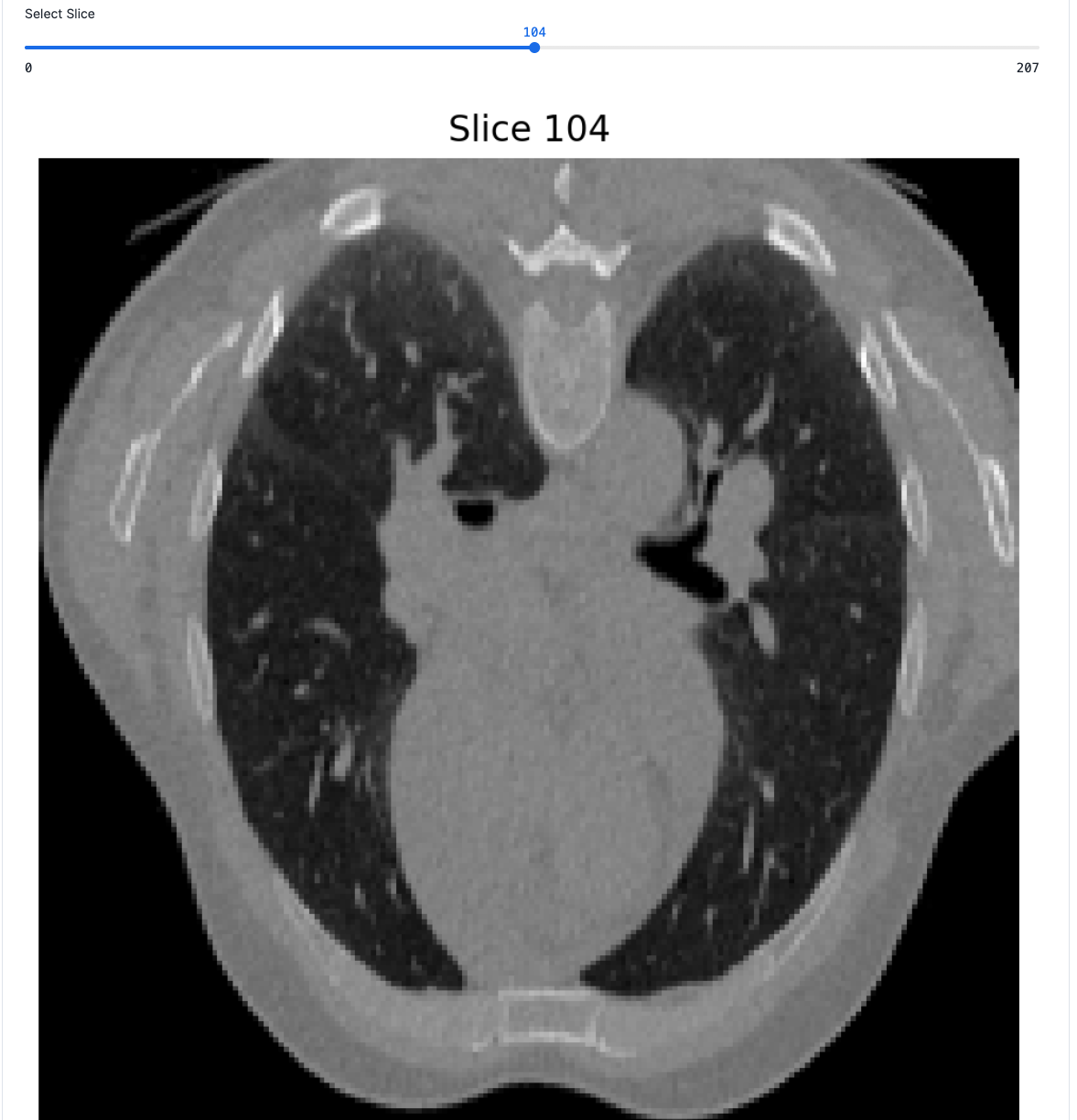

Dataset Details

Source: Paired Lung CT Dataset
Format: NIfTI (.nii.gz) 3D volumes
Contents: 20 cases with inspiration/expiration CT pairs and lung masks

Run Model Training Notebook

Step 1: Open the Training Notebook

Open 03_train_and_register.ipynb in your Jupyter environment.

Step 2: Update Configuration

Verify the configuration matches your setup:

CONNECTION_NAME = "monai-quickstart"
COMPUTE_POOL = "MONAI_GPU_POOL"

Step 3: Understand the Training Pipeline

The notebook executes these key steps:

Data Preparation: Split data into 16 training and 4 validation cases
Remote Training Job: Uses @remote decorator to run training on GPU compute pool
Training Loop: Trains LocalNet with Mutual Information + Bending Energy loss
Model Checkpointing: Saves best model weights to Snowflake stage
Model Registration: Logs the trained MONAI model natively to Snowflake Model Registry

Training Configuration

Parameter	Value	Description
`spatial_size`	(96, 96, 96)	Volume dimensions after resize
`batch_size`	2	Samples per batch
`max_epochs`	15	Training iterations
`learning_rate`	1e-4	Optimizer step size

Step 4: Run Training

Execute all cells. The training job will:

Submit to the GPU compute pool
Train for 15 epochs (~10-15 minutes depending on GPU availability)
Report validation Dice scores during training

Epoch 15/15: loss=X.XXXX, dice=0.8089
Training complete! Best Dice: 0.8089

Step 5: Model Registration

The notebook logs the model natively to Snowflake Model Registry:

mv = registry.log_model(
    model=model,
    model_name="MONAI_LUNG_CT_REGISTRATION",
    version_name="v1",
    sample_input_data=sample_input,
    pip_requirements=["monai>=1.3.0", "nibabel", "torch>=2.0.0"],
)

This registers the MONAI LocalNet model with:

Automatic signature inference from sample input
pip dependencies for runtime environment
Native PyTorch model serialization

Step 6: Verify Model Registration

Check the model signature:

Function: FORWARD
  Inputs: [('input_feature_0', (96, 96, 96)), ('input_feature_1', (96, 96, 96))]
  Outputs: [('output_feature_0', (96, 96, 96)), ('output_feature_1', (96, 96, 96)), ('output_feature_2', (96, 96, 96))]

Run Batch Inference Notebook

Step 1: Open the Inference Notebook

Open 04_batch_inference.ipynb in your Jupyter environment.

Step 2: Load Model from Registry

The notebook retrieves the trained model:

registry = Registry(session=session, database_name=DATABASE, schema_name=SCHEMA)
mv = registry.get_model("MONAI_LUNG_CT_REGISTRATION").version("v1")

Step 3: Prepare Batch Input

The notebook:

Downloads test images from the stage
Preprocesses each CT pair (normalization, resizing)
Creates a DataFrame with 3D volumetric arrays as input features

Step 4: Run Distributed Batch Inference

Execute batch inference on the GPU compute pool using the run_batch() API:

job = mv.run_batch(
    compute_pool="MONAI_GPU_POOL",
    X=batch_input_df,
    output_spec=OutputSpec(stage_location=BATCH_OUTPUT_STAGE),
)
job.wait()

This automatically:

Distributes inference across GPU nodes
Processes all cases in parallel
Writes results to the output stage

Step 5: Review Results

The notebook displays inference results:

Batch Inference Results
==================================================
case_001 -> 3_8e91864dace8496d9f32f5c745271cca_000000_000000-0.parquet
case_002 -> 3_8e91864dace8496d9f32f5c745271cca_000001_000000-0.parquet
...
==================================================
Total: 10 cases processed

Each output contains the deformation displacement field (DDF) with 3 channels (x, y, z displacements).

Cleanup

To remove all resources created by this guide:

In Snowsight, open a SQL worksheet
Run the following cleanup commands:

-- Drop compute pool first (requires stopping any running jobs)
ALTER COMPUTE POOL MONAI_GPU_POOL STOP ALL;
DROP COMPUTE POOL IF EXISTS MONAI_GPU_POOL;

-- Drop external access integrations
DROP INTEGRATION IF EXISTS PYPI_EAI;
DROP INTEGRATION IF EXISTS ZENODO_EAI;

-- Drop network rules
DROP NETWORK RULE IF EXISTS MONAI_QUICKSTART_DB.ML.PYPI_RULE;
DROP NETWORK RULE IF EXISTS MONAI_QUICKSTART_DB.ML.ZENODO_RULE;

-- Drop database (includes all schemas, stages, and models)
DROP DATABASE IF EXISTS MONAI_QUICKSTART_DB;

-- Drop warehouse
DROP WAREHOUSE IF EXISTS MONAI_WH;

-- Drop role
DROP ROLE IF EXISTS MONAI_USER;

Conclusion and Resources

Congratulations! You have successfully built a medical image registration pipeline using MONAI on Snowflake.

What You Learned

How to configure Snowflake GPU compute pools for deep learning workloads
How to use MONAI for medical image processing tasks
How to leverage Snowflake ML Jobs for GPU-accelerated training
How to log PyTorch/MONAI models natively to Snowflake Model Registry
How to run distributed batch inference with the run_batch() API
How to store and process medical images in Snowflake stages

Related Resources

Blog:

Medium: Distributed Medical Image Processing with MONAI

Snowflake Documentation:

MONAI Resources:

Dataset:

Paired CT Lung Dataset
